Remote setting / Subwoofer channel selection
Application examples
GZDSP 4.60ISO offers various system configurations. Here is a description of the two most common applications:
Front and rear speaker system
+ subwoofer (e.g. active sub)
2-way front system (active) +
+ subwoofer (e.g. active sub)
Channel
A/B
Front system at speaker output
High pass filter
HP: 50 – 80 Hz
Tweeter at speaker output
High pass filter
HP: 2500 – 4500 Hz
C/D
Rear system at speaker output
High pass filter
HP: 50 – 120 Hz
Midwoofer at speaker output
Bandpass filter
HP: 50 – 80 Hz
LP: 2500 – 4500 Hz
E /F
-
-
G/H
Subwoofer
Bandpass filter
HP: 10 – 30 Hz
LP: 50 – 80 Hz
Subwoofer
Bandpass filter
HP: 10 – 30 Hz
LP: 50 – 80 Hz
Note: The final crossover points depend on the speaker´s capacity that have been installed. The technical specifications
of the speakers will supply more information about possible applications and suggested crossover points.
Above, these are just noncommittal examples. Ground Zero will not be legally responsible for any kind of damage of
speakers or other components caused by wrong settings.

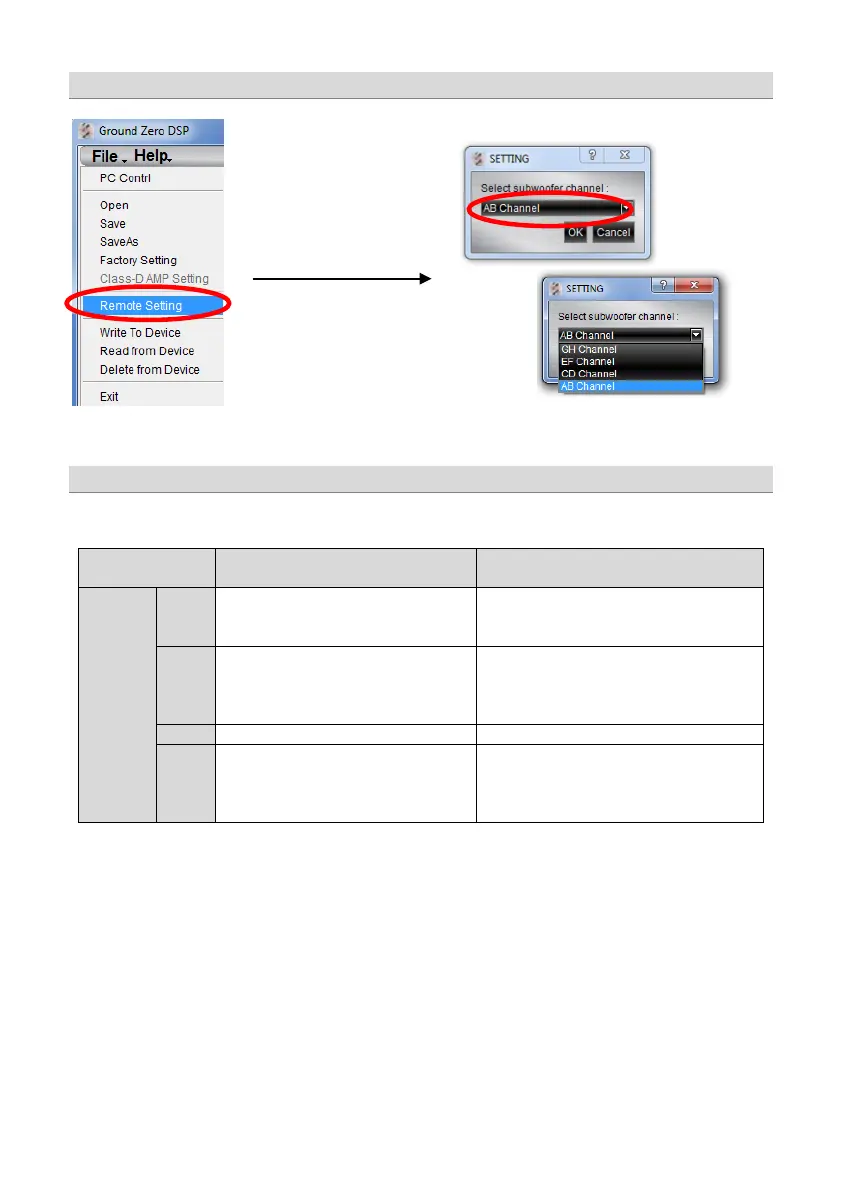

One pair of channels can
be selected as subwoofer
output. These two channels
are effected using the
subwoofer level control of
the optional remote control
unit.
The dropdown menu offers
the choice of four pairs of
channels to select from.
The setting is finished by
clicking
OK
as
confirmation.
