4
5

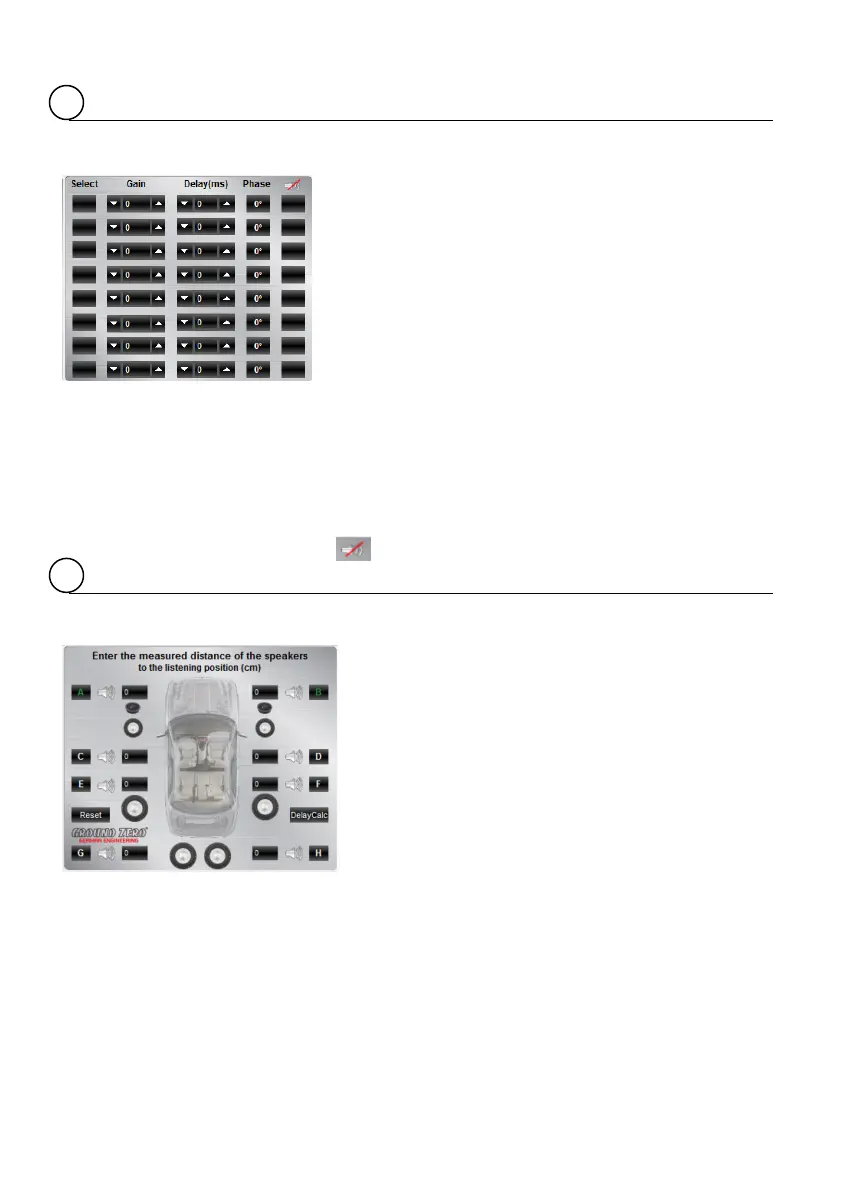

GAIN & DELAY
SPEAKER DISTANCE
Channel configuration (level adjustments and time alignment)
Select:
Marking the channel as
Select
ed allows grouping the respective
channels together for combined adjustments of
Gain
and
Delay
.
Gain:
To adjust the output level of the respective channel
Delay(ms)
:
To adjust the time alignment of the respective channel.
Will be displayed in milliseconds.
Warning:
It is recommended to fill in the measured distances of the
speakers to the listening position first
(5)
and realize detailed
fine-tuning later at the
Delay(ms)
Phase
– 0 / 180° Phase inversion of the respective channel
– Mutes the respective channel
Speaker distance entry
Before realizing the fine-tuning of each speaker´s time
alignment in window 4
Delay(ms)
, the measured distances of
all connected speakers should be added to the graphic.
The exact distance between listening position (head) and
cone center of each speaker must be measured.
The explanation of a correct implementation on the
following page can be used as an application example.
