Growatt SPF 3000TL LVM User Manual

14

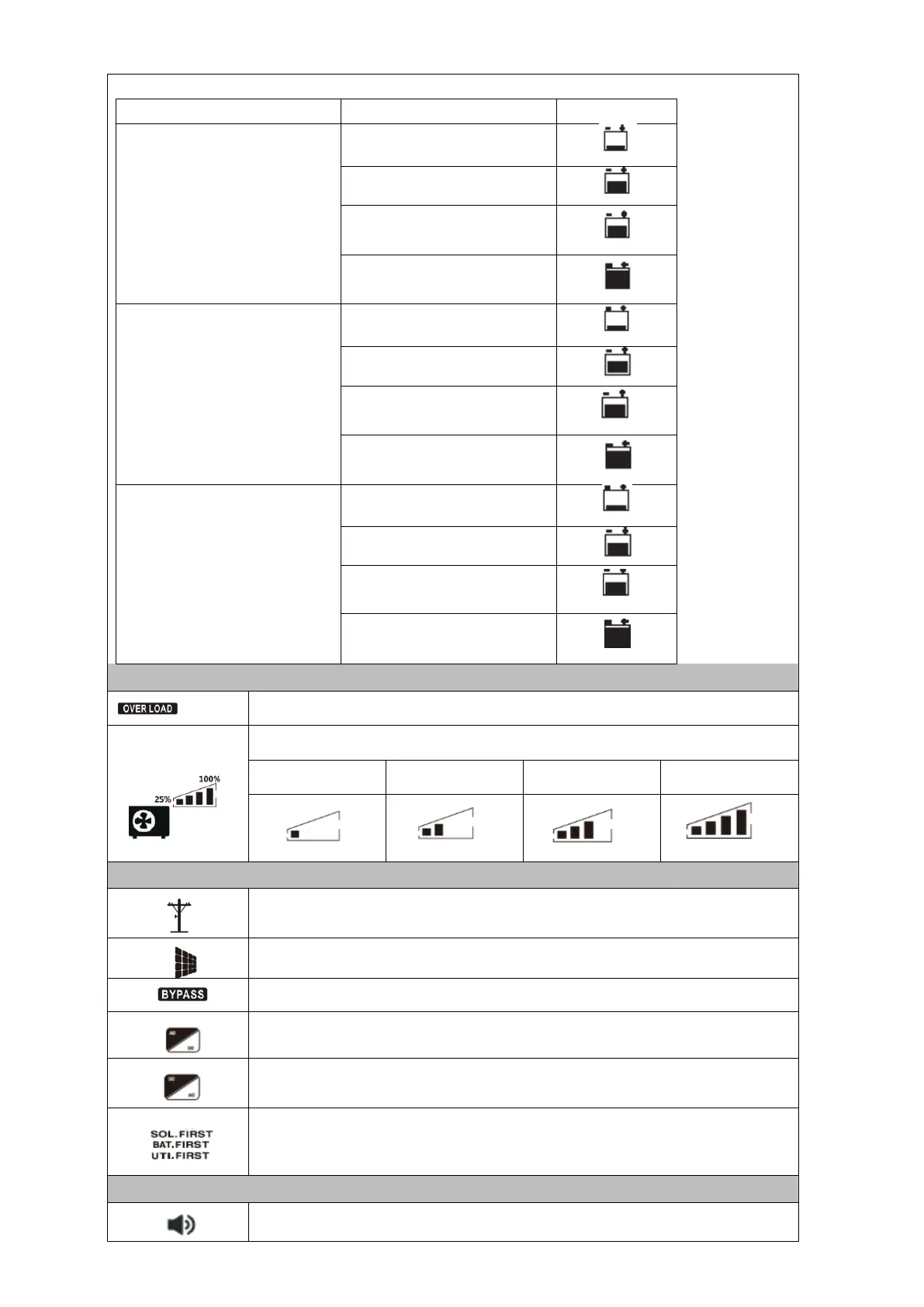

In battery mode, it will present battery capacity.
Load Percentage
Battery Voltage
LCD Display
Load >50%
< 1.717V/cell
1.717V/cell ~ 1.8V/cell
1.8 ~ 1.883V/cell
> 1.883 V/cell
50%> Load > 20%
< 1.817V/cell
1.817V/cell ~ 1.9V/cell
1.9 ~ 1.983V/cell
> 1.983
Load < 20%
< 1.867V/cell
1.867V/cell ~ 1.95V/cell
1.95 ~ 2.033V/cell
> 2.033
Load Information
Indicates overload.
Indicates the load level by 0-24%, 25-49%, 50-74% and 75-100%.
0%~24%
25%~49%
50%~74%
75%~100%
Mode Operation Information
Indicates unit connects to the mains.
Indicates unit connects to the PV panel.
Indicates load is supplied by utility power.
Indicates the utility charger circuit is working.
Indicates the DC/AC inverter circuit is working.
These three signs indicate the output priority. “SOL.FIRST” indicates solar
first. “BAT.FIRST” indicates battery first. “UTI.FIRST” indicates utility first.
Mute Operation
Indicates unit alarm is Enabled.

Growatt SPF 3000TL LVM Specifications

General

Model	SPF 3000TL LVM
Rated Power	3000W
Input Voltage	230 VAC
Output Voltage	230 VAC
Battery Voltage	24 VDC
Max PV Input Voltage	145VDC
Max Charging Current	80A
Peak Efficiency	93%
Output Frequency	50 Hz/60 Hz
Dimensions	330 x 485 x 135 mm
Battery Type	Lead-acid or Lithium
Communication	RS232
MPPT Voltage Range	30-115VDC
