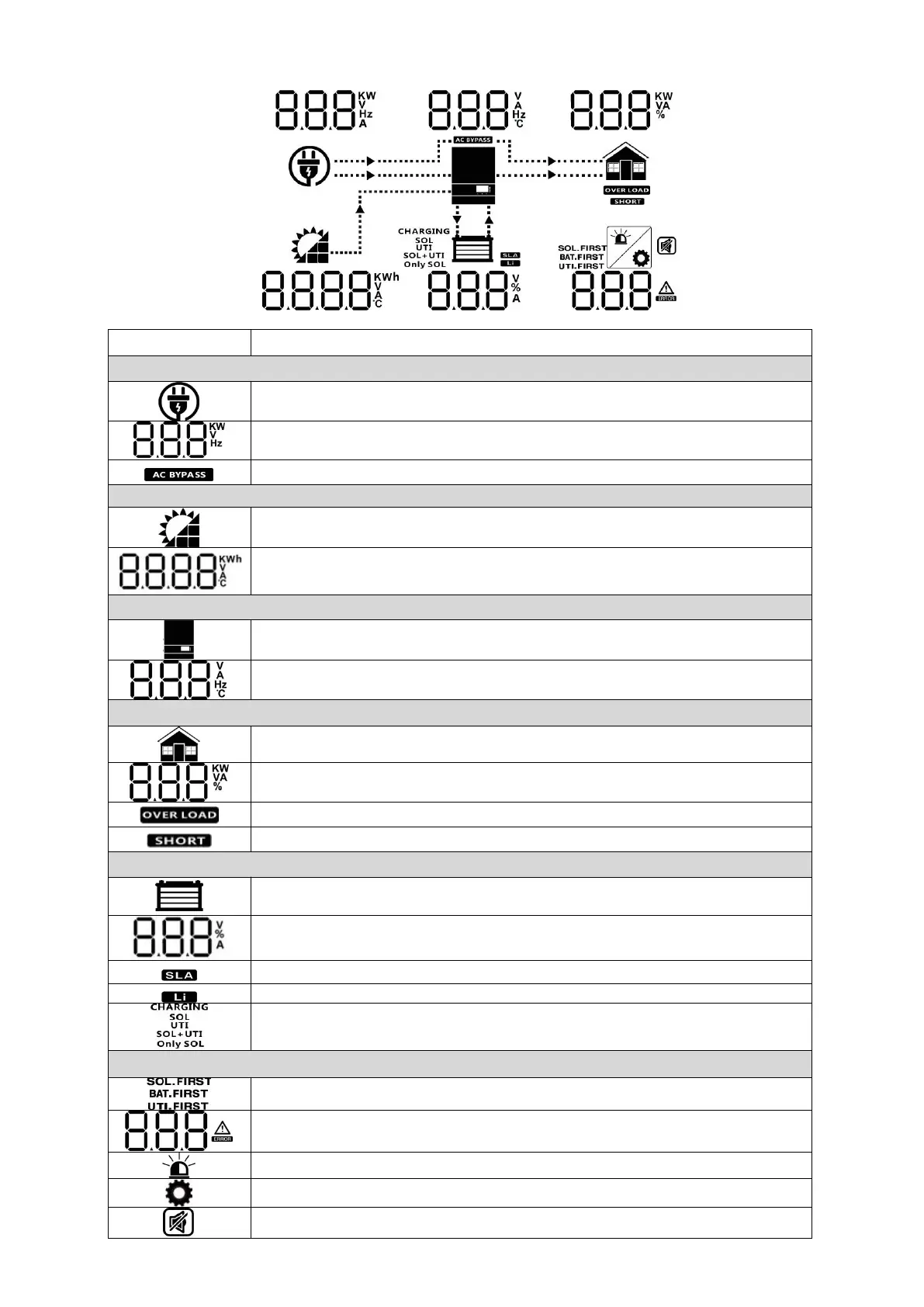

4.2.1 LCD Display Icons
Icon
Description
AC Input Information
AC input icon
Indicate AC input power, AC input voltage, AC input frequency, AC input
current
Indicate AC power loads in bypass
PV Input Information
PV input icon
Indicate PV power, PV voltage, PV current, etc
Output Information
Inverter icon
Indicate output voltage, output current, output frequency, inverter
temperature
Load Information
Load icon
Indicate power of load, power percentage of load
Indicate overload happened
Indicate short circuit happened
Battery Information
Indicate battery level by 0-24%, 25-49%, 50-74% and 75-100% in battery
mode and charging status in line mode.
Indicate battery voltage, battery percentage, battery current
Indicate SLA battery
Indicate lithium battery
Indicate charging source priority: solar first, utility first, solar and utilty, or only
solar
Other Information
Indicate output source priority: solar first, utility first, or SBU mode
Indicate warning code or fault code
Indicate a warning or a fault is happening
Indicate it’s during setting values
Indicate the alarm is disabled

Growatt SPF 5000TL HVM-WPV Specifications

General

Model	SPF 5000TL HVM-WPV
Category	Inverter
Rated Power	5000W
Max PV Input Power	6000W
Number of MPPT Trackers	2
AC Output Voltage	230V
AC Output Frequency	50/60Hz
Battery Voltage	48V
Max Charging Current	100A
Max Discharging Current	100A
Protection Degree	IP20
Cooling Method	Fan Cooling
Peak Efficiency	93%
Max PV Input Voltage	450V
Communication	USB
Operating Temperature Range	-10°C to +50°C
Dimensions	330 x 485 x 135 mm
