3.0 Installation
3.1 Unpacking and Inspection
Before installation, please inspect the unit. Be sure that nothing inside the package is damaged. You should
have received the following items in the package:
The unit x 1
User manual x 1
Communication cable x 1
Software CD x 1
Preparation
Before connecting all wiring, please take off bottom cover by removing two screws as shown below.
3.2 Mounting the Unit
Consider the following points before selecting where to install:
Do not mount the inverter on flammable construction
materials.
Mount on a solid surface
Install this inverter at eye level in order to allow the LCD
display to be read at all times.
The ambient temperature should be between 0°C and 55°C
to ensure optimal operation.
The recommended installation position is to be adhered to
the wall vertically.

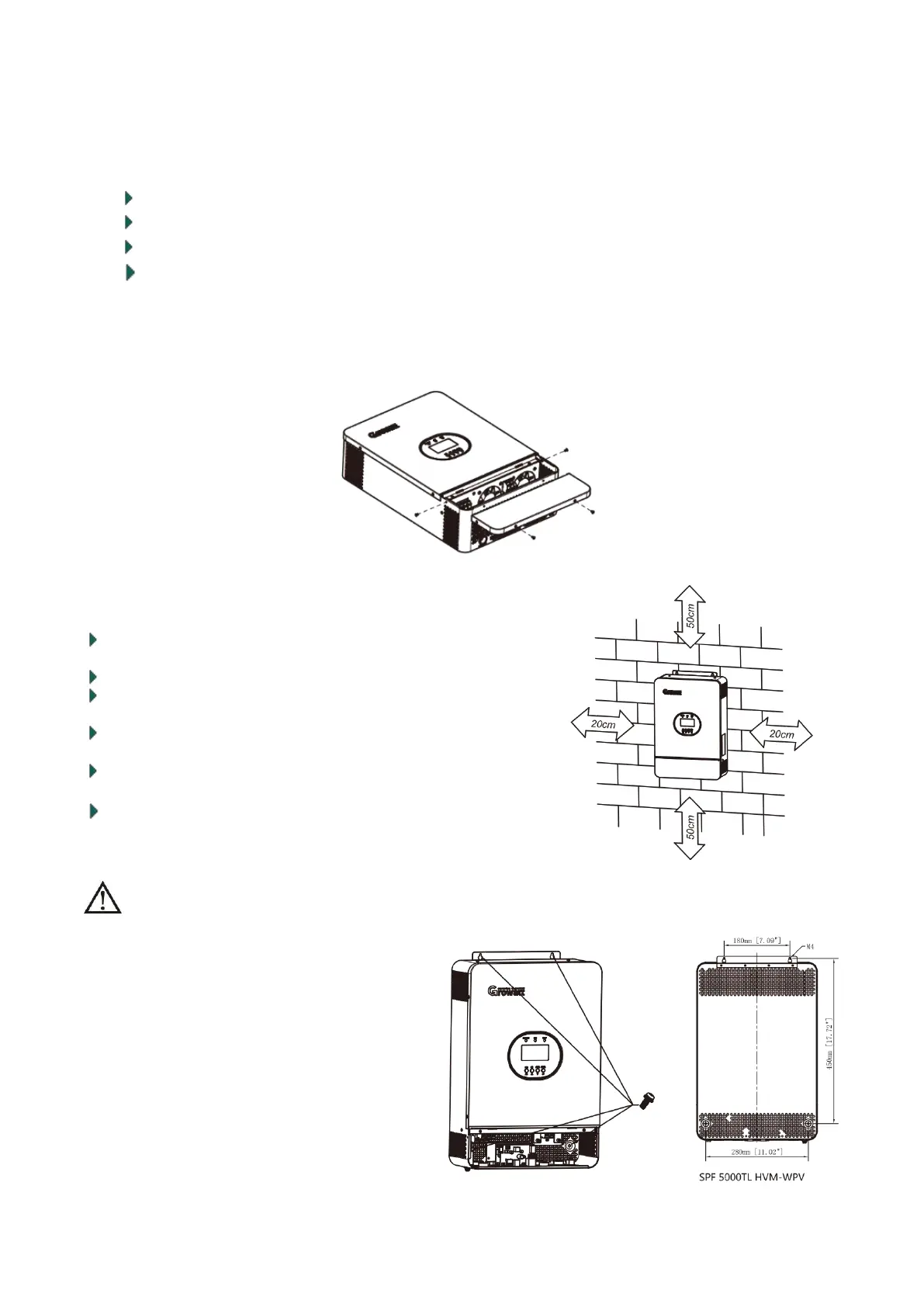

Be sure to keep other objects and surfaces as shown in the
right diagram to guarantee sufficient heat dissipation and
to have enough space for removing wires.
SUITABLE FOR MOUNTING ON CONCRETE OR
OTHER NON-COMBUSTIBLE SURFACE ONLY.
Install the unit by screwing three screws.
It’s recommended to use M4 or M5 screws.

Growatt SPF 5000TL HVM-WPV Specifications

General

Model	SPF 5000TL HVM-WPV
Category	Inverter
Rated Power	5000W
Max PV Input Power	6000W
Number of MPPT Trackers	2
AC Output Voltage	230V
AC Output Frequency	50/60Hz
Battery Voltage	48V
Max Charging Current	100A
Max Discharging Current	100A
Protection Degree	IP20
Cooling Method	Fan Cooling
Peak Efficiency	93%
Max PV Input Voltage	450V
Communication	USB
Operating Temperature Range	-10°C to +50°C
Dimensions	330 x 485 x 135 mm
