Growatt SPF 5000TL HVM-WPV User Manual

22
5.0 Parallel Installation Guide
5.1 Introduction
This inverter can be used in parallel with two different operation modes.
1. Parallel operation in single phase with up to 6 units.
2. Maximum 6 units work together to support 3-phase equipment. Four units support one phase maximum.
NOTE: If the package includes share current cable and parallel cable, the inverter is default supported parallel
operation. You may skip section 3. If not, please purchase parallel kit and install this unit by following
instruction from professional technical personnel in local dealer.

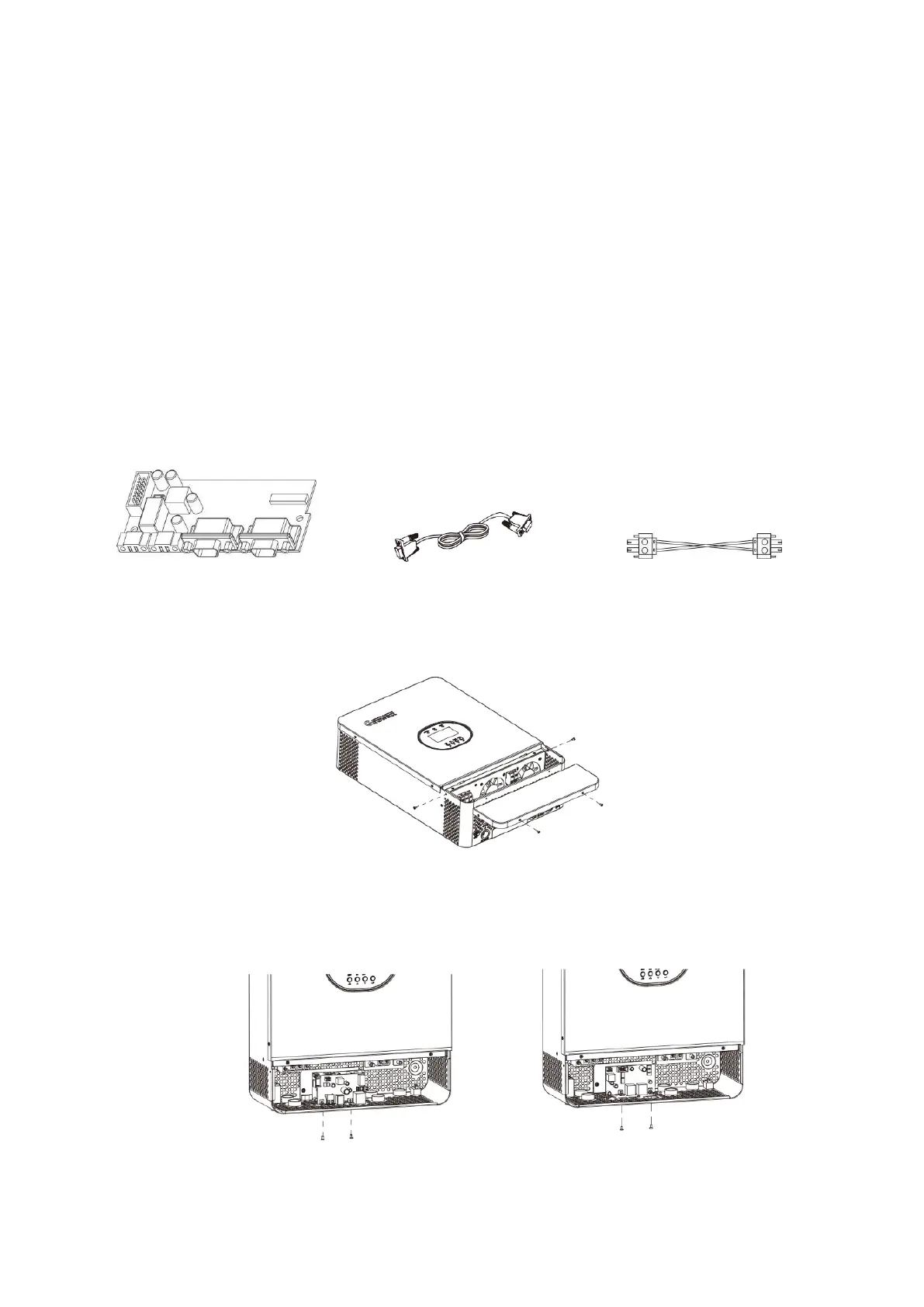

Package Contents
In parallel kit, you will find the following items in the package:
Parallel board Parallel communication cable Current sharing cable
5.2 Parallel Board Installation
Step 1: Remove wire cover by unscrewing all screws.
Step 2: Remove WiFi/GPRS communication board and CAN/RS485 communication board by unscrewing
screws as below chart.

Growatt SPF 5000TL HVM-WPV Specifications

General

Model	SPF 5000TL HVM-WPV
Category	Inverter
Rated Power	5000W
Max PV Input Power	6000W
Number of MPPT Trackers	2
AC Output Voltage	230V
AC Output Frequency	50/60Hz
Battery Voltage	48V
Max Charging Current	100A
Max Discharging Current	100A
Protection Degree	IP20
Cooling Method	Fan Cooling
Peak Efficiency	93%
Max PV Input Voltage	450V
Communication	USB
Operating Temperature Range	-10°C to +50°C
Dimensions	330 x 485 x 135 mm
