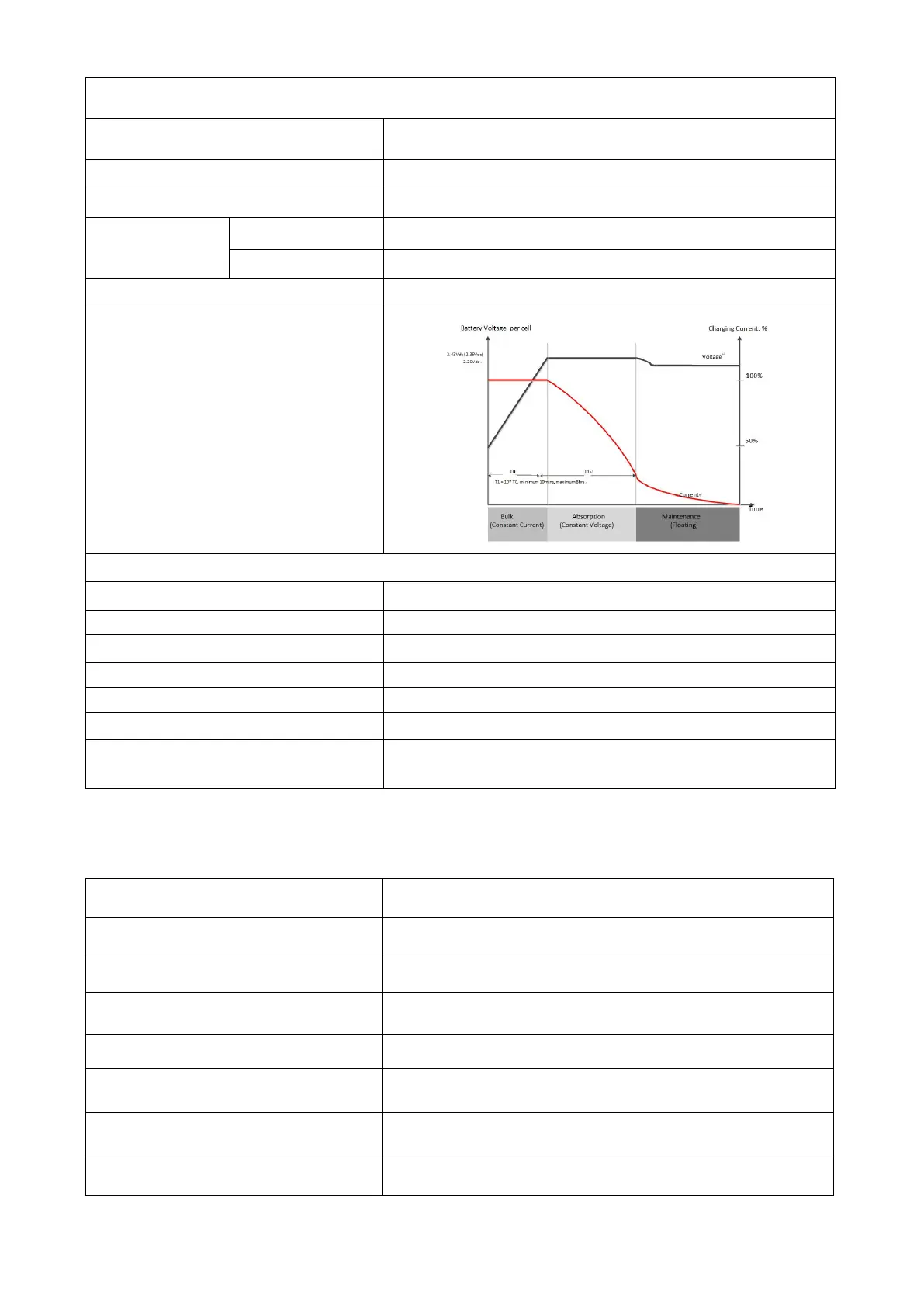

Growatt SPF 5000TL HVM-WPV User Manual

37
Table 3 Charge Mode Specifications
Utility Charging Mode
INVERTER MODEL
SPF 5000TL HVM-WPV
Charging Algorithm
3-Step
Max. AC Charging Current
80Amp(@V
I/P
=230Vac)
Bulk Charging
Voltage
Flooded Battery
58.4Vdc
AGM / Gel Battery
56.4Vdc
Floating Charging Voltage
54Vdc
Charging Curve
MPPT Solar Charging Mode
Max. PV Array Power
5500W
Nomal PV Voltage
320Vdc
Start-up Voltage
100Vdc
±
10Vdc
PV Array MPPT Voltage Range
120Vdc~430Vdc
Max. PV Array Open Circuit Voltage
450Vdc
Max. PV Charging Current
100A
Max. Charging Current
(AC Charger Plus Solar Charger)
100A
Table 4 General Specifications
INVERTER MODEL
SPF 5000TL HVM-WPV
Safety Certification
CE
Operating Temperature Range
0°C to 55°C
Storage temperature
-15°C~ 60°C
Humidity
5% to 95% Relative Humidity (Non-condensing)
Altitude
<2000m
Dimension(D*W*H), mm
485 x 330 x 135
Net Weight, kg
12

Growatt SPF 5000TL HVM-WPV Specifications

General

Model	SPF 5000TL HVM-WPV
Category	Inverter
Rated Power	5000W
Max PV Input Power	6000W
Number of MPPT Trackers	2
AC Output Voltage	230V
AC Output Frequency	50/60Hz
Battery Voltage	48V
Max Charging Current	100A
Max Discharging Current	100A
Protection Degree	IP20
Cooling Method	Fan Cooling
Peak Efficiency	93%
Max PV Input Voltage	450V
Communication	USB
Operating Temperature Range	-10°C to +50°C
Dimensions	330 x 485 x 135 mm
