Growatt SPH3600 User Manual

1413
Chart 5.4
Chart 5.3

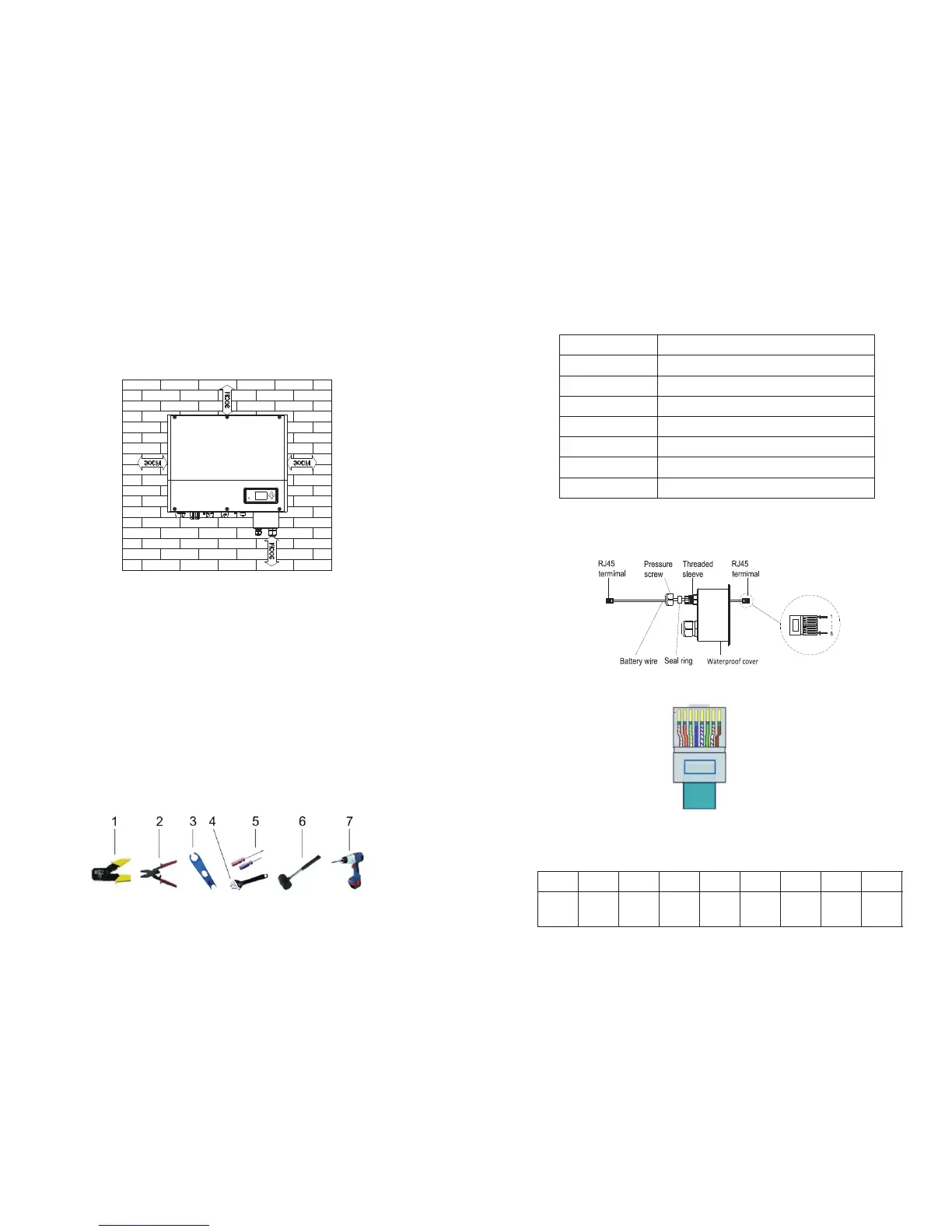

5.2 Installation requires tools and RJ 45 terminal sequence
of the LAN line
H. Installation position shall not prevent access to the disconnection means.
I. In order to ensure machine can run normally and easy to operate, please pay
attention to provide adequate space for SPH, Please refer to below:
J. Do not install the machine near television antenna or any other antennas and
antenna cables
K. Don't install the machine in the living area
L. Be sure that the machine is out of the children's reach
M. Taking the battery fixing space into account, about the dimensions please
reference user manual
N. The Inflammable and explosive dangerous goods must not be placed around
battery in case of cause serious danger.
When installing，we need to use tools as follow，prepare the follow tools before
installing：
No
1
2
3
4
5
6
7
Description
Press the RJ45 terminal
Press battery terminal connector
Disconnect PV terminal
Unscrew nut
Unscrew screw
Knock explosion bolt
Drill holes on the wall
LAN line RJ45 sequence as follow：
Chart 5.5
Chart 5.6
PIN 1 2 3 4 5 6 7 8
color
White
orange
Orange
White
green
Blue
White
blue
green
White
brown
brown
LAN line 1-8 colors as below:

Growatt SPH3600 Specifications

General

Model	SPH3600
Type	Hybrid Inverter
Rated Power	3600 W
Max PV Input Voltage	550 V
Number of MPPTs	2
Max Input Current per MPPT	11 A
Nominal DC Voltage	360 V
Nominal AC Power	3600 W
Max AC Current	16 A
Nominal AC Voltage	230 V
AC Voltage Range	180-280V
Nominal Grid Frequency	50/60 Hz
THDi	<3%
Max Efficiency	97.5%
DC Switch	Yes
Protection Degree	IP65
Battery Voltage Range	42 V - 59 V
Communication Interfaces	RS485, WiFi
Max AC Power	3600W
Euro Efficiency	97.0%
Operating Temperature Range	-25°C to +60°C
Cooling	Natural Convection
