Growatt SPH3600 User Manual

11 12

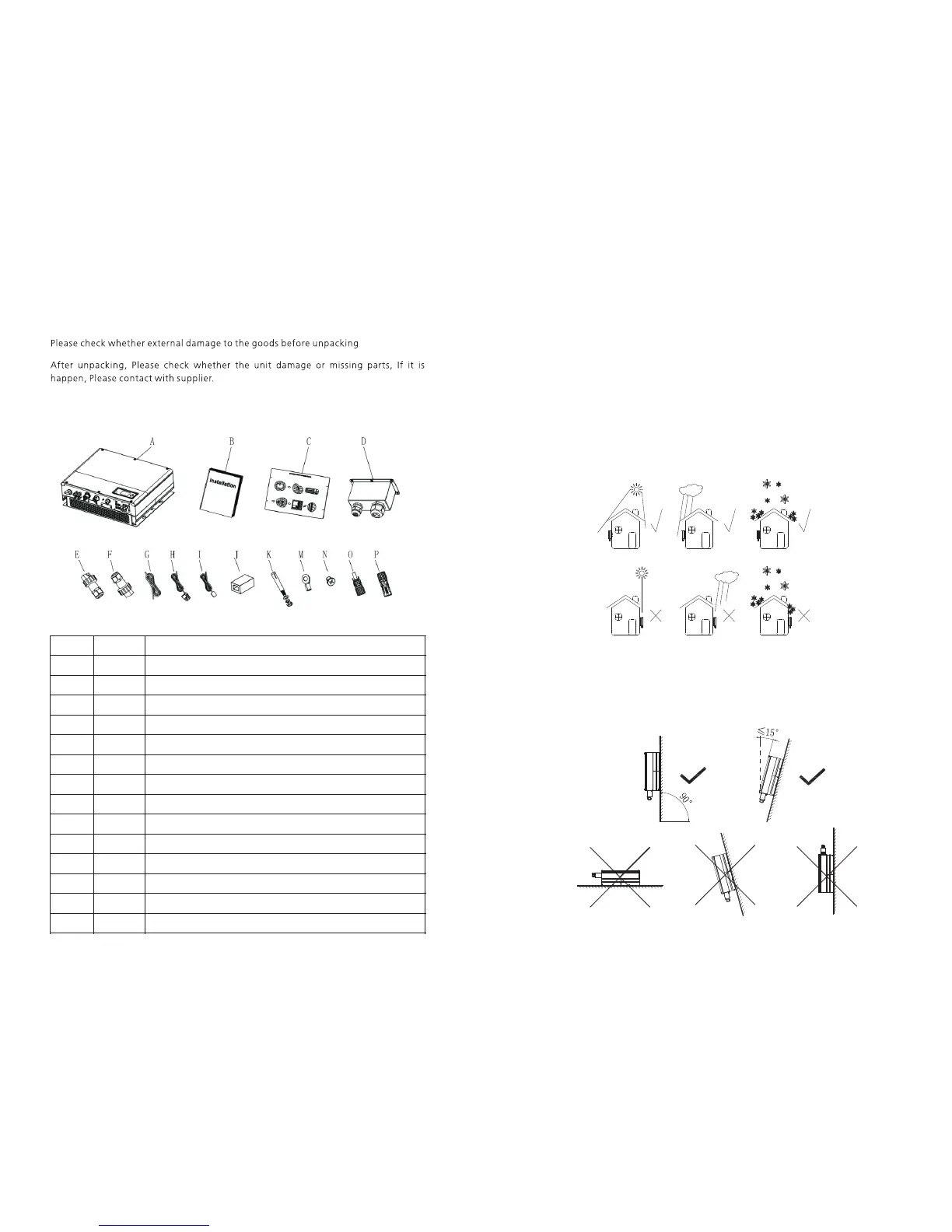

Unpacking4
Growatt SPH series and accessories as follows:
1
1
1
1
1
1
1
1
1
1
4
2
6
2/2
SPH inverter
User Manual
Paper board(installation guide)
Waterproof cover
AC Grid connector
EPS output connector
Communication cable
Current sensor
Lead-acid battery temperature sensor
RJ45 connector
M6 setscrew
Battery power terminal
Screw
MC4 connector
A
B
C
D
E
F
G
H
I
J
K
M
N
O/P
Item
Number Description
Chart 4.1
Installation 5
5.1 Basic installation requirements
Chart 5.2
E. Battery installation option is not far away from the position of SPH, the length
between SPH and battery should not be more than 1.5m.
F. The ambient temperature should be -25℃ ~ 60 ℃
G. SPH can be installed in vertical or lean back on plane, Please refer to the below
A. The installation location must be suitable for SPH's weight for a long period time
B. The installation location must conforms with dimension of SPH
C. Do not install the unit on structures constructed of flammable or thermo labile
materials
D. The Ingress Protection rate is IP65 and the pollution degree is PD2. Please refer to
the below:
Chart 5.1

Growatt SPH3600 Specifications

General

Model	SPH3600
Type	Hybrid Inverter
Rated Power	3600 W
Max PV Input Voltage	550 V
Number of MPPTs	2
Max Input Current per MPPT	11 A
Nominal DC Voltage	360 V
Nominal AC Power	3600 W
Max AC Current	16 A
Nominal AC Voltage	230 V
AC Voltage Range	180-280V
Nominal Grid Frequency	50/60 Hz
THDi	<3%
Max Efficiency	97.5%
DC Switch	Yes
Protection Degree	IP65
Battery Voltage Range	42 V - 59 V
Communication Interfaces	RS485, WiFi
Max AC Power	3600W
Euro Efficiency	97.0%
Operating Temperature Range	-25°C to +60°C
Cooling	Natural Convection
