Growatt SPH3600 User Manual

15 16
5.3.2 Installation of SPH
1.Project the machine's probably size on the wall; the thickness of wall for SPH must
be not less than 60mm.
Make sure the drill position, use paper board(installation guide), put the paper
board cling to the wall, make sure the top edge of paper board is level（As the chart
5.8a below）.
Mark four points at the wall via the hole of the paper board, then remove the paper
board
Drill four Ф8 holes at the mark point, the depth is not less than 55mm
Knock four explosion bolt intoФ8 holes（As the chart 5.8b below）
2.
3.
.
4. .
5. .
6.Hang the energy storage machine on the four setscrews（As the chart 5.8c
below）
7.Lock the nut of setscrew（As the chart 5.8d below）
8.The whole installation has finished
a)
Chart 5.7
5.3 Installation Instructions
5.3.1 Attention Layout（length of sensors consider）
There're three types of sensors for use with Growatt SPH. one is wired current sensor,
one is meter sensor, or SP-CT, if you choose wired sensor or meter . Before installing
you should know something that as below:
The cable of wired sensor and meter is suggested not longer than 15m. so you need
to consider the length between SPH with combiner box for the sensor should be
installed in the live line. And if you installed SP-CT for sensor, Distance recommended
not more than 30 meters.

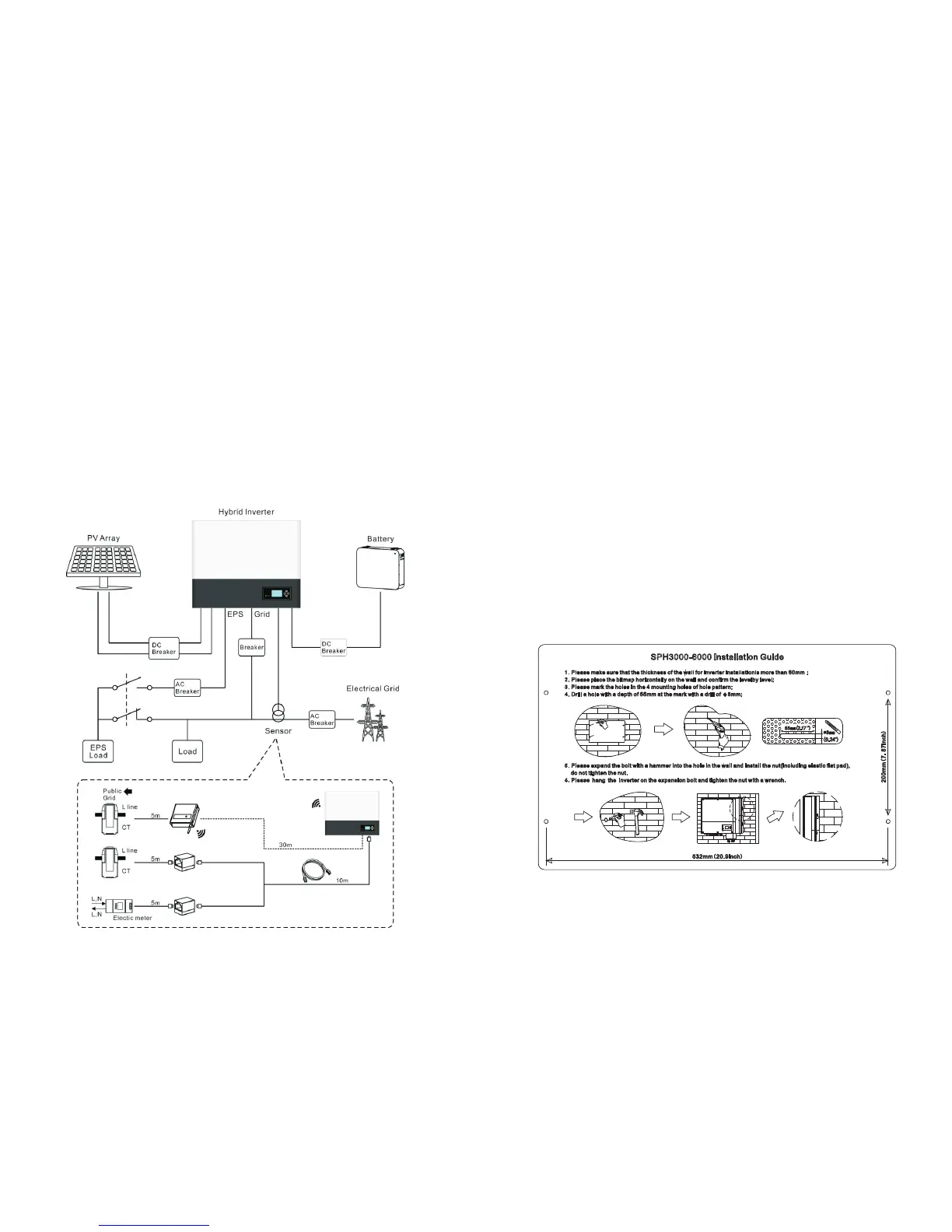

The installation layout of energy storage machine at home as following：

Growatt SPH3600 Specifications

General

Model	SPH3600
Type	Hybrid Inverter
Rated Power	3600 W
Max PV Input Voltage	550 V
Number of MPPTs	2
Max Input Current per MPPT	11 A
Nominal DC Voltage	360 V
Nominal AC Power	3600 W
Max AC Current	16 A
Nominal AC Voltage	230 V
AC Voltage Range	180-280V
Nominal Grid Frequency	50/60 Hz
THDi	<3%
Max Efficiency	97.5%
DC Switch	Yes
Protection Degree	IP65
Battery Voltage Range	42 V - 59 V
Communication Interfaces	RS485, WiFi
Max AC Power	3600W
Euro Efficiency	97.0%
Operating Temperature Range	-25°C to +60°C
Cooling	Natural Convection
