Growatt SPH3600 User Manual

1 Brief Introduction
1.1 Preface
This manual will provide the users who use the Growatt SPH Series of GROWATT NEW
ENERGY TECHNOLOGY CO.LTD.SHENZHEN(Short for Growatt New Energy as below)
with the detailed product information and the installation instructions. Please read
this manual carefully and put this manual on some place where is convenient to
installation, operation, obtain. Any modifications of Growatt new energy, we will not
notify the user.
Growatt SPH inverter must be installed by professional electrical personnel who have
obtained the certification of the relevant departments. We have two kinds of energy
storage machine for different battery one is for lithium battery and the other is for
lead-acid battery, we suggest: customer should decide which kind of energy storage
machine you want, Growatt can provide only lithium battery with energy storage
machine, customer can choose lead-acid energy storage machine with no battery
provide by Growatt while they can buy these battery from market easily. Especially if
customer choose energy storage system with lithium battery(which must be provide
by Growatt) but used for lead-acid battery or used lead-acid battery for lithium
battery model, it will be dangerous. Installer can install energy storage machine of
Growatt SPH Series rapidly and troubleshooting, build communication system
through read this manual carefully. If you have any questions in the process of
installation, you can login in and leave some message. Or you can
call our 24-hour service hotline +86 0755 2747 1942/400-931-3122.
www.growatt.com
Growatt SPH Series is used to store energy generated by the photovoltaic cell panels
or energy from grid if it is allowed in the battery, also energy can be sent to power
grid through SPH for self consumption or when Grid power is lost, SPH can be used as
back up power.
SPH series has six kinds of type:
•Growatt SPH3000
•Growatt
Note: In different country,we provide different power.Such as in Germany,we can
provide SPH3000~SPH4600,but we don’t provide SPH5000 and SPH6000.
SPH3600
•Growatt SPH4000
•Growatt SPH4600
•Growatt SPH5000
•Growatt SPH5600
Note: we describe this series as “SPH” as below.
1.3 Product Description
2
1.2 Target Group

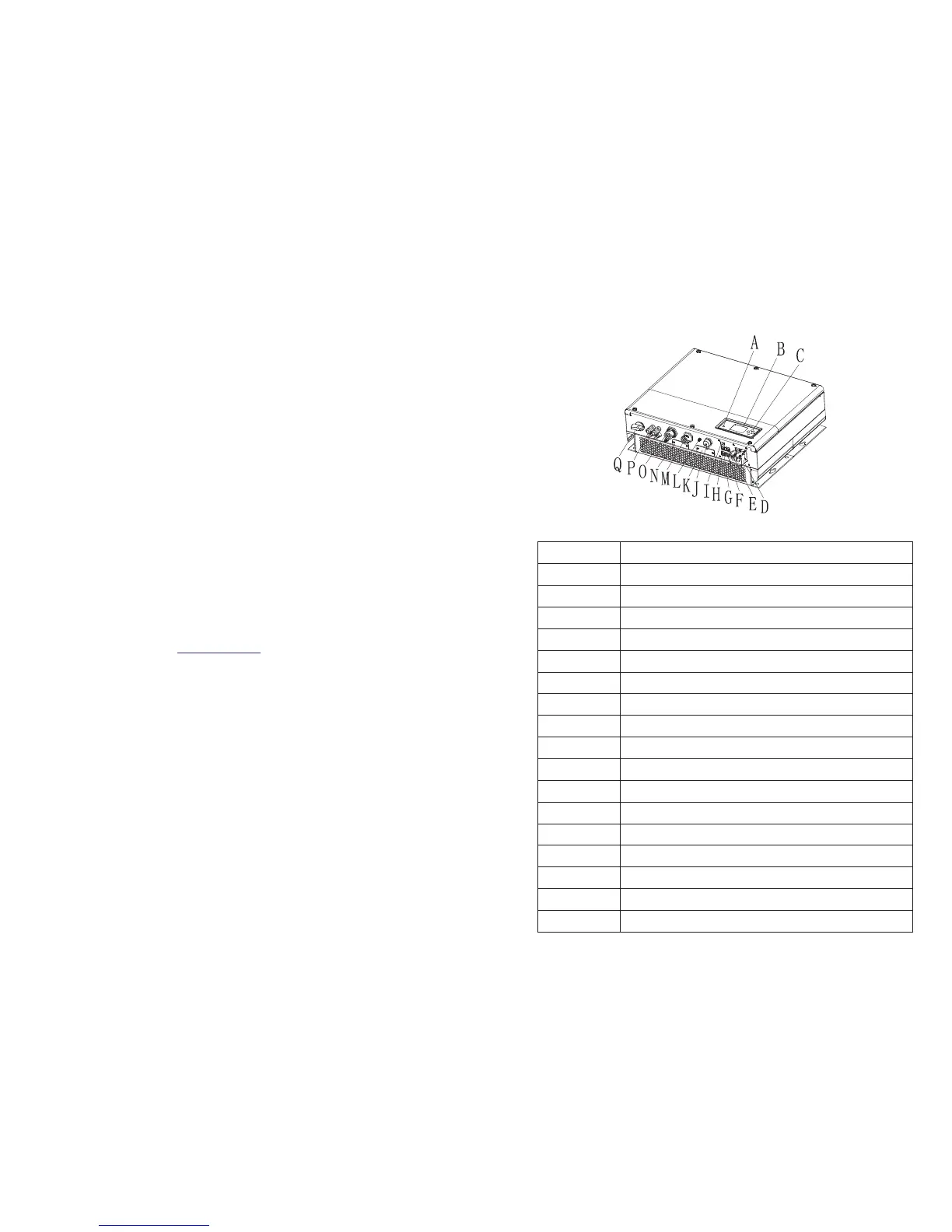

Overview:
1
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
LED of status display
LCD screen
Function button
Battery terminal
NTC:Lead-acid temperature sensor terminal
RJ45 interface of DRMs(used only in Australia)
CT/meter input terminal
RS485 communication interface of Lithium battery
DIP switch(set safety standard)
USB interface
RS232/Wi-Fi cover board
Ground point
AC Grid (on grid connection)
RSD(do not open except by Professional staff)
EPS output(off grid connection)
PV input
Position
Description
Chart 1.1
Q
PV switch

Growatt SPH3600 Specifications

General

Model	SPH3600
Type	Hybrid Inverter
Rated Power	3600 W
Max PV Input Voltage	550 V
Number of MPPTs	2
Max Input Current per MPPT	11 A
Nominal DC Voltage	360 V
Nominal AC Power	3600 W
Max AC Current	16 A
Nominal AC Voltage	230 V
AC Voltage Range	180-280V
Nominal Grid Frequency	50/60 Hz
THDi	<3%
Max Efficiency	97.5%
DC Switch	Yes
Protection Degree	IP65
Battery Voltage Range	42 V - 59 V
Communication Interfaces	RS485, WiFi
Max AC Power	3600W
Euro Efficiency	97.0%
Operating Temperature Range	-25°C to +60°C
Cooling	Natural Convection
