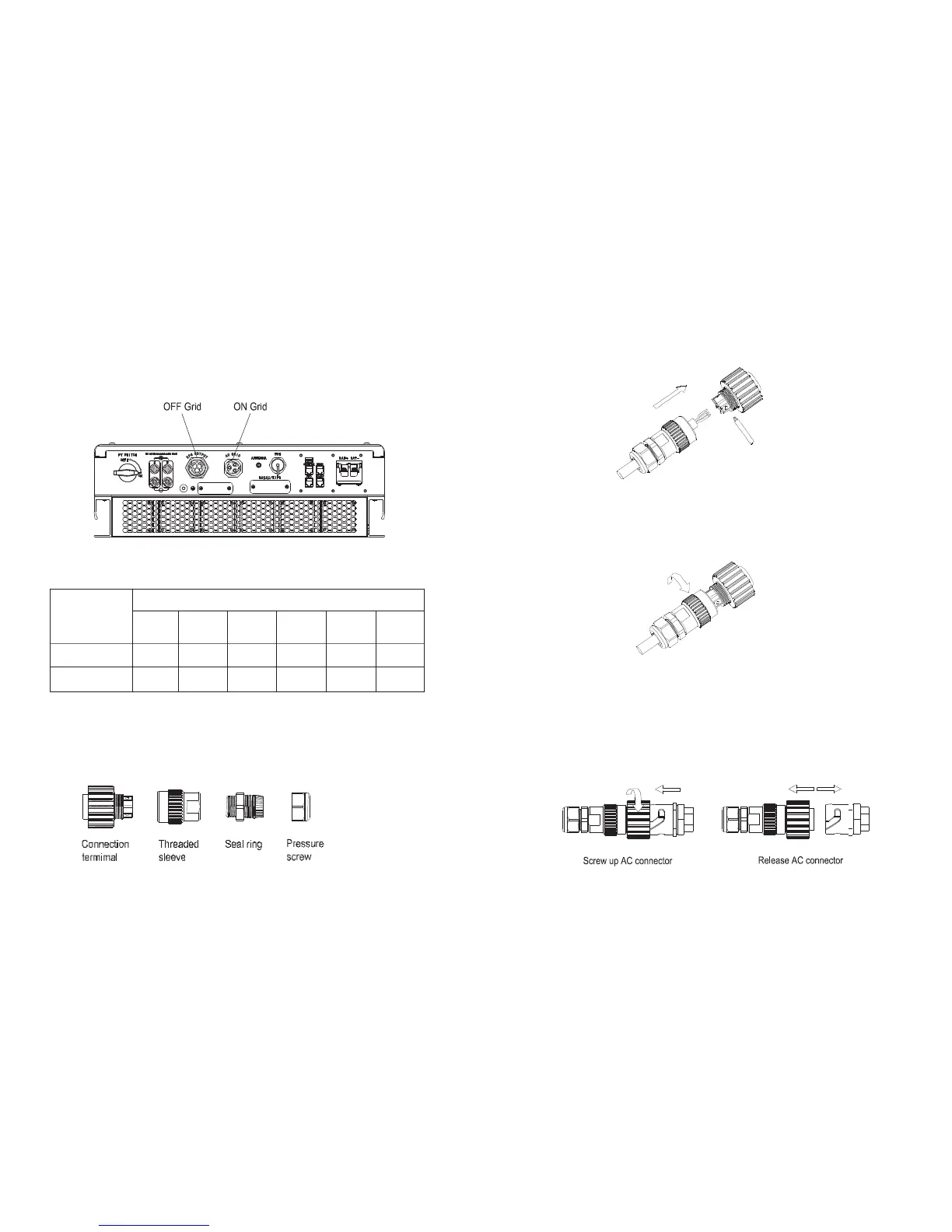

5.4.2 Connection of AC terminal and off grid terminal
SPH has a grid output terminal and off grid out terminal,look down on the SPH from
the front,the terminal on the left (on grid) is grid outlet for connecting grid,the
terminal on the right is an emergency power outlet for connecting critical load.
Chart 5.10
wire suggest length:
AC output terminal connection steps as follow：
Chart 5.11
Step1: Uninstall the AC terminal as above chart.
Chart 5.12
Step 2: Thread cables through pressure screw, seal ring, threaded sleeve in sequence,
insert cables into connection terminal according to polarities indicates on it and
tighten the screws.
Chart 5.13
Step 3:Push threaded sleeve on to connection terminal until both are locked tightly
max cable length
conductor cross
section
5.2mm 10AWG
2
6.6mm 9AWG
2
Growatt
SPH3000
Growatt
SPH3600
Growatt
SPH4000
Growatt
SPH4600
Growatt
SPH5000
Growatt
SPH6000
40m 33m
50m 42m
28m
36m
26m
25m
33m 32m
23m
29m
Chart 5.14

Growatt SPH3600 Specifications

General

Model	SPH3600
Type	Hybrid Inverter
Rated Power	3600 W
Max PV Input Voltage	550 V
Number of MPPTs	2
Max Input Current per MPPT	11 A
Nominal DC Voltage	360 V
Nominal AC Power	3600 W
Max AC Current	16 A
Nominal AC Voltage	230 V
AC Voltage Range	180-280V
Nominal Grid Frequency	50/60 Hz
THDi	<3%
Max Efficiency	97.5%
DC Switch	Yes
Protection Degree	IP65
Battery Voltage Range	42 V - 59 V
Communication Interfaces	RS485, WiFi
Max AC Power	3600W
Euro Efficiency	97.0%
Operating Temperature Range	-25°C to +60°C
Cooling	Natural Convection
