Growatt SPH3600 User Manual

37 38

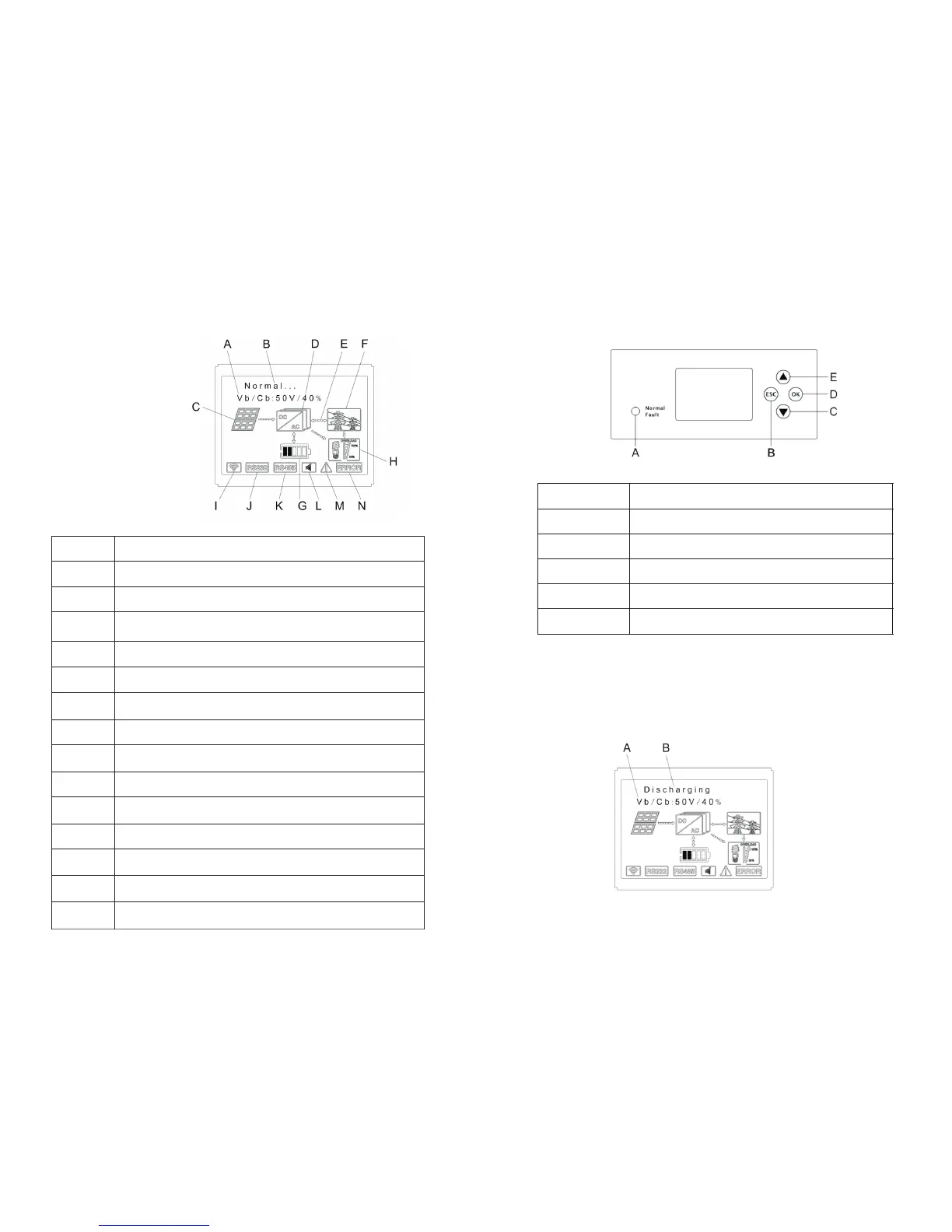

6.4 Display and button
6.4.1 LCD display area
Chart 6.2
location
Description
A
information
B
state
C
D
SPH inverter
E
Power flow line
F
Grid
G
H
Local load
I
Wireless communication
J
Rs232
K
Rs485
L
Buzzer(Reserved)
M
warning
N
fault
PV input (if you connect two tracks, it will show two.
Otherwise show one)
Battery (show the SOC in five grid, Every grid represents 20%)
6.4.2 LED and button instruction
Chart 6.3
location
Status
ESC- button(cancel control)
Down-button
Enter-button
UP-button
A
B
C
D
E
description
Notice：LED showing status of SPH, it has two color, one is green and another is red. Please
turn to 3.1 and read the detail of LED.
6.4.3 LCD display column
LCD display column is used to show the current state, basic information and fault information.
Also include language setting, program charging/discharging priority and system time. On
default condition will take turns to display the information.
Chart 6.4

Growatt SPH3600 Specifications

General

Model	SPH3600
Type	Hybrid Inverter
Rated Power	3600 W
Max PV Input Voltage	550 V
Number of MPPTs	2
Max Input Current per MPPT	11 A
Nominal DC Voltage	360 V
Nominal AC Power	3600 W
Max AC Current	16 A
Nominal AC Voltage	230 V
AC Voltage Range	180-280V
Nominal Grid Frequency	50/60 Hz
THDi	<3%
Max Efficiency	97.5%
DC Switch	Yes
Protection Degree	IP65
Battery Voltage Range	42 V - 59 V
Communication Interfaces	RS485, WiFi
Max AC Power	3600W
Euro Efficiency	97.0%
Operating Temperature Range	-25°C to +60°C
Cooling	Natural Convection
