6.5.2 Use of RS232 port
RS232 port is mainly used for monitoring connection with PC, users can monitor ,set
parameters and update the software of the machine through RS232 connection with
machine and PC, using the shinebus software developed by Growatt.
About ShineBus software, when you needed, please download from official website
of Growatt.
About ShineBus software, when you needed, please download from official website
of Growatt.

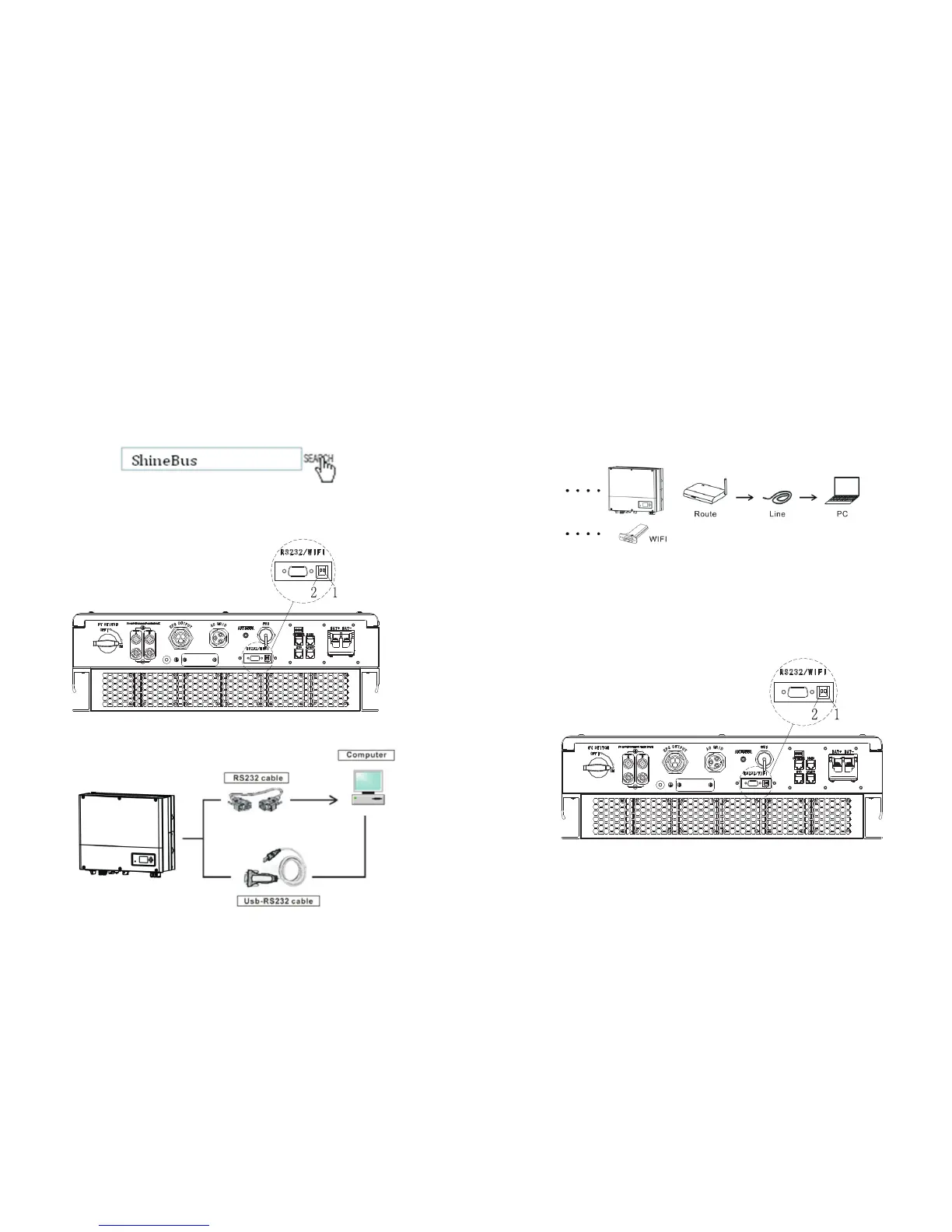

Chart 6.13
Before use RS232 communication, you should make sure the follow PIN1 and PIN2
are OFF:
Chart 6.14
The wiring diagram is as follows:
Chart 6.15
6.5.3 The SPH's monitoring
The SPH provide RS232 interface. Users can through the following communication
solution to monitor the SPH.
NOTE: this kind of monitoring, Can only be used by the monitor of Growatt's Shine
server software provided by the company.
Through RS232 interface connect to WIFI/3G, use computer terminal for data
monitoring.
Chart 6.16
Before use WIFI communication, you should make sure the follow PIN1 and PIN2
are ON:
Chart 6.17

Growatt SPH3600 Specifications

General

Model	SPH3600
Type	Hybrid Inverter
Rated Power	3600 W
Max PV Input Voltage	550 V
Number of MPPTs	2
Max Input Current per MPPT	11 A
Nominal DC Voltage	360 V
Nominal AC Power	3600 W
Max AC Current	16 A
Nominal AC Voltage	230 V
AC Voltage Range	180-280V
Nominal Grid Frequency	50/60 Hz
THDi	<3%
Max Efficiency	97.5%
DC Switch	Yes
Protection Degree	IP65
Battery Voltage Range	42 V - 59 V
Communication Interfaces	RS485, WiFi
Max AC Power	3600W
Euro Efficiency	97.0%
Operating Temperature Range	-25°C to +60°C
Cooling	Natural Convection
