Growatt SPH5000 User Manual

25
26

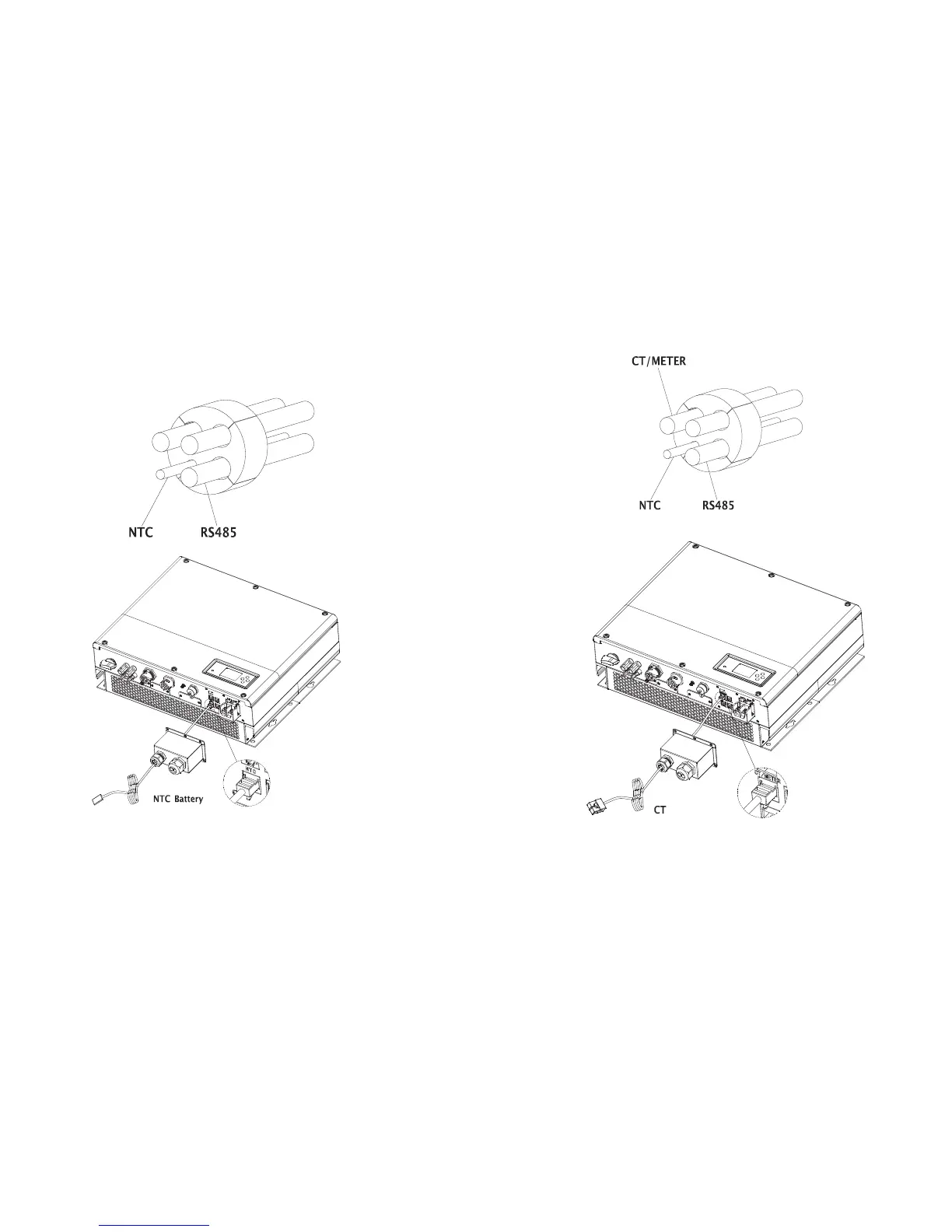

Chart 5.22
Note： If you are using a lithium battery， you do not need to install this
temperature probe, the probe of the temperature cable should be attached to the
surrounding environment of the lead-acid battery, and the length of this cable is
1.5m, so pay attention to the distance of battery and SPH.
Chart 5.21
5.4.6 Connection of CT terminal
There is a CT in SPH inverter monitoring the power consumption situation of
residential users, the CT terminal connection steps are as follows:
1. Thread the swivel nut over the “CT” cable.
2. Press the cable support sleeve out of the cable gland.
3. Remove the filler plug from the cable support sleeve.
4. Route the “CT” cable through an opening in the cable support sleeve.
5. Thread the “CT” cable through the cable gland.
6. Insert the RJ45 plug of the network cable into the “CT/METER” pin connector
on the inverter until it snaps into place.
Chart 5.23
Chart 5.24
Note：The meter and CT cannot be installed at same time, please set the sensor
model when selecting CT or electricity meter, please refer to section 6.3.3 for
details.
Remark: CT wire (5m in length) specification: RJ45, standard LAN line (one end
with 8P modular plug, the other connected with transformer). But if the length is
not enough, customer can add cable, so the length can be increased to 15m max,
the operation is as follow chart:

Growatt SPH5000 Specifications

General

Model	SPH5000
Type	Hybrid Inverter
Rated Power	5000 W
Max. DC Voltage	550 V
Max. Output Current	22 A
Weight	25 kg
Max. DC Power	6000 W
Start Voltage	150 V
Nominal DC Voltage	360 V
Number of MPP Trackers	2
AC Nominal Power	5000 W
Max. AC Apparent Power	5000 VA
AC Nominal Voltage	230 V
AC Voltage Range	180-280V
Nominal Grid Frequency	50/60Hz
Total Harmonic Distortion (THDi)	<3%
Power Factor Adjustment Range	0.8 leading to 0.8 lagging
DC Injection Current	<0.5% In
Switching Time	<10 ms
Max. Charge/Discharge Power	5000 W
Max. Charge/Discharge Current	100 A
Protection degree	IP65
Max. PV Input Voltage	550 V
Cooling Method	Natural Convection
Communication with BMS	CAN
Operating Temperature Range	-25°C to 60°C
MPPT Voltage Range	120 V - 550 V
