Growatt SPH5000 User Manual

11 12

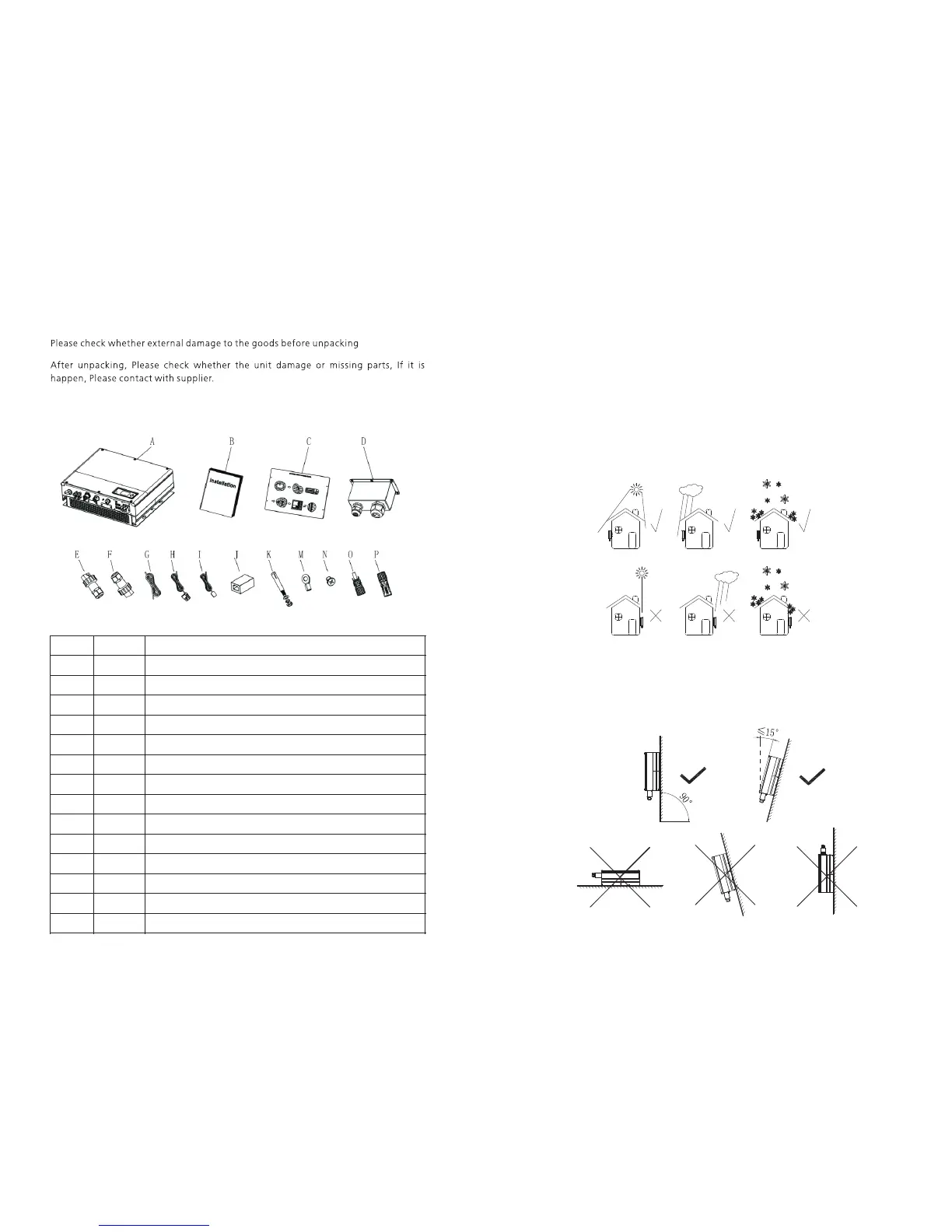

Unpacking4
Growatt SPH series and accessories as follows:
1
1
1
1
1
1
1
1
1
1
4
2
6
2/2
SPH inverter
User Manual
Paper board(installation guide)
Waterproof cover
AC Grid connector
EPS output connector
Communication cable
Current sensor
Lead-acid battery temperature sensor
RJ45 connector
M6 setscrew
Battery power terminal
Screw
MC4 connector
A
B
C
D
E
F
G
H
I
J
K
M
N
O/P
Item
Number Description
Chart 4.1
Installation 5
5.1 Basic installation requirements
Chart 5.2
E. Battery installation option is not far away from the position of SPH, the length
between SPH and battery should not be more than 1.5m.
F. The ambient temperature should be -25℃ ~ 60 ℃
G. SPH can be installed in vertical or lean back on plane, Please refer to the below
A. The installation location must be suitable for SPH's weight for a long period time
B. The installation location must conforms with dimension of SPH
C. Do not install the unit on structures constructed of flammable or thermo labile
materials
D. The Ingress Protection rate is IP65 and the pollution degree is PD2. Please refer to
the below:
Chart 5.1

Growatt SPH5000 Specifications

General

Model	SPH5000
Type	Hybrid Inverter
Rated Power	5000 W
Max. DC Voltage	550 V
Max. Output Current	22 A
Weight	25 kg
Max. DC Power	6000 W
Start Voltage	150 V
Nominal DC Voltage	360 V
Number of MPP Trackers	2
AC Nominal Power	5000 W
Max. AC Apparent Power	5000 VA
AC Nominal Voltage	230 V
AC Voltage Range	180-280V
Nominal Grid Frequency	50/60Hz
Total Harmonic Distortion (THDi)	<3%
Power Factor Adjustment Range	0.8 leading to 0.8 lagging
DC Injection Current	<0.5% In
Switching Time	<10 ms
Max. Charge/Discharge Power	5000 W
Max. Charge/Discharge Current	100 A
Protection degree	IP65
Max. PV Input Voltage	550 V
Cooling Method	Natural Convection
Communication with BMS	CAN
Operating Temperature Range	-25°C to 60°C
MPPT Voltage Range	120 V - 550 V
