Grundfos CME Series User Manual

17
English (US)

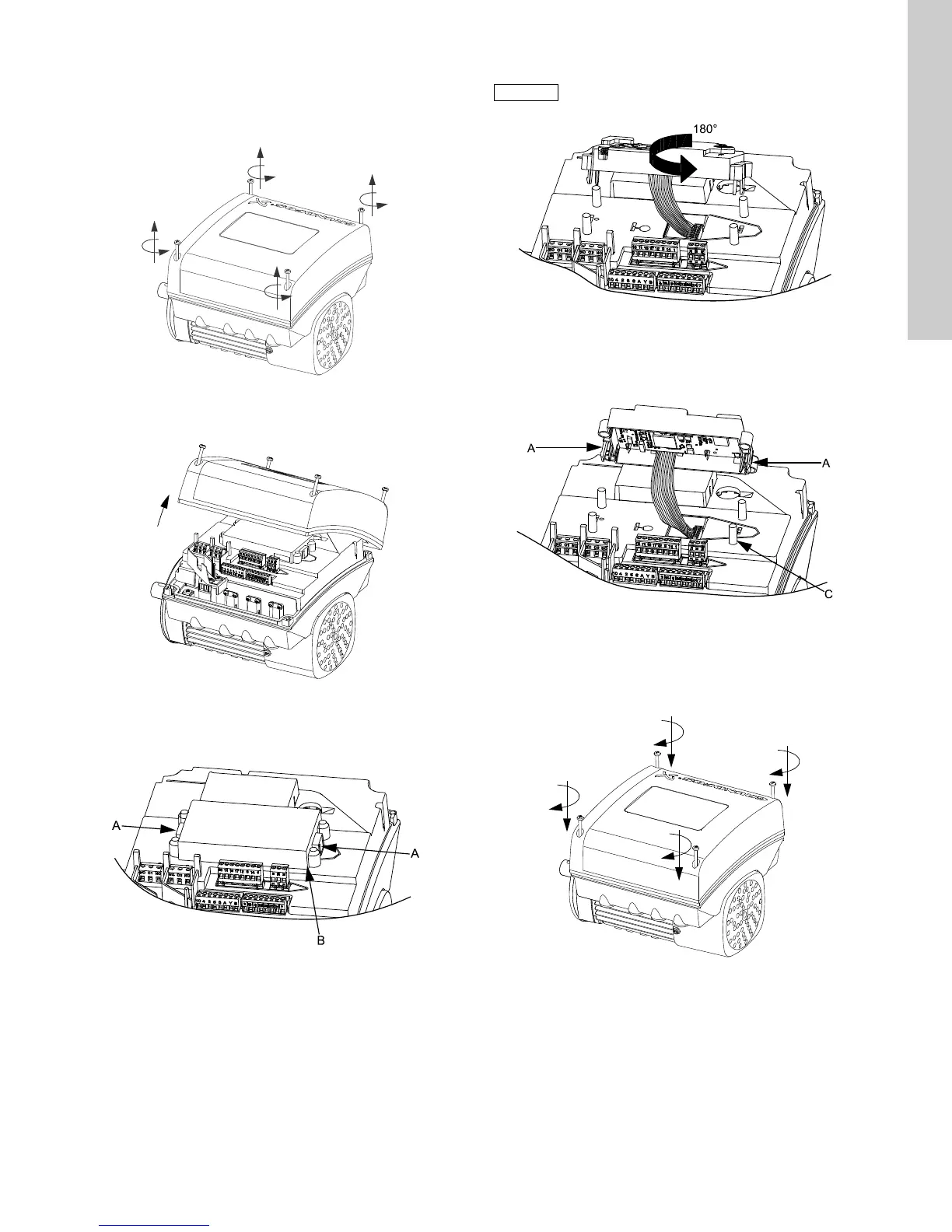

10.2 Changing the position of the control panel
It is possible to turn the control panel 180 °. Follow the
instructions below.
1. Loosen the four screws (TX25) holding the terminal box cover.
Fig. 24 Loosening the screws
2. Remove the terminal box cover.
Fig. 25 Removing the terminal box cover
3. Press and hold in the two locking tabs (pos. A) while gently
lifting the plastic cover (pos. B).
Fig. 26 Lifting the plastic cover
4. Turn the plastic cover 180 °.
Fig. 27 Turning the plastic cover
5. Re-position the plastic cover correctly on the four rubber pins
(pos. C). Make sure that the locking tabs (pos. A) are placed
correctly.
Fig. 28 Re-positioning the plastic cover
6. Fit the terminal box cover, and make sure that it is also turned
180 ° so that the buttons on the control panel are aligned with
the buttons on the plastic cover.
Tighten the four screws (TX25) with 3.7 ft lb.
Fig. 29 Fitting the terminal box cover
TM05 5351 3612TM05 5352 3612TM05 5353 3612
Note
Note
Do not twist the cable more than 90 °.
TM05 5354 3612TM05 5355 3612TM05 5356 3612

Grundfos CME Series Specifications

General

Type	Centrifugal Pump
Power Supply	Electric
Maximum Operating Pressure	10 bar
Housing Material	Stainless steel
Impeller Material	Stainless steel
Material	Stainless Steel
Applications	Water boosting, industrial applications, domestic water supply, irrigation, pressure boosting in buildings
Pumped Liquid	Clean water
Approvals	CE
Seal Type	Mechanical Seal
Pressure Rating	PN10
