Grundfos CME Series User Manual

English (US)
32
10.4 Grundfos GO Remote
The pump is designed for wireless radio or infrared
communication with the Grundfos GO Remote.
The Grundfos GO Remote enables setting of functions and gives
access to status overviews, technical product information and
actual operating parameters.
The Grundfos GO Remote offers three different mobile interfaces
(MI). See fig. 35.

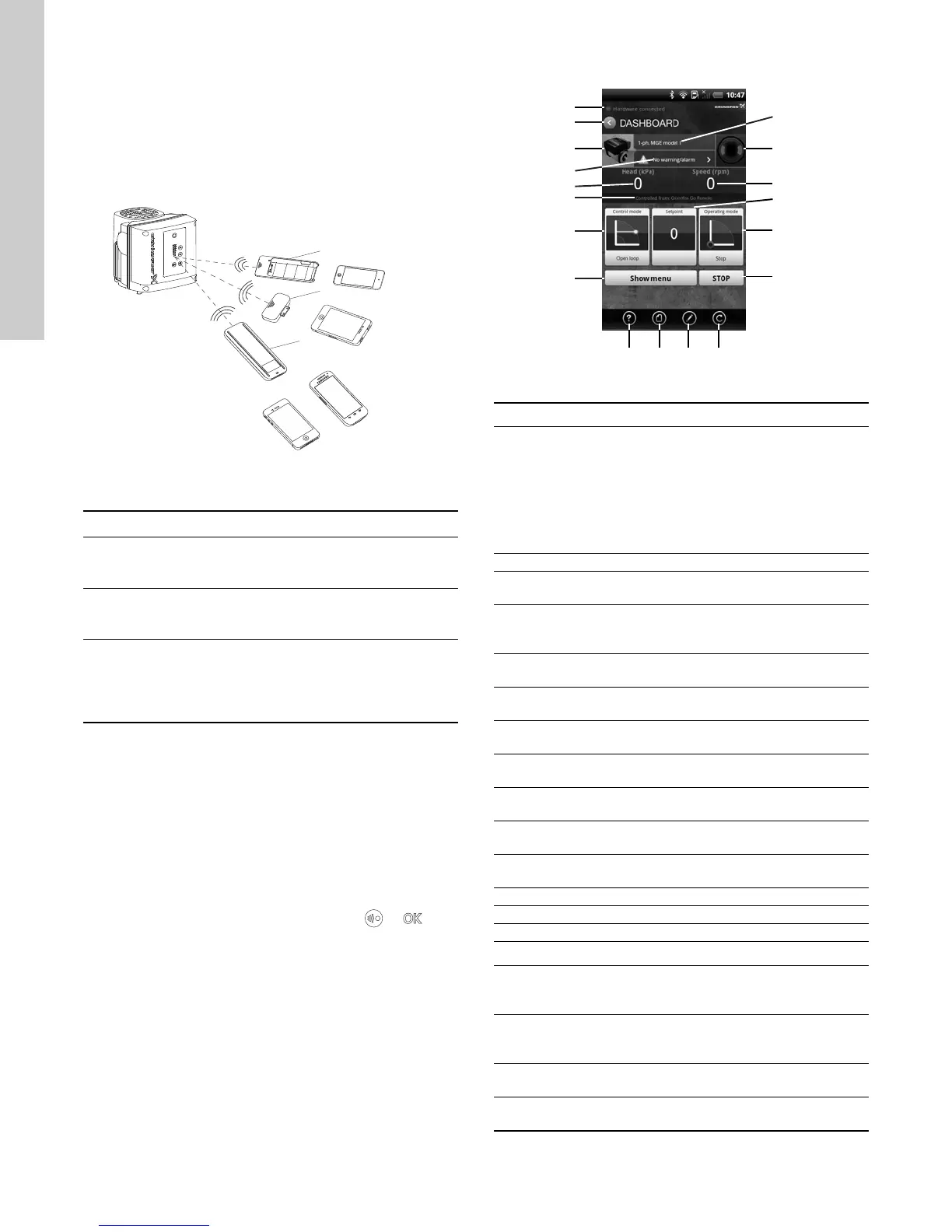

Fig. 35 Grundfos GO Remote communicating with the pump
via radio or infrared light
10.4.1 Communication
When the Grundfos GO Remote communicates with the pump,
the indicator light in the middle of the Grundfos Eye will flash
green. See section 14. Grundfos Eye.
Communication must be established using one of these
communication types:
• radio communication
• infrared communication
Radio communication
Radio communication can take place at distances up to 98 ft It is
necessary to enable communication by pressing or on
the pump control panel.
Infrared communication
When communicating via infrared light, the Grundfos GO Remote
must be pointed at the pump control panel.
10.4.2 Navigation
Navigation can be done from the dashboard. See fig. 36.
Dashboard
Fig. 36 Example of dashboard
TM05 5383 4312
Pos. Description
1
Grundfos MI 201:
Consists of an Apple iPod touch 4G and a Grundfos
cover.
2
Grundfos MI 202:
Add-on module which can be used in conjunction
with Apple iPod touch 4, iPhone 4G or later.
3
Grundfos MI 301:
Separate module enabling radio or infrared
communication. The module can be used in
conjunction with an Android or iOS-based
Smartphone with Bluetooth connection.
+
1
2
3
+
+
TM05 5609 3912
Pos. Description Action
1
Connection
indicator
This text appears when the
Grundfos GO Remote app has
connected to an MI 201, MI 202
or MI 301.
If the hardware is not connected,
it will not be possible to
communicate with a Grundfos
product.
2 Back button Returns to the previous display.
3
Product
information
Provides technical information
about the product.
4 Product name
Name of the product
communicating with the Grundfos
GO Remote.
5
Alarms and
warnings
Shows alarms and warnings.
6 Grundfos Eye
Shows the operating condition of
the product.
7
Primary status
value
Shows the primary status value.
8
Secondary status
value
Shows the secondary status
value.
9 Control source
Shows by which interface the
product is controlled.
10 Control mode
Shows the control mode of the
product.
11
Actual setpoint
value
Shows the actual setpoint value.
12 Operating mode Shows the operating mode.
13 Show menu Gives access to other menus.
14 Stop Stops the product.
Tool bar
15 Help
The help function describes the
menus making it easy for the user
to change settings, etc.
16 Documentation
Gives access to installation and
operating instructions and quick
guides.
17 Report
Enables the creation of
user-defined reports.
18 Update
Enables update of the Grundfos
GO Remote app.
1
2
3
5
7
9
10
13
15 16 17 18
14
12
11
8
6
4

Grundfos CME Series Specifications

General

Type	Centrifugal Pump
Power Supply	Electric
Maximum Operating Pressure	10 bar
Housing Material	Stainless steel
Impeller Material	Stainless steel
Material	Stainless Steel
Applications	Water boosting, industrial applications, domestic water supply, irrigation, pressure boosting in buildings
Pumped Liquid	Clean water
Approvals	CE
Seal Type	Mechanical Seal
Pressure Rating	PN10
