5
English (US)
6.3 Ensuring motor cooling

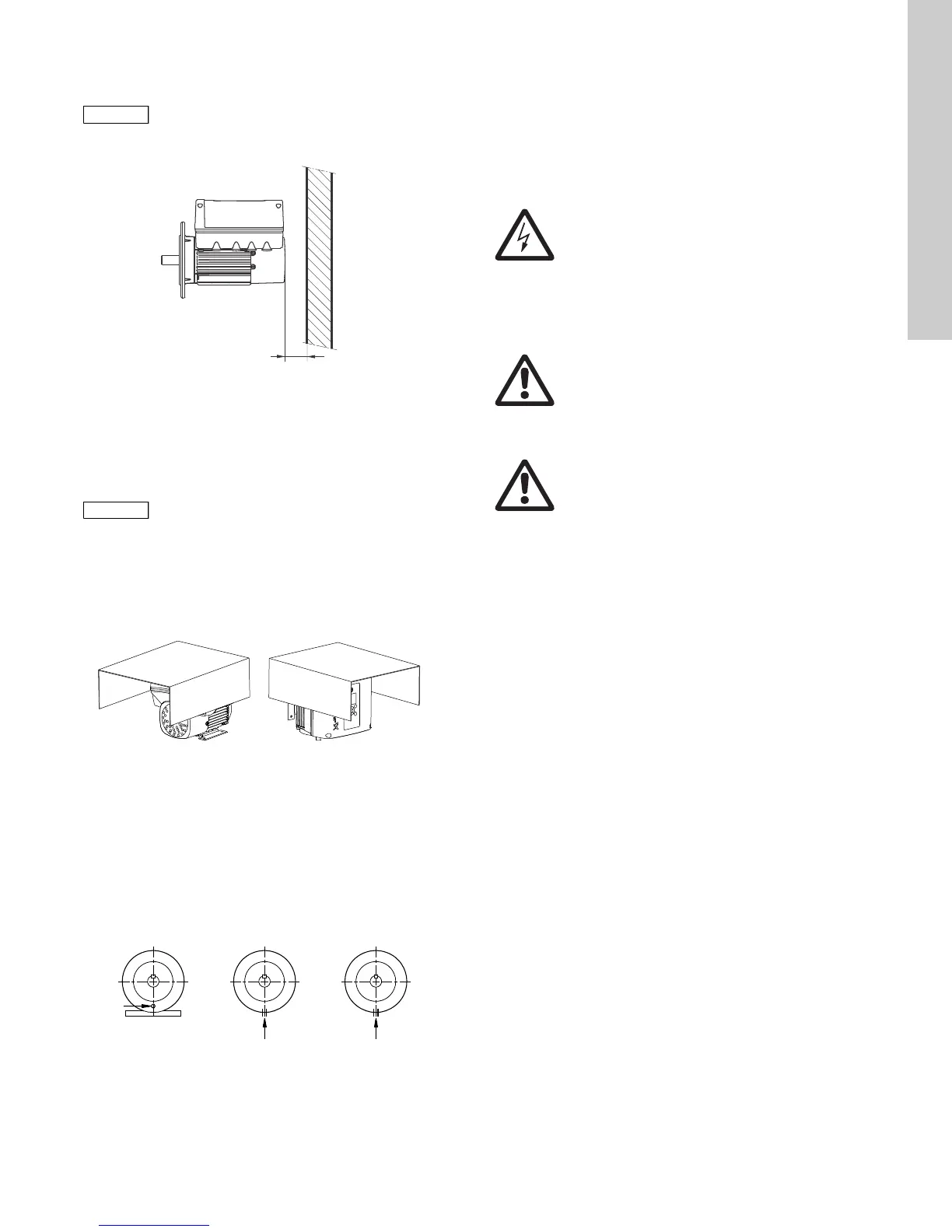

Fig. 1 Minimum distance (D) from the motor to a wall or other
fixed objects
6.4 Outdoor installation
When installed outdoors, the motor must be provided with a
suitable cover to avoid condensation on the electronic
components. See fig. 2.
The cover must be sufficiently large to ensure that the motor is
not exposed to direct sunlight, rain or snow. Grundfos does not
supply covers. We therefore recommend that you have a cover
built for the specific application. In areas with high air humidity,
we recommend that you enable the built-in standstill heating
function. See section Standstill heating, page 31.
Fig. 2 Examples of covers (not supplied by Grundfos)
6.5 Drain holes
When the motor is installed in moist surroundings or areas with
high air humidity, the bottom drain hole should be open.
The enclosure class of the motor will then be lower. The open
drain hole helps prevent condensation in the motor as it will make
the motor self-venting and allow water and humid air to escape.
The motor has a plugged drain hole on the drive side. The flange
can be turned 90 ° to both sides or 180 °.
Fig. 3 Drain holes
7. Electrical installation
Carry out the electrical connection according to local regulations.
Check that the supply voltage and frequency correspond to the
values stated on the nameplate.
7.1 Protection against electric shock, indirect contact
Protective-ground conductors must always have a yellow/green
(PE) or yellow/green/blue (PEN) color marking.
7.1.1 Protection against power supply voltage transients
The motor is protected against power supply voltage transients in
accordance with EN 61800-3.
7.1.2 Motor protection
The motor requires no external motor protection. The motor
incorporates thermal protection against slow overloading and
blocking.
7.1.3 Backup fuses
For recommended fuse sizes, see page 41.
In order to ensure sufficient cooling of the motor,
the distance (D) between the end of the fan cover
and a wall or other fixed objects must always be
at least 2", irrespective of motor size. See fig. 1.
TM05 5236 3512
When fitting a cover to the motor, observe the
guideline in section 6.3 Ensuring motor cooling.
TM05 3496 3512TM02 9037 1604
Warning
Do not make any connections in the terminal box
unless the power supply has been switched off
for at least 5 minutes.
Make sure that the power supply cannot be
accidentally switched on.
The motor must be ground and protected against
indirect contact in accordance with local
regulations.
If the power supply cable is damaged, it must be
replaced by the manufacturer, the manufacturer's
service partner or a similarly qualified person.
The user or the installer is responsible for the
installation of correct grounding and protection
according to local regulations. All operations
must be carried out by a qualified electrician.
Warning
The motor must be grounded and protected
against indirect contact in accordance with local
regulations.
