10.3 R100 remote control
The pumps are designed for wireless communication with the
Grundfos remote control R100.

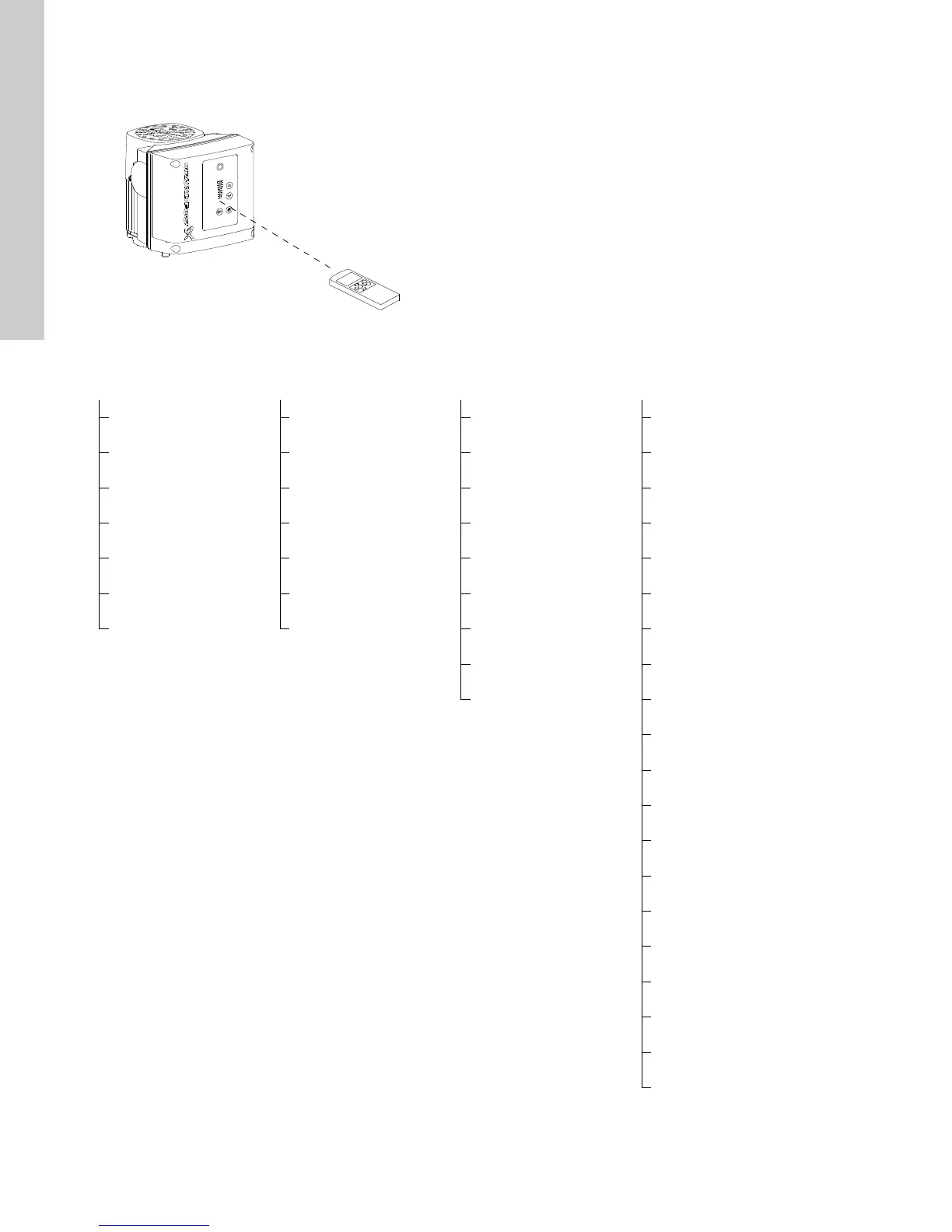

Fig. 30 R100 communicating with the pump via infrared light
During communication, the R100 must be pointed at the control
panel. When the R100 communicates with the pump, the
indicator light in the middle of the Grundfos Eye will flash green.
See page 36.
The R100 offers additional possibilities of setting and status
displays for the pump.
The displays are divided into four parallel menus:
0. GENERAL (see operating instructions for the R100)
1. OPERATION
2. STATUS
3. INSTALLATION.
See section 10.3.1 R100 menu structure.
10.3.1 R100 menu structure
TM05 3933 1712
0. GENERAL 1. OPERATION 2. STATUS 3. INSTALLATION
Switch off R100 Setpoint
Actual setpoint and
external setpoint
Control mode
Return to start Operating mode Operating mode Controller
Delete all changes Manual speed Actual controlled value Signal relay 1 and 2
Store settings Alarm Analog input 1, 2 and 3 Buttons on pump
Call up settings Warning Pt100/1000 input 1 and 2 Number
Store status data Alarm log 1 to 5 Speed Digital input 1 and 2, Function
Call up status data Warning log 1 to 5
Power input and power
consumption
Digital input/output 3 and 4, State
Operating hours
Digital input/output 3 and 4,
Function
Replace motor bearings Low-flow stop function
Analog input 1, 2 and 3, Function
Analog input 1, 2 and 3, Measured
parameter
Analog input 1, 2 and 3
Pt100/1000 input 1 and 2, Function
Pt100/1000 input 1 and 2, Measured
parameter
LiqTec function
Operating range
Ramps
Motor bearing monitoring
Motor bearings
Standstill heating
