14. Grundfos Eye
The operating condition of the motor is indicated by the Grundfos
Eye on the motor control panel. See fig. 39, pos. A.

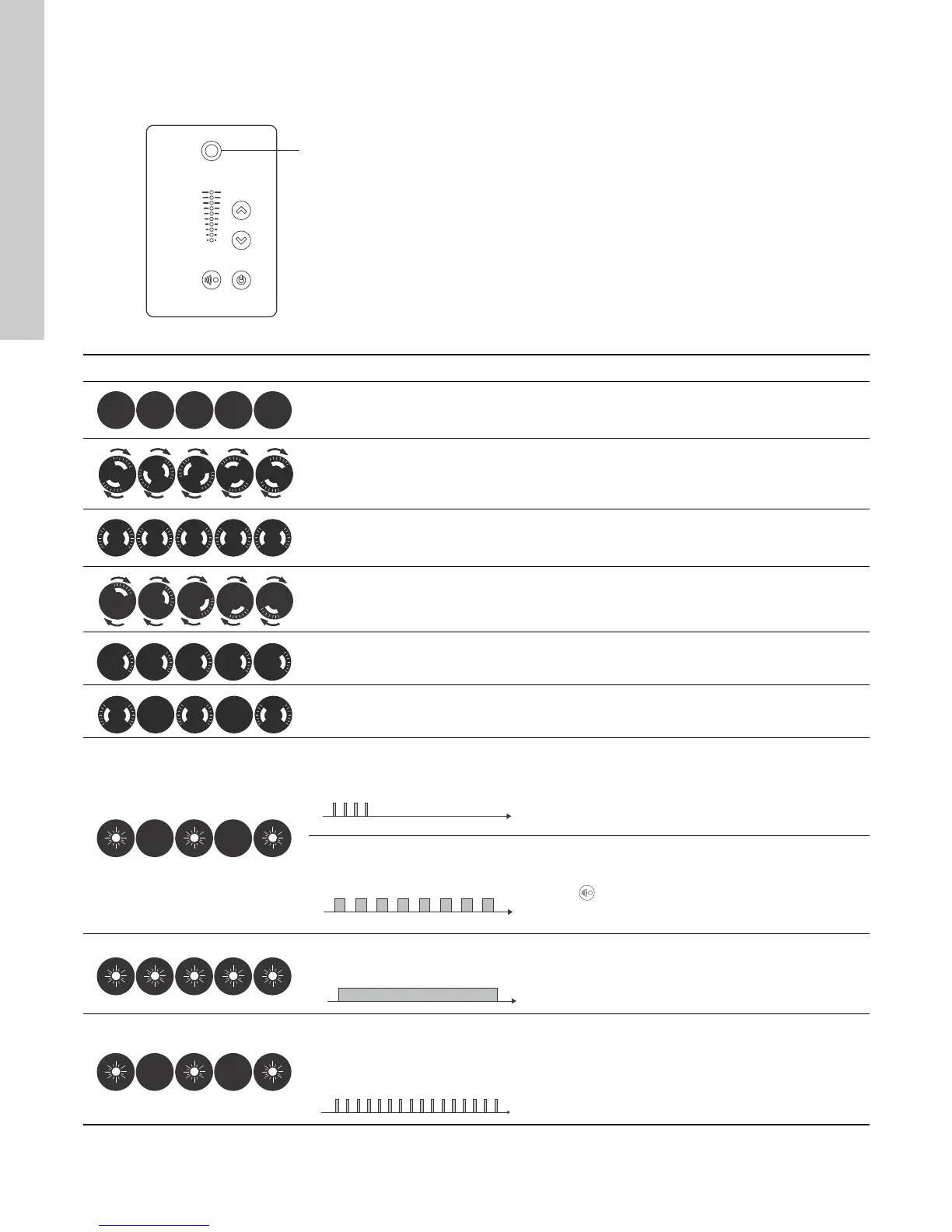

Fig. 39 Grundfos Eye
TM05 5993 4312
Grundfos Eye Indication Description
No lights on.
Power off.
Motor not running.
Two opposite green indicator lights rotating
in the direction of rotation of the motor when
seen from the non-drive end.
Power on.
Motor running.
Two opposite green indicator lights
permanently on.
Power on.
Motor not running.
One yellow indicator light rotating in the
direction of rotation of the motor when seen
from the non-drive end.
Warning.
Motor running.
One yellow indicator light permanently on.
Warning.
Motor stopped.
Two opposite red indicator lights flashing
simultaneously.
Alarm.
Motor stopped.
The green indicator light in the middle
flashes quickly four times.
Remote control with the Grundfos GO Remote via
radio.
The motor is trying to communicate with the
Grundfos GO Remote. The motor in question is
highlighted in the Grundfos GO Remote display to
inform the user of the location of the motor.
The green indicator light in the middle
flashes continuously.
When the motor in question is selected in the
Grundfos GO Remote menu, the green indicator
light in the middle will flash continuously. Press
on the motor control panel to allow remote
control and data exchange via the Grundfos GO
Remote.
The green indicator light in the middle is
permanently on.
Remote control with the Grundfos GO Remote via
radio.
The motor is communicating with the Grundfos
GO Remote via radio connection.
The green indicator light in the middle
flashes quickly while the R100 or Grundfos
Go Remote is exchanging data with the
motor. It will take a few seconds.
Remote control with the R100 or Grundfos GO
Remote via infrared light.
The motor is receiving data from the R100 or
Grundfos GO Remote via infrared communication.
