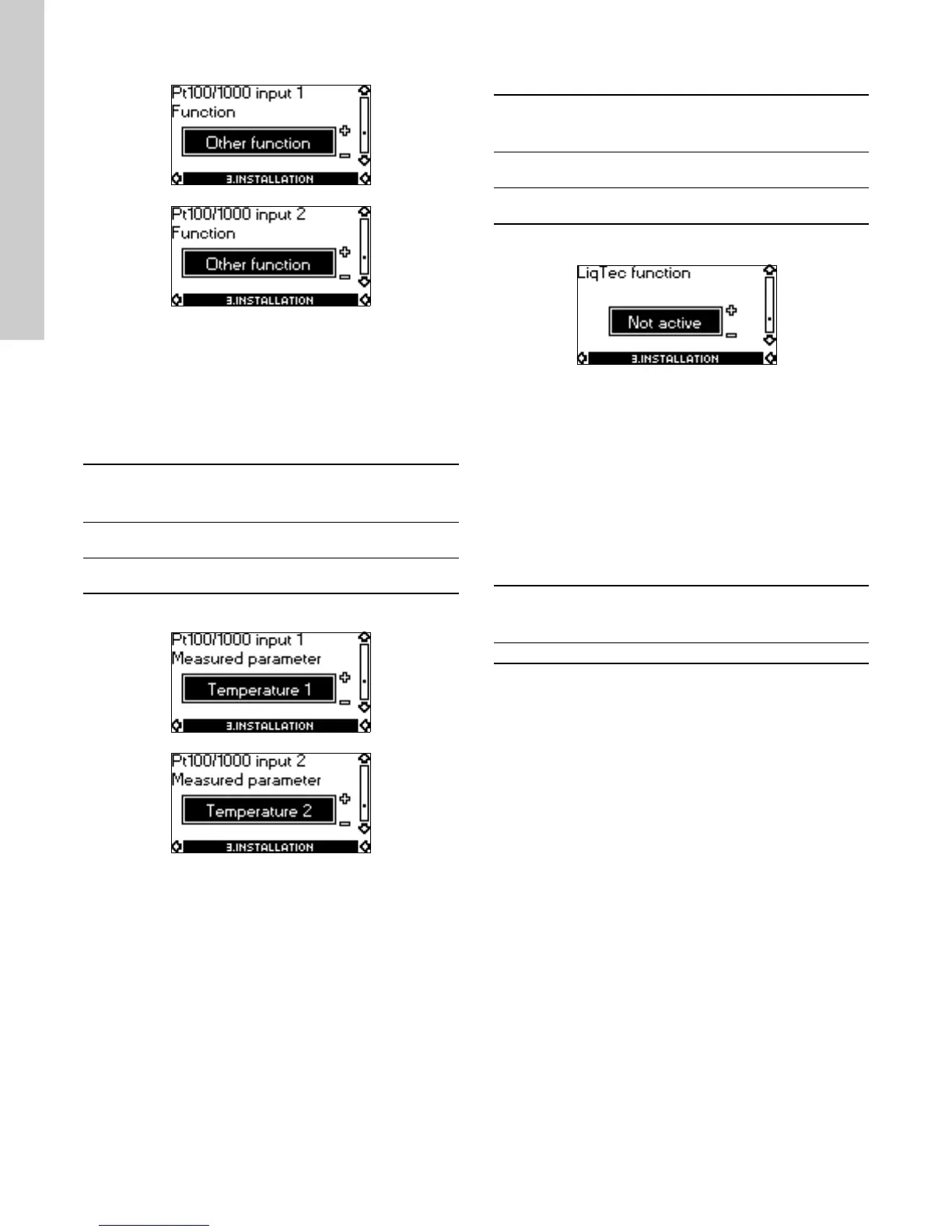

Pt100/1000 input 1 and 2, Function
The Pt100/1000 inputs can be set to these functions:
• Not active
• Feedback sensor
• Ext. setpoint infl.
See section 11. External setpoint signal for further description.
• Other function.
The number of available displays depends on the pump type. See
below.
Pt100/1000 input 1 and 2, Measured parameter
The Pt100/1000 inputs can be set to these parameters:
• Liquid temp.
• Temperature 1
• Temperature 2
• Ambient temp.
• DE bearing temp.
• NDE bearing temp.
The number of available displays depends on the pump type. See
below.
LiqTec function
The function of LiqTec sensors can be enabled or disabled in this
display. A LiqTec sensor protects the pump against dry running
and too high liquid temperature (266 ° F ± 9 °F).
When the LiqTec function has been enabled, it will stop the pump
if dry running occurs or if the liquid temperature becomes too
high. The pump must be restarted manually if it has been stopped
due to dry running or too high liquid temperature.
Possible settings:
•Active
• Not active.
The number of available displays depends on the pump type. See
below.
Function (terminal) CME
CRE, CRIE,
CRNE, CRKE,
SPKE, MTRE
Pt100/1000 input 1, Function (17
and 18)
- ●
Pt100/1000 input 2, Function (19
and 18)
- ●
Function (terminal) CME
CRE, CRIE,
CRNE, CRKE,
SPKE, MTRE
Pt100/1000 input 1, Measured
parameter (17 and 18)
- ●
Pt100/1000 input 2, Measured
parameter (19 and 18)
- ●
Function (terminal) CME
CRE, CRIE,
CRNE, CRKE,
SPKE, MTRE
LiqTec function (21 and 22) - ●
