4. Electrical connection
Carry out the electrical connection according to local
regulations.
Check that the supply voltage and frequency
correspond to the values stated on the nameplate.
5. Startup
6. Control panel

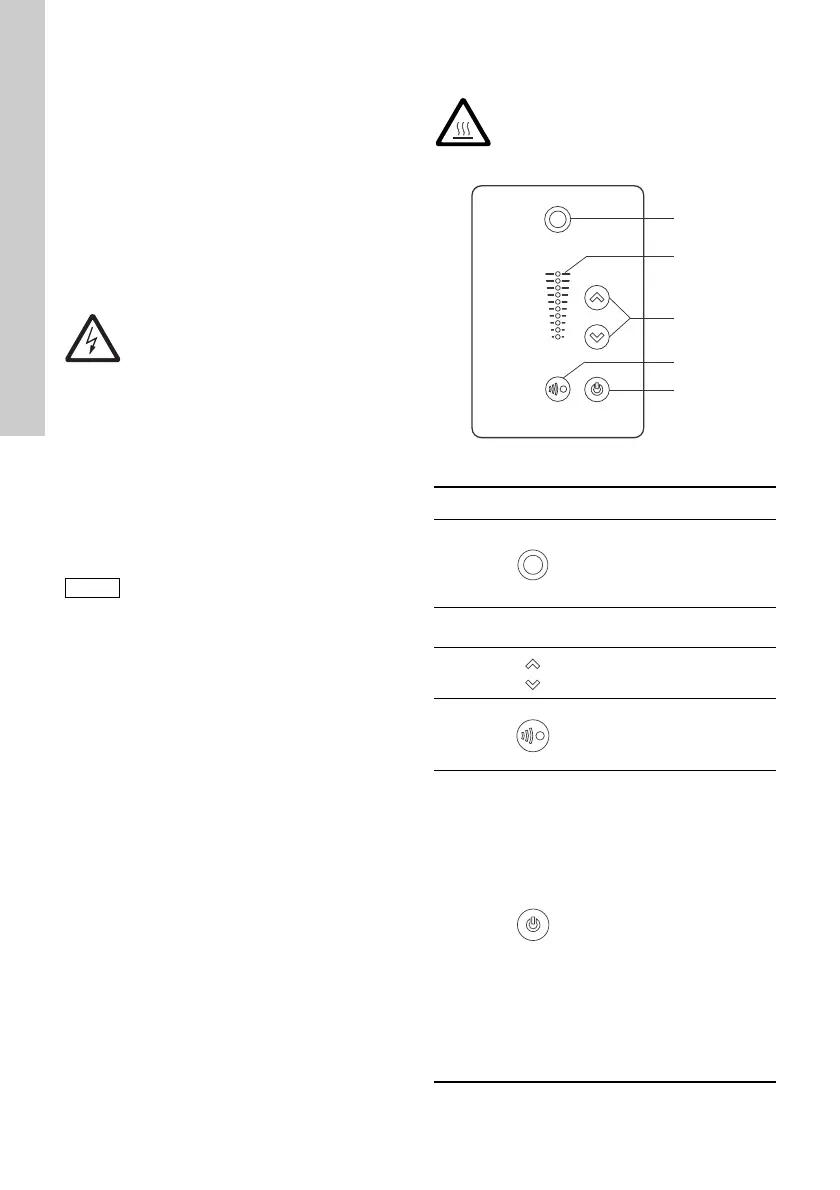

Fig. 1 Standard control panel
* CME Boosters cannot communicate via radio.
Warning
Before making connections in the
terminal box or breaker cabinet, make
sure that the power supply has been
switched off for at least 5 minutes.
Make sure that the power supply
cannot be accidentally switched on.
The product must be connected to an
external all-pole mains switch
according to local regulations.
The product must be earthed and
protected against indirect contact in
accordance with local regulations.
We recommend to fit the permanent
installation with an earth leakage
circuit breaker (ELCB) with a tripping
current < 30 mA.
If the power supply cable is damaged, it
must be replaced by the manufacturer,
the manufacturer's service partner or a
similarly qualified person.
Do not start the pump until it has been
filled with liquid.
Warning
The product may be so hot that only the
buttons should be touched to avoid
burns.
TM05 4848 3512
Pos. Symbol Description
1
Grundfos Eye
Shows the operating status of
the pump.
See section 10. Further
product information.
2-
Light fields for indication of
setpoint.
3 Changes the setpoint.
4
Enables IR communication
with the Grundfos GO Remote
and other products of the
same type.*
5
Makes the pump ready for
operation/starts and stops the
pump.
Start:
If the button is pressed when
the pump is stopped, the
pump will only start if no other
functions with higher priority
have been enabled.
See section 10. Further
product information.
Stop:
If the button is pressed when
the pump is running, the
pump will always be stopped.
When the pump is stopped via
this button, the "Stop" text
next to the button will
illuminate.
