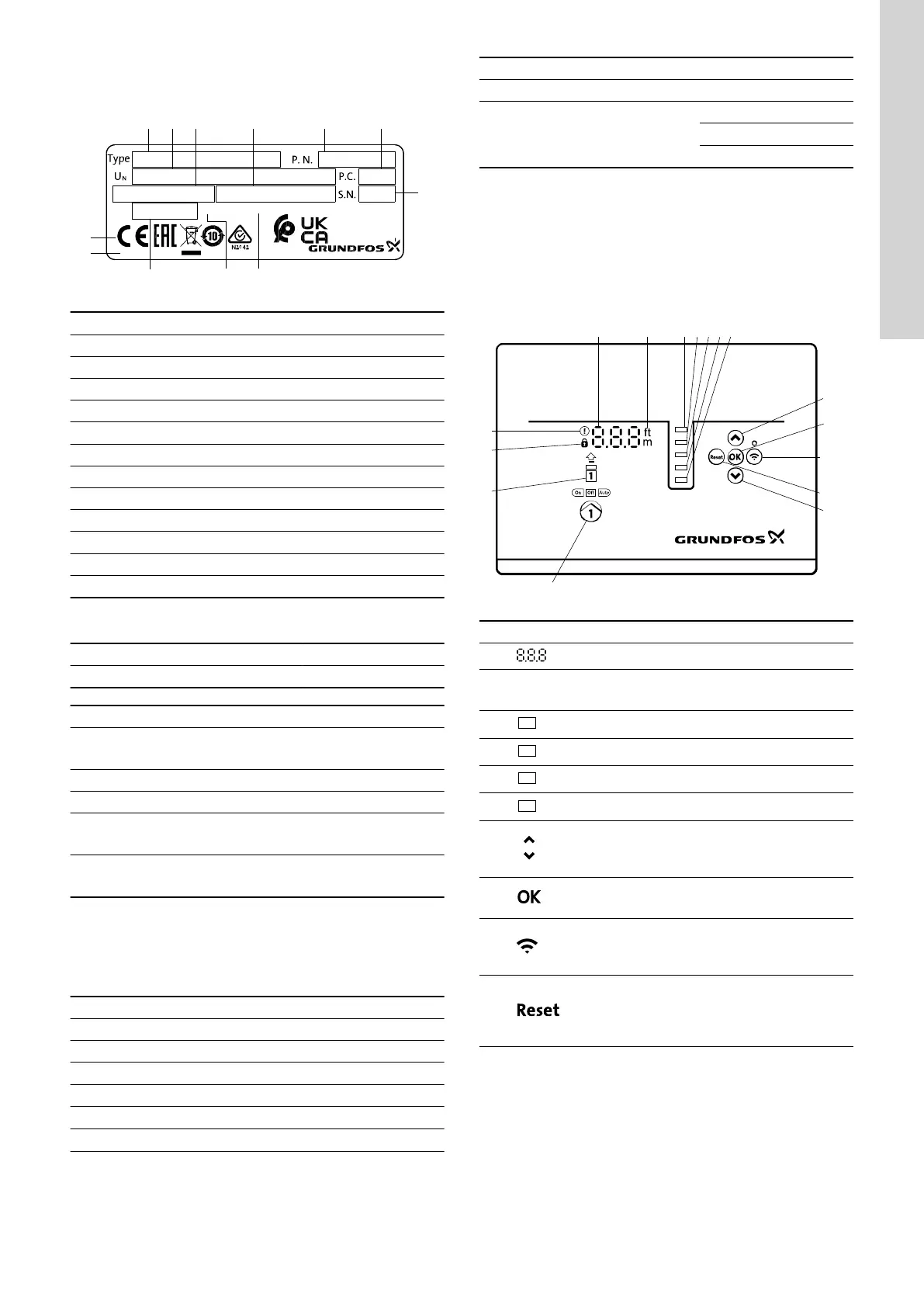

4.6 Identification
4.6.1 Nameplate
1
5
6
7
99350749
2
3
10
4
9
11
12
8
P2
°C
IP 54
T
amb
DK-8850 Bjerringbro, Denmark
Assembled in Thailand
TM078013
Pos. Description
1 Product name
2 Supply voltage
3 Maximum current
4 Maximum start current
5 Version number and material number
6 Production code (year and week)
7 Serial number
8 Factory code
9 IP class
10 Minimum to maximum ambient temperature
11 Production site
12 Markings and approvals
4.6.2 Type key for LC 232
Example LC 232 2x 1-9 DOL PI
Pos. 1 2 3 4 5
Pos. Description
1
Type:
• LC 232: wall-mounted version
2 Number of pumps supported
3 Current range of pump [A]
4
Starting method:
• DOL: Direct-on-line
5
Panel type:
• PI: Plastic enclosure
4.7 Supported communication interface modules and
protocols
The following Grundfos communication interface modules can be
added to the product.
Communication interface module
Protocol
CIM 050 GENIbus
CIM 150 PROFIBUS DP
CIM 200 Modbus RTU
CIM 260 3G/4G
CIM 270
1)
GRM
CIM 280
1)
Grundfos Utility Connect
Communication interface module Protocol
CIM 300 BACnet
CIM 500
Modbus TCP
PROFINET IO
GRM IP
1)
Not supported.
Related information
2.2.5 Installing a communication interface module
5. Control functions
5.1 Operating panel
1 2 3 4 5 6 7
8
9
10
11
8
12
15
14
13
TM075157
Pos. Symbol Description
1 Display
2
ft
m
Units
4 Not in use
5 Start level
6 Stop level
7 Dry-running level
8
Up/Down buttons:
• Press these buttons to navigate between
submenus or change the value settings.
9
OK button:
• Press this button to save changed values.
10
Connect button:
• Press this button to connect the control unit
to Grundfos GO Remote via Bluetooth.
11
Reset button:
• Press this button during startup to reset
settings and start over or to reset an alarm
or warning.
13
