6.2 Ready indication
The signal relay is active when the pump is in operation or ready for
operation.
See section 6.4 Functional diagram.
6.3 Operating indication
The signal relay is active as long as the pump is operating. If the pump is
stopped on the control panel, with the R100 or because of a fault, the
signal relay is deactivated and consequently gives a signal to an external
control system, e.g. a building management system.
See section 6.4 Functional diagram.

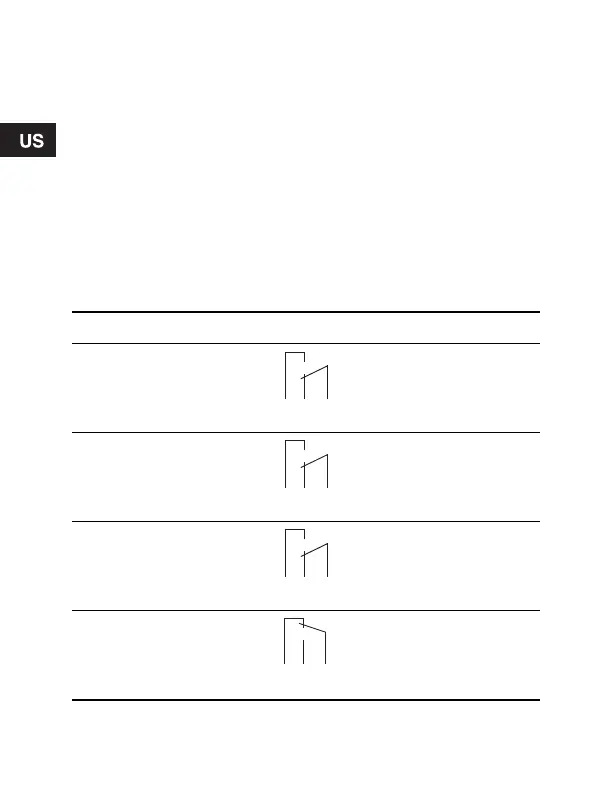

6.4 Functional diagram
Setting Relay Description
Fault Pump fault
Ready
In operation
Ready for operation
Operation In operation
– Relay inoperable
12 3
NC NO C
12 3
NC NO C
12 3
NC NO C
132
NC NO C

Grundfos Magna Specifications

General

Frequency	50/60 Hz
Temperature Range	-10 °C to +110 °C
Type	Circulator Pump
Maximum Operating Pressure	10 bar
Insulation Class	F
Series	Magna
Material	Cast iron
Voltage	1 x 230 V / 3 x 400 V (depending on model)
