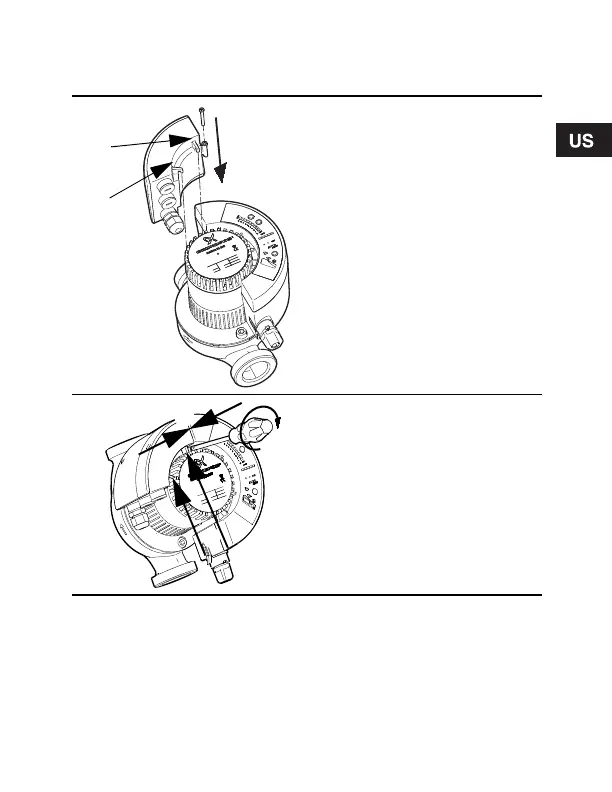

4.2 Mounting the module
TM03 0881 0705
1. Align the two hooks on the
module.
2. Gently push the module
into place so that the
hooks engage with the
control box.
TM03 0880 0705
3. Check that the module
and the control box touch
each other.
4. Check that the two hooks
of the module engage
correctly with the control
box.
5. Fasten the module with
the screw.
1
2
3
4
5

Grundfos Magna Specifications

General

Frequency	50/60 Hz
Temperature Range	-10 °C to +110 °C
Type	Circulator Pump
Maximum Operating Pressure	10 bar
Insulation Class	F
Series	Magna
Material	Cast iron
Voltage	1 x 230 V / 3 x 400 V (depending on model)
