Grundfos MAGNA1 User Manual

English (GB)
3
2. Receiving the product
2.1 Inspecting the product
Check that the product is in accordance with the order.
Check that the voltage and frequency of the product match
voltage and frequency of the installation site. See section
6.3.1 Nameplate.
2.2 Scope of delivery
2.2.1 Plug-connected single-head pump

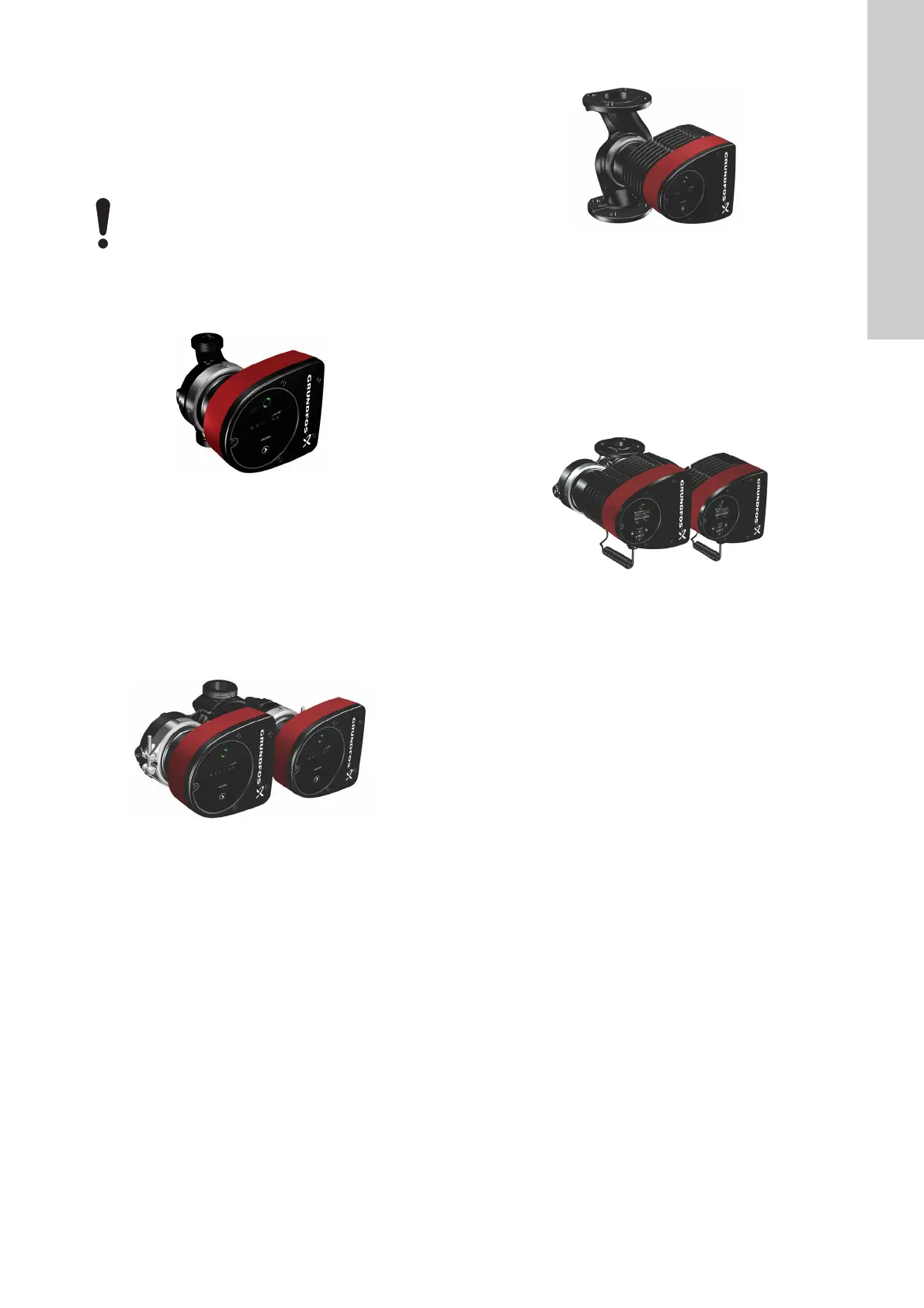

Fig. 1 Plug-connected single-head pump
The box contains the following items:
• MAGNA1-pump
• insulating shells
•gaskets
• quick guide
• safety instructions
• one ALPHA plug.
2.2.2 Plug-connected twin-head pump
Fig. 2 Plug-connected twin-head pump
The box contains the following items:
• MAGNA1-pump
•gaskets
• quick guide
• safety instructions
• two ALPHA plugs.
2.2.3 Terminal-connected single-head pump
Fig. 3 Terminal-connected single-head pump
The box contains the following items:
• MAGNA1-pump
• insulating shells
•gaskets
•quick guide
• safety instructions
• box with terminal and cable glands.
2.2.4 Terminal-connected twin-head pump
Fig. 4 Terminal-connected twin-head pump
The box contains the following items:
• MAGNA1-pump
•gaskets
•quick guide
• safety instructions
• two boxes with terminal and cable glands.
Pumps tested with water containing anticorrosive
additives are taped on the inlet and outlet ports to
prevent residual test water from leaking into the
packaging. Remove the tape before installing the
pump.
TM05 5508 3016TM06 7222 3016
TM06 7223 3016TM06 6791 3016

Grundfos MAGNA1 Specifications

General

Pump Type	Circulator Pump
Flow Range	0.5 - 12 m³/h
Maximum Flow	12 m³/h
Maximum Head	10 m
Maximum Liquid Temperature	110°C
Maximum Operating Pressure	10 bar
Power Supply	230 V, 50/60 Hz
Enclosure Class	IP42
Insulation Class	F
Pump Housing	Cast Iron
Installation Length	180 mm
Series	MAGNA1
Energy Efficiency Class	A
Liquid Temperature Range	2°C to 110°C
Approvals	CE, EAC
Ambient Temperature Range	0 .. 40 °C
