English (GB)
17
7.3 Operating the product

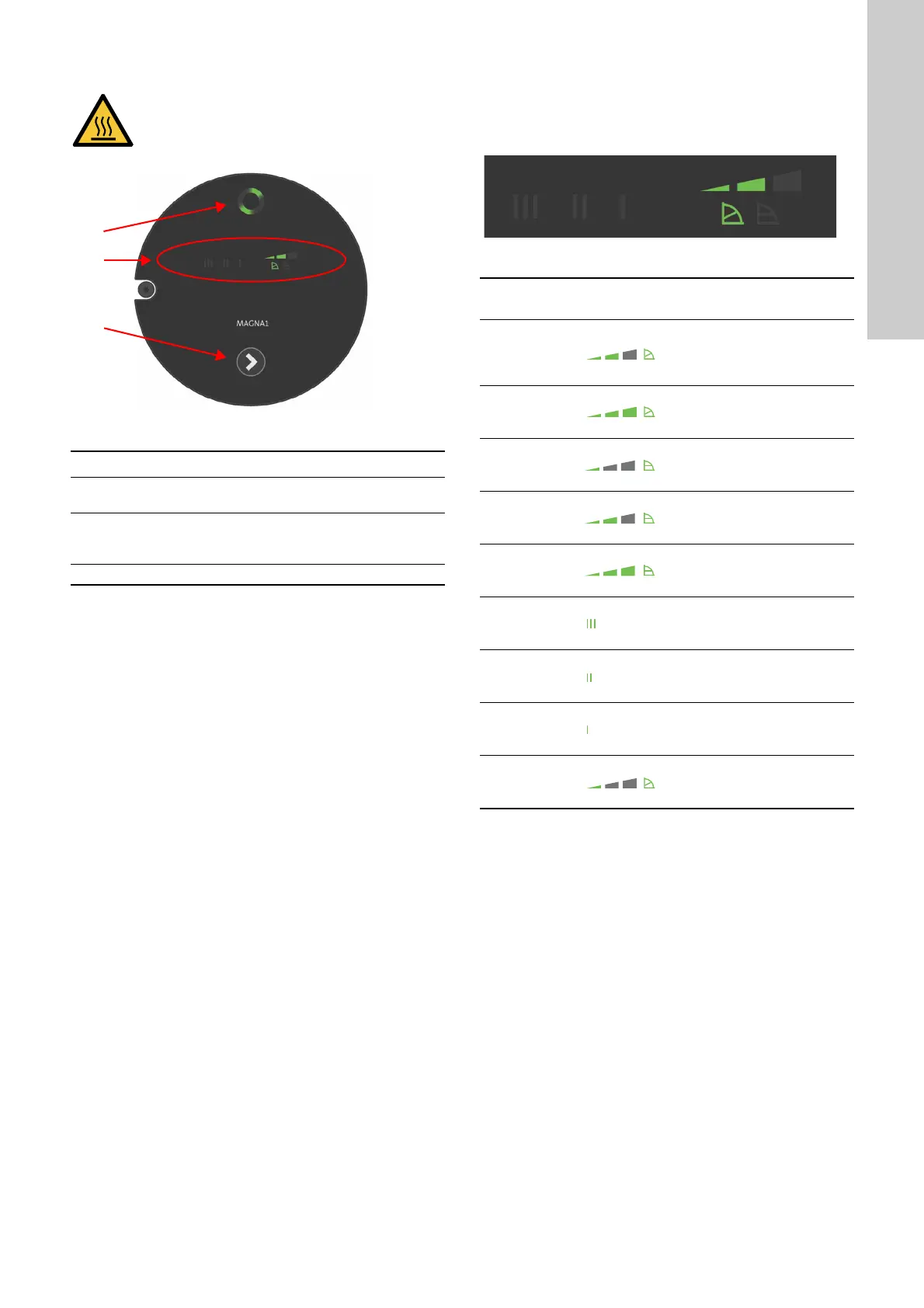

Fig. 27 Control panel
7.4 Grundfos Eye
Grundfos Eye is on when you switch on the power supply. See
fig. 27, pos. 1.
Grundfos Eye is an indicator light providing information about the
actual pump status.
The indicator light flashes in different sequences and provides
information about the following:
• power on and off
• pump alarms.
The function of Grundfos Eye is described in section
8.1 Grundfos Eye operating status.
Faults preventing the pump from operating properly, for example
blocked rotor, are indicated by Grundfos Eye. See section
8.1 Grundfos Eye operating status.
If a fault is indicated, correct the fault and reset the pump by
switching the power supply off and on.
If the pump impeller is rotated, for example when filling the pump
with water, sufficient energy may be generated to light up the
control panel even if the power supply has been switched off.
7.5 Light fields indicating the pump setting
The pump has nine performance settings which you can select
with the push-button. See fig. 27, pos. 3.
The pump setting is indicated by eight light fields in the display.
See fig. 27, pos. 2.
Fig. 28 Factory setting, PP2
CAUTION
Hot surface
Minor or moderate personal injury
- Only touch the control panel to avoid burns.
TM05 5552 3812
Pos. Description
1
Operating status of Grundfos Eye.
See section 7.4 Grundfos Eye.
2
Eight light fields indicating the pump setting.
See section 7.5 Light fields indicating the pump
setting.
3 Push-button for selection of pump setting.
TM05 5553 3812
Button
presses
Active light fields Description
0
Intermediate
proportional-pressure
curve, referred to as PP2
1
Highest
proportional-pressure
curve, referred to as PP3
2
Lowest
constant-pressure curve,
referred to as CP1
3
Intermediate
constant-pressure curve,
referred to as CP2
4
Highest
constant-pressure curve,
referred to as CP3
5
Constant curve III
6
Constant curve II
7
Constant curve I
8
Lowest
proportional-pressure
curve, referred to as PP1
