Grundfos MAGNA1 User Manual

English (GB)
9

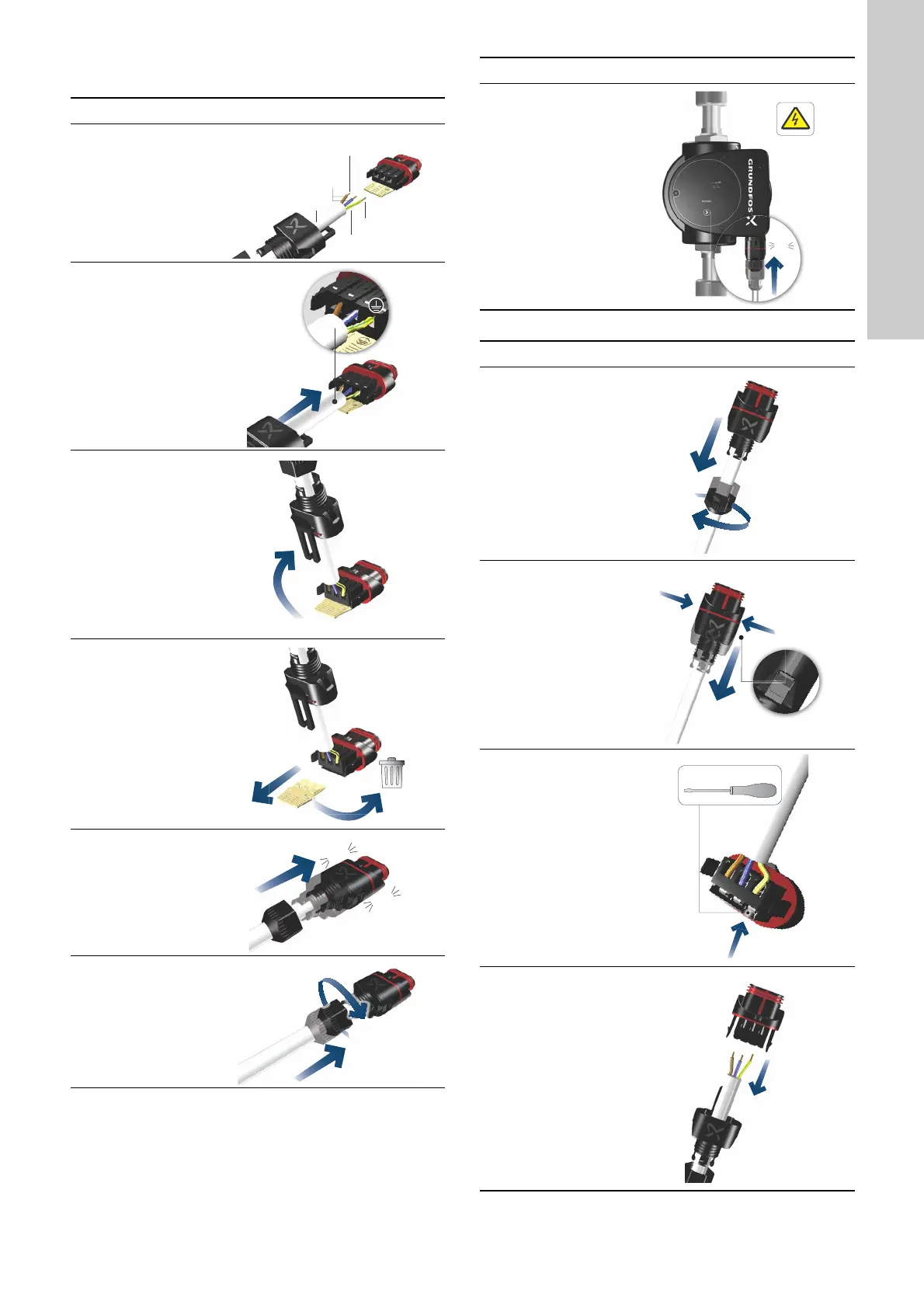

Plug-connected versions
Assembling the plug
Disassembling the plug
Step Action Illustration
1
Fit the cable gland
and plug cover to
the cable. Strip
the cable
conductors as
illustrated.
TM05 5538 3016
2
Connect the cable
conductors to the
power supply
plug.
TM05 5539 3016
3
Bend the cable
with the cable
conductors
pointing upwards.
TM05 5540 3016
4
Pull out the
conductor guide
plate and throw it
away.
TM05 5541 3016
5
Click the plug
cover onto the
power supply
plug.
TM05 5542 3016
6
Screw the cable
gland onto the
power supply
plug.
TM05 5543 3016
17 mm
12 mm
7 mm
Ø 5.5 - 10 mm
Max. 1.5 mm
2
Click
Click
7
Insert the power
supply plug into
the male plug in
the control box.
TM05 5544 3016
Step Action Illustration
1
Loosen the cable
gland and remove
it from the plug.
TM05 5545 3016
2
Pull off the plug
cover while
pressing on both
sides.
TM05 5546 3016
3
Loosen the cable
conductors one by
one by pressing a
screwdriver gently
into the terminal
clip.
TM05 5547 3016
4
The plug has now
been removed
from the power
supply plug.
TM05 5548 3016
Step Action Illustration
Click
x 3
Max 0.8 x 4

Grundfos MAGNA1 Specifications

General

Pump Type	Circulator Pump
Flow Range	0.5 - 12 m³/h
Maximum Flow	12 m³/h
Maximum Head	10 m
Maximum Liquid Temperature	110°C
Maximum Operating Pressure	10 bar
Power Supply	230 V, 50/60 Hz
Enclosure Class	IP42
Insulation Class	F
Pump Housing	Cast Iron
Installation Length	180 mm
Series	MAGNA1
Energy Efficiency Class	A
Liquid Temperature Range	2°C to 110°C
Approvals	CE, EAC
Ambient Temperature Range	0 .. 40 °C
