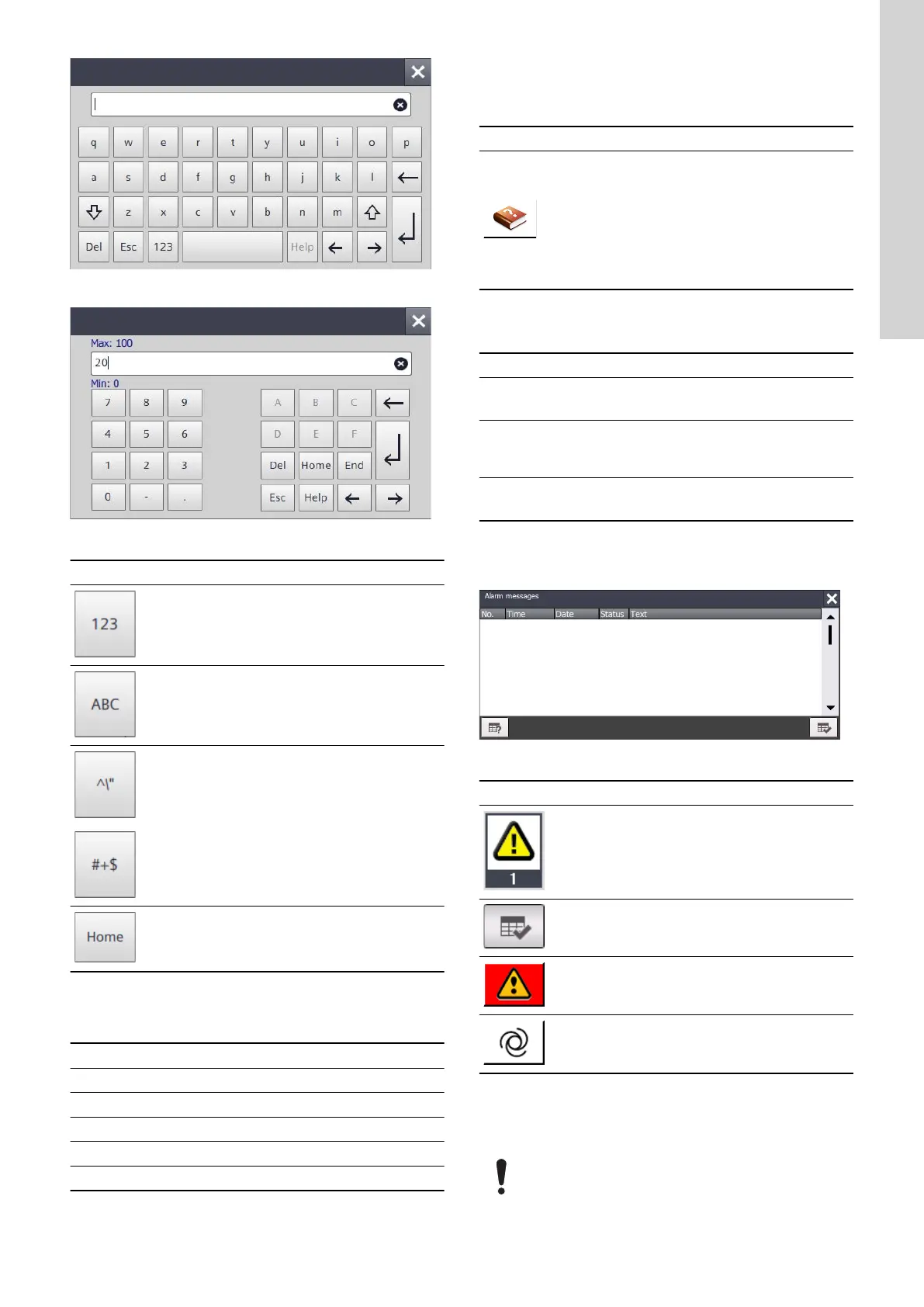

TM070047
Fig. Alphanumeric keyboard
TM070046
Fig. Numeric keyboard
Symbol Description
Push this symbol to switch to the numeric
keyboard.
Push this symbol to switch to the alphanumeric
keyboard.
Push this symbols to toggle special characters.
Push this symbol to set the cursor to the start of
the input field.
8.3.2.3 Colours of components on touchscreen
The status of the different components is shown with different
colours on the touchscreen.
Colour
Description
Grey Component inactive
White Component switched off
Green Component switched on or active without fault
Yellow Component pre-alarm / warning
Red Component faulty
8.3.2.4 Help function
The system provides a context-sensitive help function on the
touchscreen.
Symbol Description
Push this symbol to activate the context-sensitive
help function in the active menu.
The symbol turns green to indicate the active help
function.
Touch the element you require help for to see the
help information.
Push this symbol again to deactivate the help
function.
8.3.2.5 Alarms and messages
The system distinguishes several types of messages:
Message type Description
Alarm
A critical fault has occurred.
The system stops.
System message
Message about changes in system status.
User has logged off, etc.
The system keeps running.
Diagnostic
message
Messages generated by the CPU.
The system keeps running.
Alarm messages
In case of an alarm, the following dialogue opens and displays a
message:
PD412E-D3005
Fig.
Alarm messages
Symbol Description
This symbol flashes in the top right corner of the
touchscreen to indicate an active alarm. The
number in the symbol shows the number of active
alarms.
Remedy the causes of all alarms.
Select a message and push this symbol to
acknowledge the message.
Close the dialogue with the [X] key.
Push this symbol in the active menu to reset all
alarms.
Push this symbol to restart the system in automatic
mode.
If operation mode "Manual" is active, only the faulty component will
be switched off. The operation mode "Manual" stays active.
If operation mode "Automatic" is active, the system stops and the
automatic mode will be deactivated.
As long as a fault is present or not acknowledged, it is not
possible to activate the operation mode "Automatic".
19
