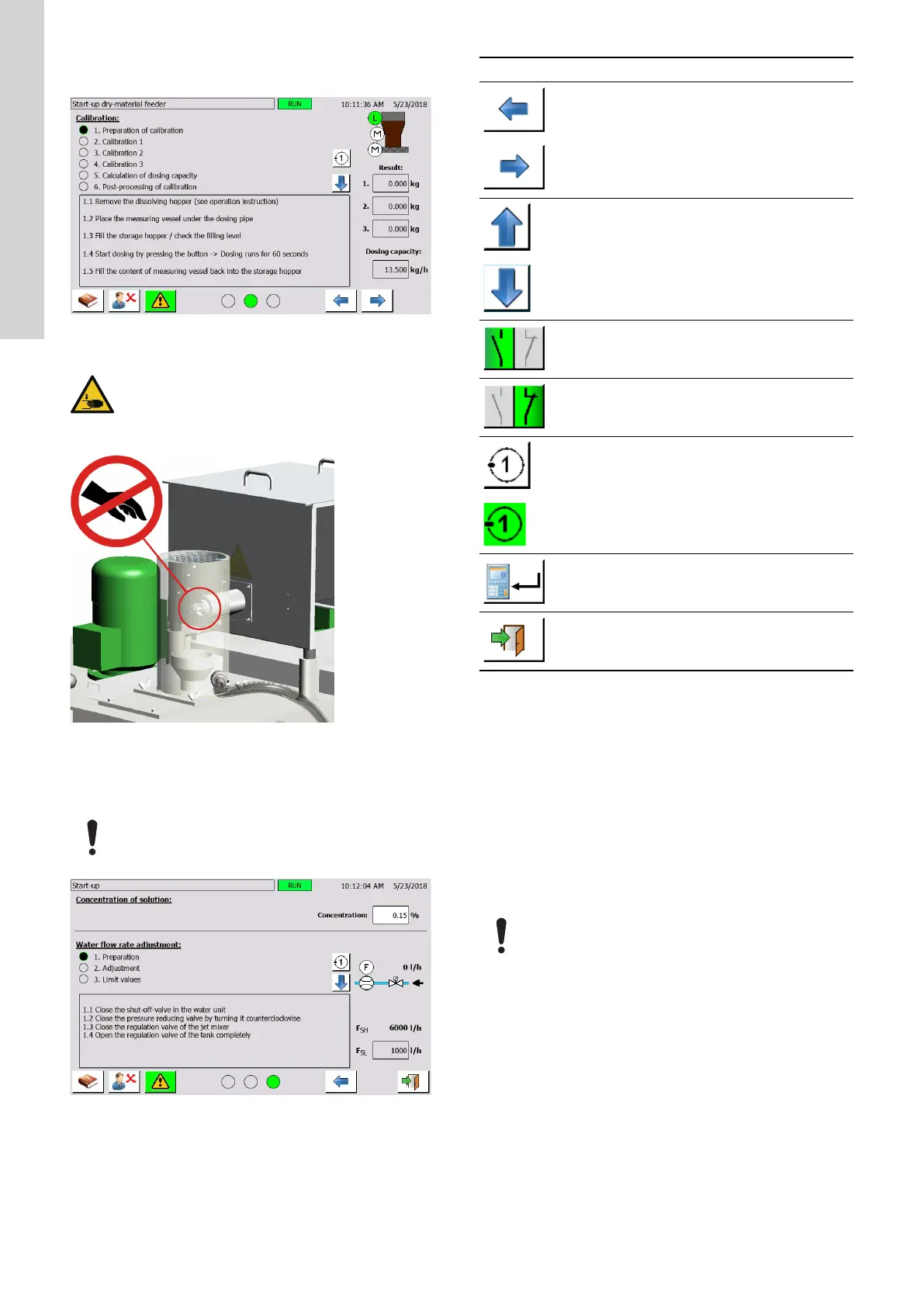

The next menu guides through the calibration of the dry-material
feeder.
PD412E-D1220
Fig. Start-up dry-material feeder
CAUTION
Crushing of hands
Minor or moderate personal injury
‐ After removing the dissolving hopper, do not reach into
the dosing screw. The dosing screw starts running
when you switch on the dry-material feeder.
TM072373
For removing the dissolving hopper, see 9.5 Checking and cleaning
the dissolving hopper
The next menu guides through the concentration adjustment of the
prepared solution and through the water flow adjustment.
Flow rates exceeding the upper limit of the water flow
sensor can damage the sensor.
PD412E-D1230
Fig. Start-up
Perform the procedure step by step as described in the menus.
Symbol
Description
Push these symbols to navigate through the
menus.
Push these symbols to navigate through the main
steps.
Indicates that contact type NO (normally open) is
active.
Push this symbol to switch the contact type.
Indicates that contact type NC (normally closed) is
active.
Push this symbol to switch the contact type.
Push these symbols to switch on or off the dry-
material feeder.
• Green: Switched on
• White: Switched off
Push this symbol to start the automatic calculation
of the dosing capacity.
Push this symbol to revert to the previous menu.
After commissioning create a backup of your settings.
Related information
8.8.1 Data backup
7.2 Commissioning for operation with liquid
concentrate
Commissioning must be done by certified service persons.
Wear personal protective equipment.
Observe the chemical manufacturer's safety data sheets
(SDS) and safety instructions of the used chemicals.
Make sure that all electrical, hydraulic and mechanical
installation is done correctly and all system components
are ready for operation. The system must be stopped and
control mode must be "Local".
Some pre-assembled mechanical and hydraulic
connections in the system are loosened for transport.
Make sure all connections are tightened before
commissioning.
Do not step on the system. The system is not designed to
carry the weight of a person.
Make sure that the liquid-concentrate line is connected
with a foot valve and installed with flooded suction to
avoid dry-running of the pump.
Initial startup
After switching on the main switch, the PLC and the touch panel
perform a self test.
After approximately 40 seconds the menu System overview is
displayed.
An alarm that indicates wrong input values is displayed, because
the system is not yet correctly parametrised and
commissioned. Acknowledge the alarm after commissioning.
16
