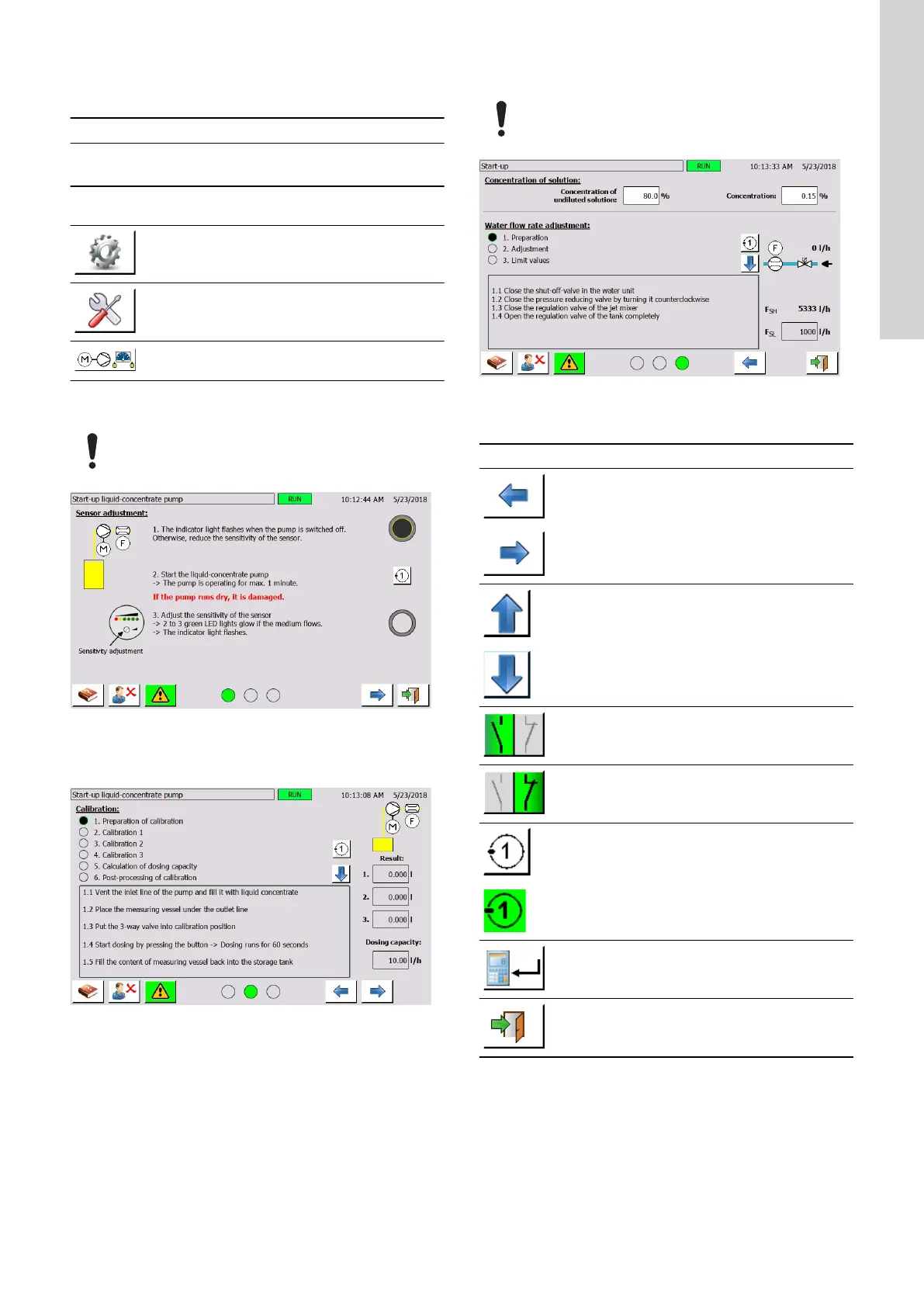

Commissioning menus
This sequence of menus guides the certified service person through
the commissioning procedure.
Menu action Required user level
Access menu
Change settings
3 System Service
To open the first commissioning menu:
Push this symbol to open the menu System menu.
Push this symbol to open the menu Service menu.
Push this symbol to open the first commissioning
menu.
The first menu guides through the adjustment of the liquid-
concentrate level sensor.
Make sure the liquid-concentrate pump does not run dry
during commissioning.
PD412E-D1410
Fig. Start-up liquid-concentrate pump
The next menu guides through the calibration of the liquid-
concentrate pump.
PD412E-D1420
Fig.
Start-up liquid-concentrate pump
The next menu guides through the concentration adjustment of the
prepared solution and through the water flow adjustment.
Flow rates exceeding the upper limit of the water flow
sensor can damage the sensor.
PD412E-D1430
Fig. Start-up
Perform the procedure step by step as described in the menus.
Symbol Description
Push these symbols to navigate through the
menus.
Push these symbols to navigate through the main
steps.
Indicates that contact type NO (normally open) is
active.
Push this symbol to switch the contact type.
Indicates that contact type NC (normally closed) is
active.
Push this symbol to switch the contact type.
Push these symbols to switch on or off the liquid-
concentrate pump.
• Green: Switched on
• White: Switched off
Push this symbol to start the automatic calculation
of the dosing capacity.
Push this symbol to revert to the previous menu.
After commissioning create a backup of your settings.
Related information
8.8.1 Data backup
