6.4 Identification
6.4.1 Nameplate

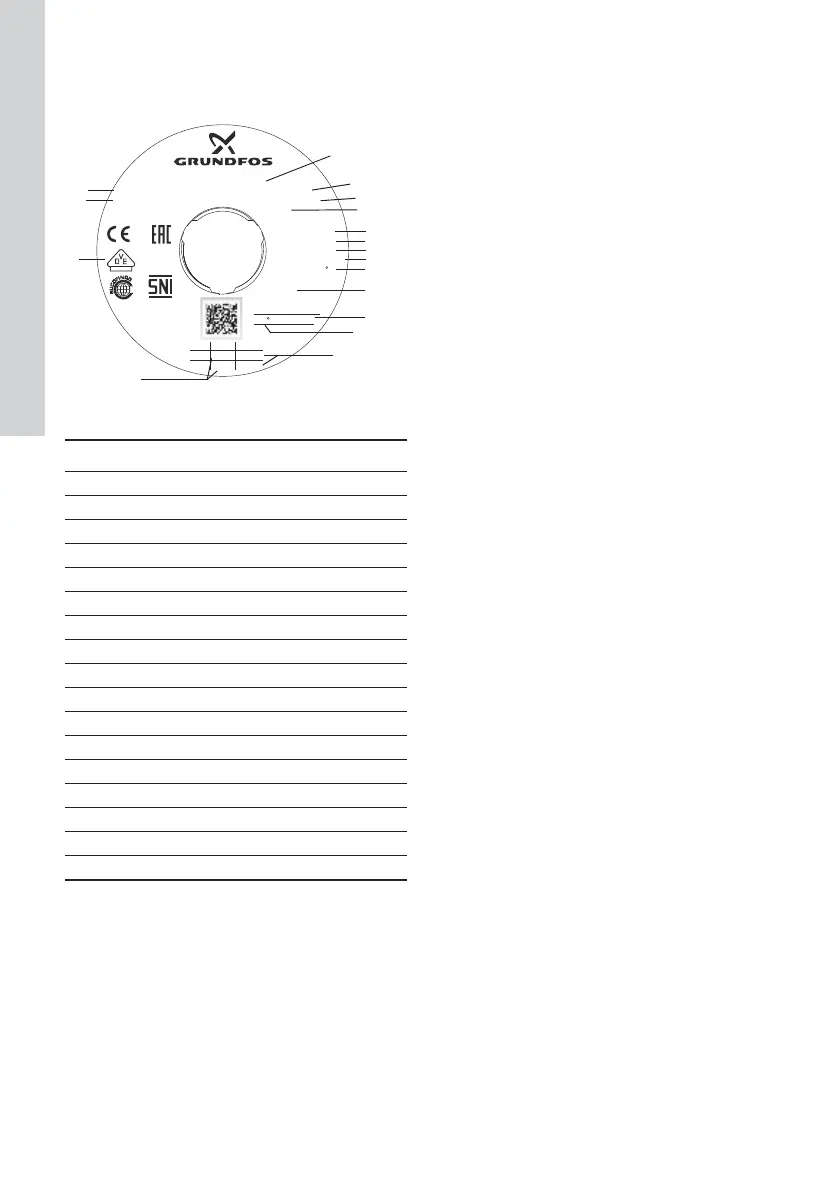

Fig. 12 Example of nameplate
TM06 4340 2015
Pos. Description
1 Type designation
2 Product number
3 Serial number
4 Production code (year and week)
5 Maximum head
6 Minimum head
7 Rated head
8 Rated flow rate
9 Maximum ambient temperature
10 IP class
11 Maximum operation pressure
12 Maximum liquid temperature
13 Minimum and maximum rated power
14 Model
15 Voltage and frequency
16 Approvals
17 Minimum and maximum rated current
DK-8850 Bjerringbro, Denmark
SCALA2 3-45 AKCHDE
Model A
200-240V 50/60Hz
Made in Serbia
P/N 99999999
S/N 
P/C 1519
H
max
H min
H nom
Q nom
45 m
16 m
27 m
3
m /h
3
45
C/
55
C
T amb.max
IPX4D
I(A)
Min.
Max.
P1(W)
0.01
2.8 550
2
T
liq.max /P syst.max:
1MPa
NRP XXX-XXX-XXXXXX
PCS XXXXX.XX.XX 04-6292.2.41-2003
LSPr-022-IDN
1
2
3
4
5
6
7
8
9
10
11
13
14
15
16
1
12

Grundfos SCALA Specifications

General

Frequency	50/60 Hz
Maximum Suction Lift	8 m
Installation	Horizontal
Approvals	CE
Pumped liquid	Water
