Grundfos SCALA User Manual

Bahasa Indonesia (ID)
28
5. Menyimpan dan menangani produk
5.1 Penanganan
5.2 Penyimpanan
Apabila pompa akan disimpan untuk periode
tertentu, kuras lalu simpanlah pompa di tempat yang
kering.
Kisaran suhu selama penyimpanan harus -40
sampai 70 °C (104 sampai 158 °F).
5.3 Persiapan untuk musim dingin
Jika pompa tidak akan dioperasikan selama musim
dingin dan dapat membeku, pompa harus diputus
dari pasokan listrik dan dipersiapkan untuk musim
dingin.
Lanjutkan sebagai berikut:
1. Matikan pompa dengan menekan tombol on/off
.
2. Putuskan pasokan listrik.
3. Buka keran untuk melepaskan tekanan dalam
sistem pipa.
4. Tutup katup isolasi dan/atau kuras pipa.
5. Secara bertahap longgarkan sumbat pancing
untuk melepaskan tekanan dalam pompa.
6. Lepas sumbat pengurasan untuk menguras
pompa. Lihat gbr 10.

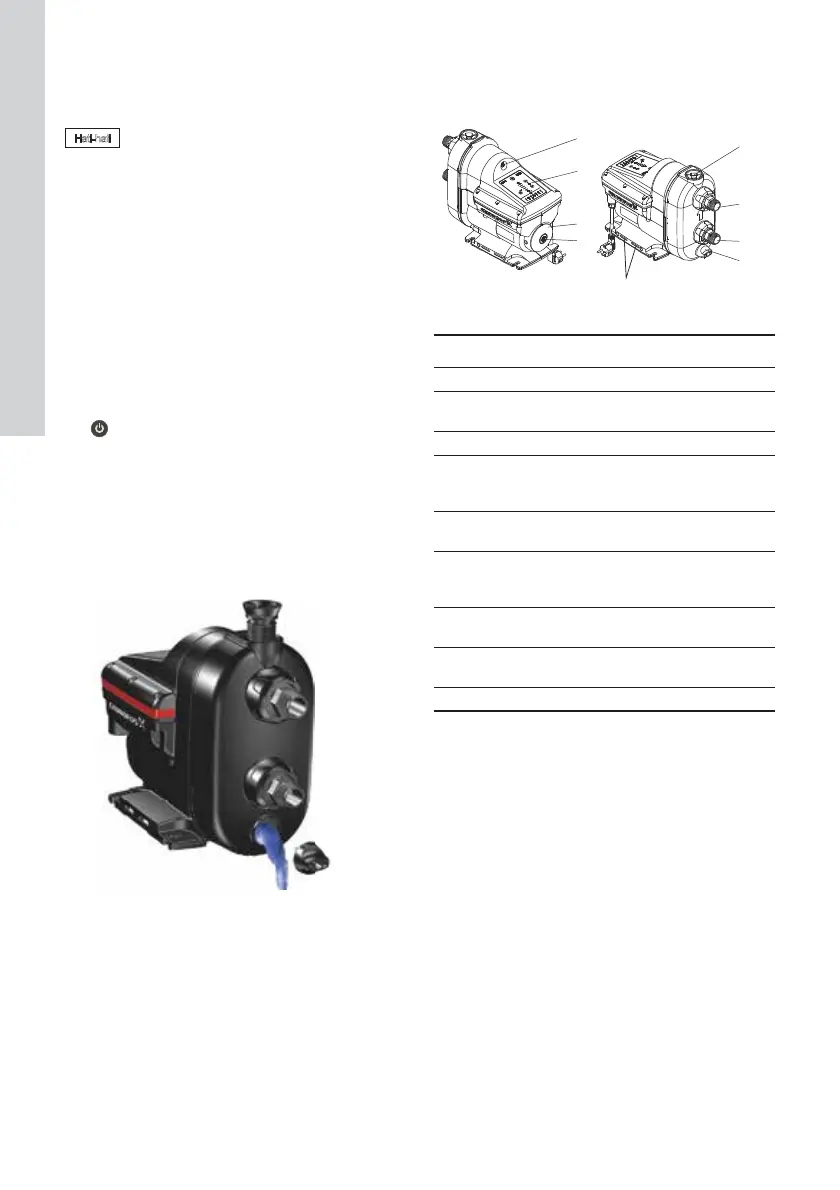

Gbr. 10 Menguras pompa
5.3.1 Menghidupkan pompa setelah musim
dingin
Pastikan pompa tidak tersumbat dengan mengikuti
langkah-langkah di bagian 9.1 Melepas sumbatan
pompa.
Lihat bagian 4. Menghidupkan produk.
6. Pengenalan produk
6.1 Keterangan produk
Gbr. 11 Pompa SCALA Grundfos
6.2 Pemakaian
Pompa ini cocok untuk meningkatkan tekanan air
bersih dalam sistem pasokan air rumah tangga.
6.3 Cairan yang dipompa
Pompa ini dirancang untuk air tawar bersih dan air
berklorin < 300 ppm.
+DWLKDWL
Jaga untuk tidak menjatuhkan pompa
karena bisa pecah.
TM06 4203 1615
TM06 3818 1015
Pos. Keterangan
1 Katup udara untuk tangki tekanan bawaan
2
Panel operasi. Lihat bagian 7. Fungsi
kontrol.
3 Pelat label. Lihat bagian 6.4.1 Pelat label.
4
Sumbat untuk mengakses poros pompa.
Lihat bagian 9.1 Melepas sumbatan
pompa.
5
Sumbat pancing. Lihat bagian
4.1 Pemancingan pompa.
6
Lubang pelepasan. Dengan ± 5 °
sambungan fleksibel. Lihat bagian
3.4.1 Instalasi pipa.
7
Lubang hisap. Dengan ± 5 ° sambungan
fleksibel. Lihat bagian 3.4.1 Instalasi pipa.
8
Sumbat penguras. Lihat bagian
5.3 Persiapan untuk musim dingin
9 Lubang ventilasi. Tidak boleh terendam.
1
5
6
7
8
2
3
4
9
