12. Fault finding the product
12.1 Grundfos Eye operating indications
12.2 Fault resetting
You can reset a fault indication in one of the
following ways:
• When you have eliminated the fault cause, reset
the pump manually by pressing the button.
The pump will then revert to normal duty.
• If the fault disappears by itself, the pump will
attempt to reset automatically and the fault
indication will disappear if automatic reset is
successful and provided that you have enabled
"Auto reset" in the service menu.

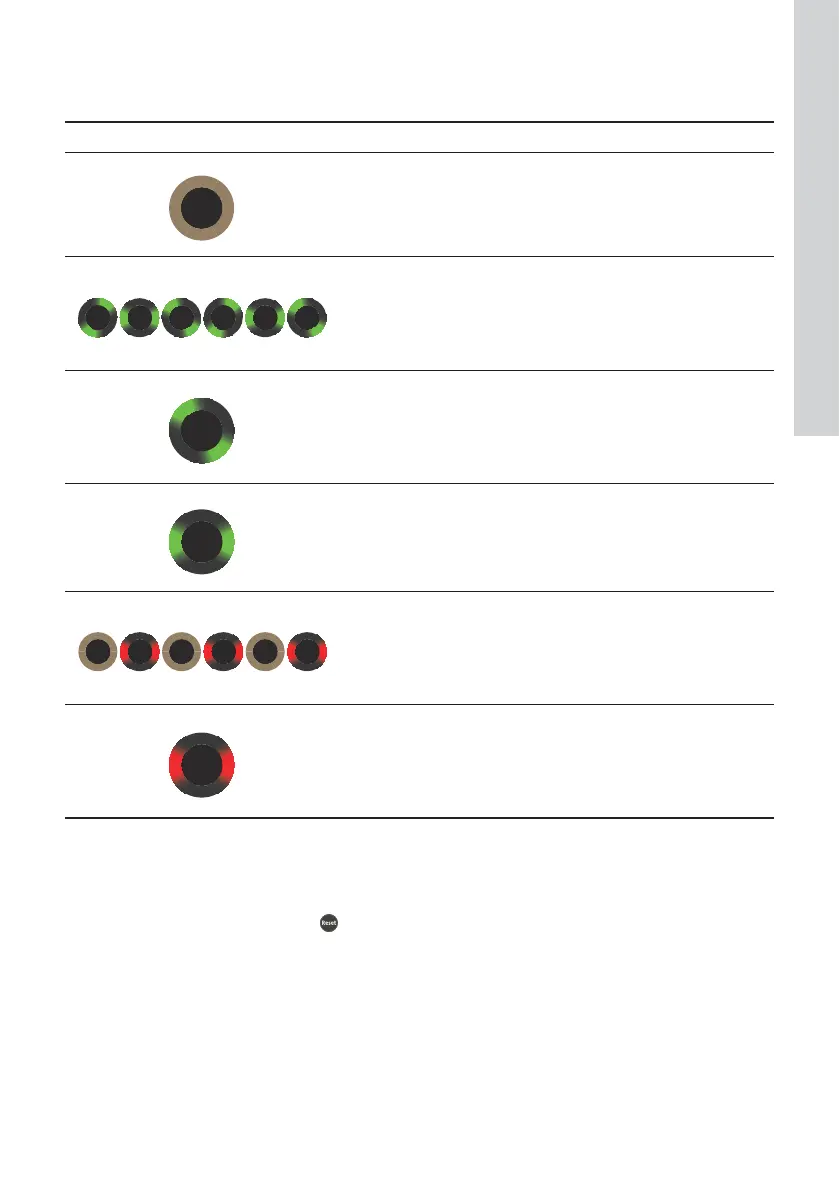

Grundfos Eye Indication Description
No lights are on.
The power is off.
The pump is not running.
Two opposite green indicator
lights running in the direction of
rotation of the pump.
The power is on.
The pump is running.
Two opposite green indicator
lights at a 45 ° angle is the icon
used throughout this document
for pump running.
The power is on.
The pump is running.
Two opposite green indicator
lights permanently on.
The power is on.
The pump is not running.
Two opposite red indicator lights
flashing simultaneously.
Alarm.
The pump has stopped.
Two opposite red indicator lights
is the icon used throughout this
document for pump stopped.
Alarm.
The pump has stopped.

Grundfos SCALA Specifications

General

Frequency	50/60 Hz
Maximum Suction Lift	8 m
Installation	Horizontal
Approvals	CE
Pumped liquid	Water
