Make sure that the electrical installation

supports the rated current [A] of the

product. See the nameplate of this

product.

TM075384

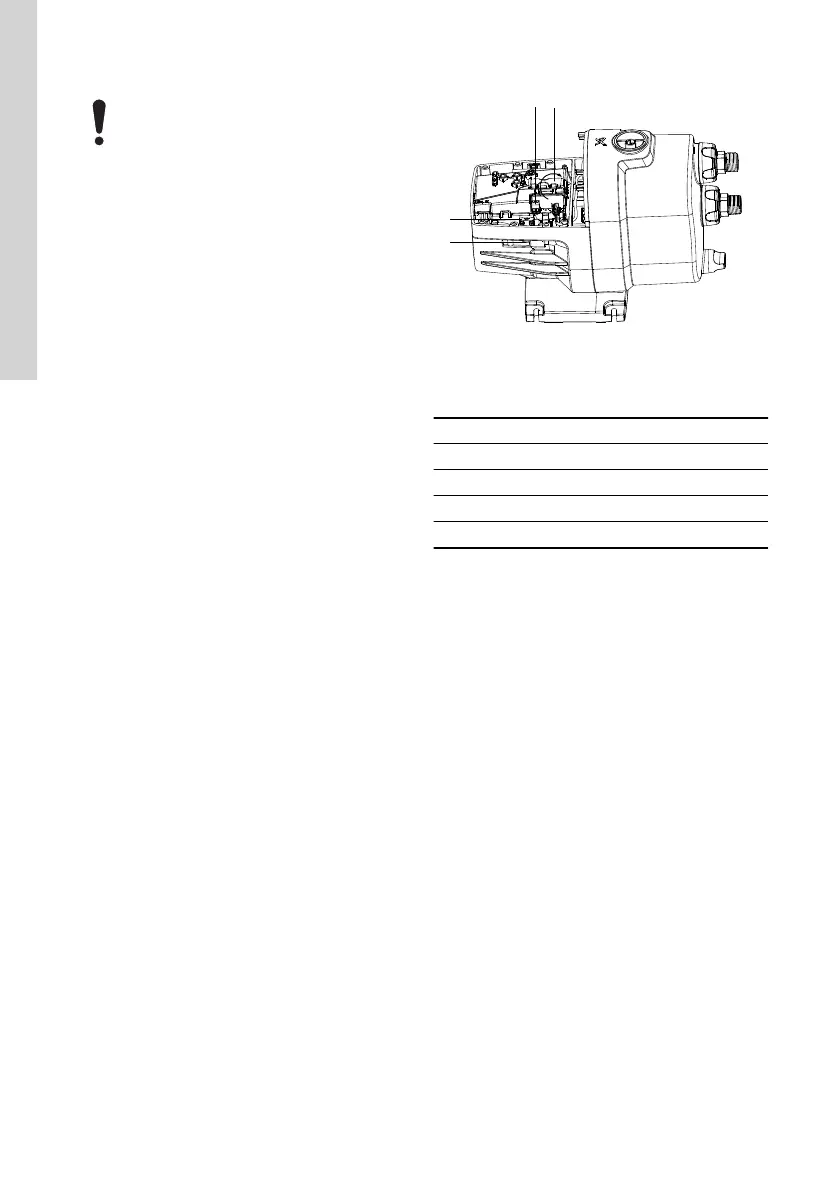

Connecting external input

Pos. Description

1 Lid on PCB cover

2 Terminals

3 Cable clip

4 Cable gland

1. Remove the screws and lift the pump cover.

2. Open the lid on the PCB cover.

3. Pull the cable through the gland and the clip.

4. Connect to the terminals.

5. Fix the clip to hold cable in place.

6. Close the lid.

7. Return the pump cover and screw it in place.

8. Power on the pump and connect with Grundfos

GO Remote.
