Grundfos SCALA1 5-55 User Manual

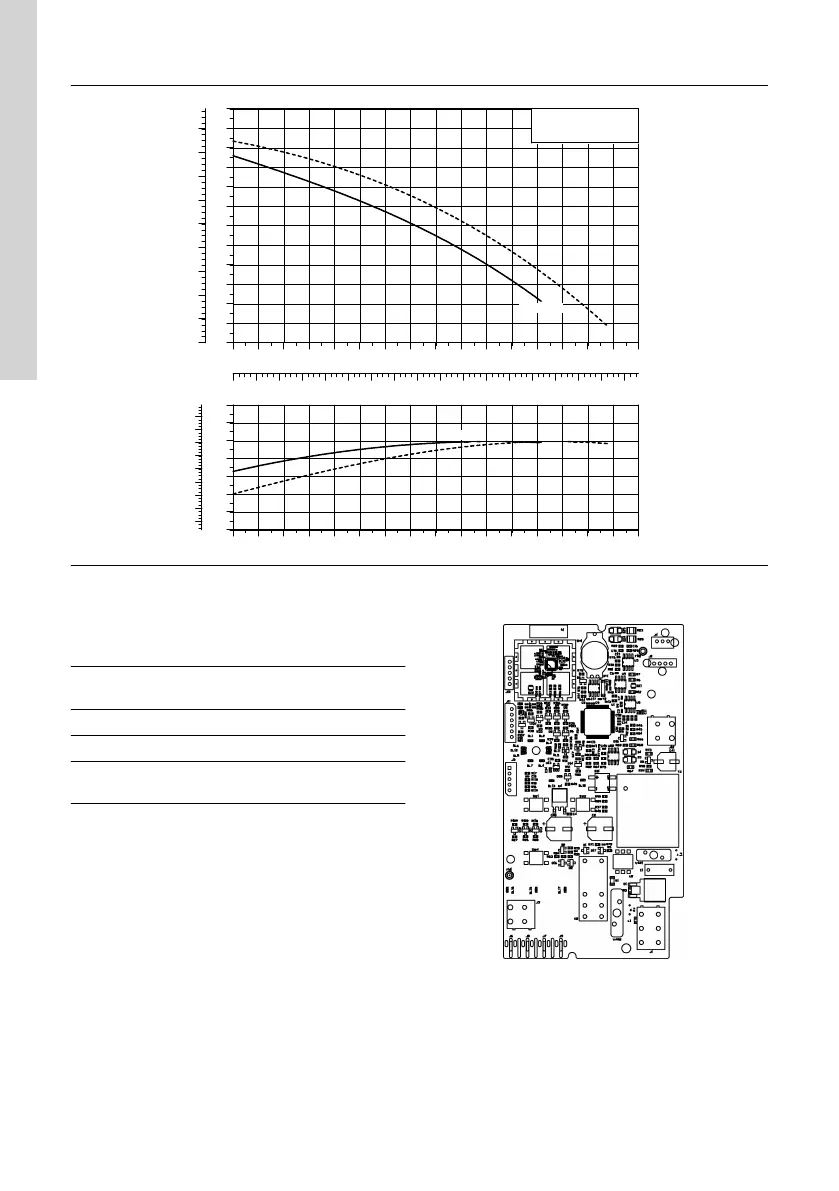

0.0 0.5 1.0 1.5 2.0 2.5 3.0 3.5 4.0 4.5 5.0 5.5 6.0 6.5 7.0
Q [m³/h]
0
5
10
15
20
25
30
35
40
45
50
55
H
[m]
0 2 4 6 8 10 12 14 16 18 20 22 24 26 28
Q [US GPM]
0
20
40
60
80
100
120
140
160
180
[ft]
H
SCALA1 5-55
Airhandling
0.0 0.5 1.0 1.5 2.0 2.5 3.0 3.5 4.0 4.5 5.0 5.5 6.0 6.5 7.0
Q [m³/h]
200
400
600
800
1000
1200
1400
[W]
P1
0.4
0.6
0.8
1.0
1.2
1.4
1.6
1.8
[hp]
P1
Airhandling
TM075237
17. Approvals
17.1 Bluetooth technology information
Frequency of operation
2400 – 2483.5 MHz (ISM
band)
Modulation Type GFSK
Data Rate 1 Mbps
Transmit power
5 dBm EIRP with internal
antenna
17.2 Radiofrequency radiation exposure
0
0
0
0
0
FCC ID: OG3-SCALA
IC: 10447A-SCALA
TM075015
FCC ID:OG3-SCALA1, IC:10447A-SCALA1
This equipment complies with FCC and ISED
radiation exposure limits set forth for an uncontrolled
environment. This equipment must be installed and
operated with a minimum distance of 20 cm (7.87
38
English (GB)

Grundfos SCALA1 5-55 Specifications

General

Product Name	Grundfos SCALA1 5-55
Category	Water Pump
Max Head	55 m
Max Flow Rate	5 m³/h
Inlet/Outlet Size	1"
System Pressure	10 bar
Enclosure Class	IPX4D
Pumped Liquid	Clean water
Frequency	50/60 Hz
Max Pressure	10 bar
Motor Type	Permanent Magnet Motor
Protection Class	X4D
Liquid Temperature	0°C to 45°C
Inlet Pressure	6 bar
Approvals	CE, EAC
