5. Identification
5.1 Nameplate
All pumps can be identified by means of the nameplate on the
motor top cover. See fig. 2. If the nameplate is missing or
damaged, the pump can be identified by the serial number
stamped under the nameplate.

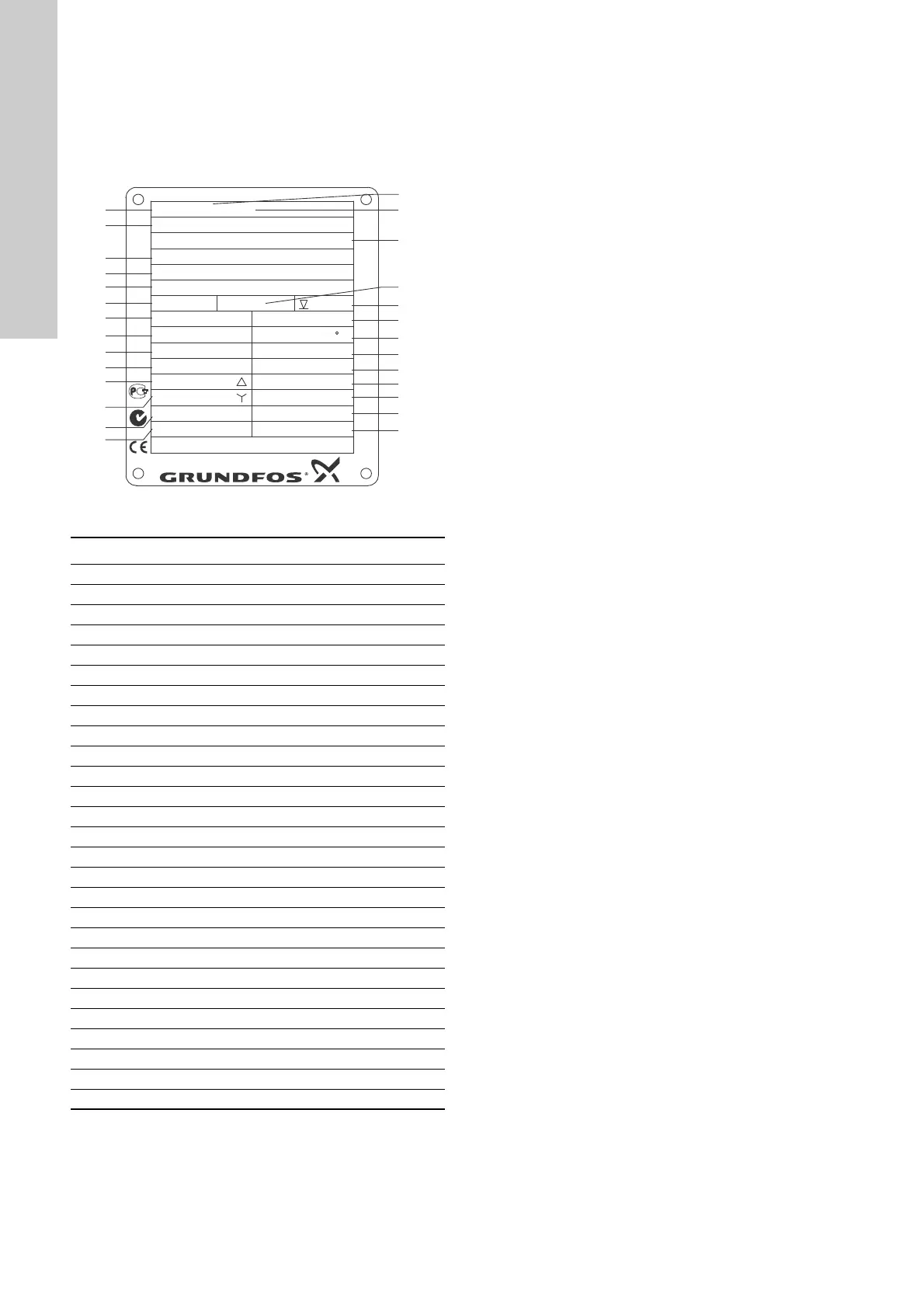

Fig. 4 Pump nameplate
TM05 2533 0212
Pos. Description
1 Approvals
2 EU explosion-proof motor Ex-symbol
3 Ex - description ATEX
4 Explosion protection certificate No.
5 Ex description
6 Pump type designation
7 Pump type designation (line 2)
8 Model number
9 Production code, year/week
10 Enclosure class
11 Maximum installation depth
12 Maximum head
13 Maximum flow rate
14 Number of phases
15 Maximum liquid temperature
16 Rated power input P1
17 Rated power output P2
18 Rated speed
19 Cos φ, 1/1-load
20 Rated voltage I
21 Rated current I
22 Rated voltage II
23 Rated current II
24 Frequency
25 Insulation class
26 Approval
27 Weight
Type: SL1.120.200.220.4.
52M.S.N.5.1D
Model: 9805780400000001
P.c. 1209
IP68 20 m
Hmax:
Motor:
P1:
Qmax:
Tmax.:
33
n:
kg
3
min
380-415
kW
V
A
50
m
25
558 m h/
3
40 c
kW
P2: 22
1474
-1
Cos :
0.85
V
A40-44
Hz Insul.class: H
EN 12050-1 Weight: 340
Made in Tatabanya. Hungary
~
98085993
56
A
R
4
8
12
13
15
11
10
14
20
18
22
16
17
19
25
27
24
9
1
5
2
3
6
7
26
21
23
