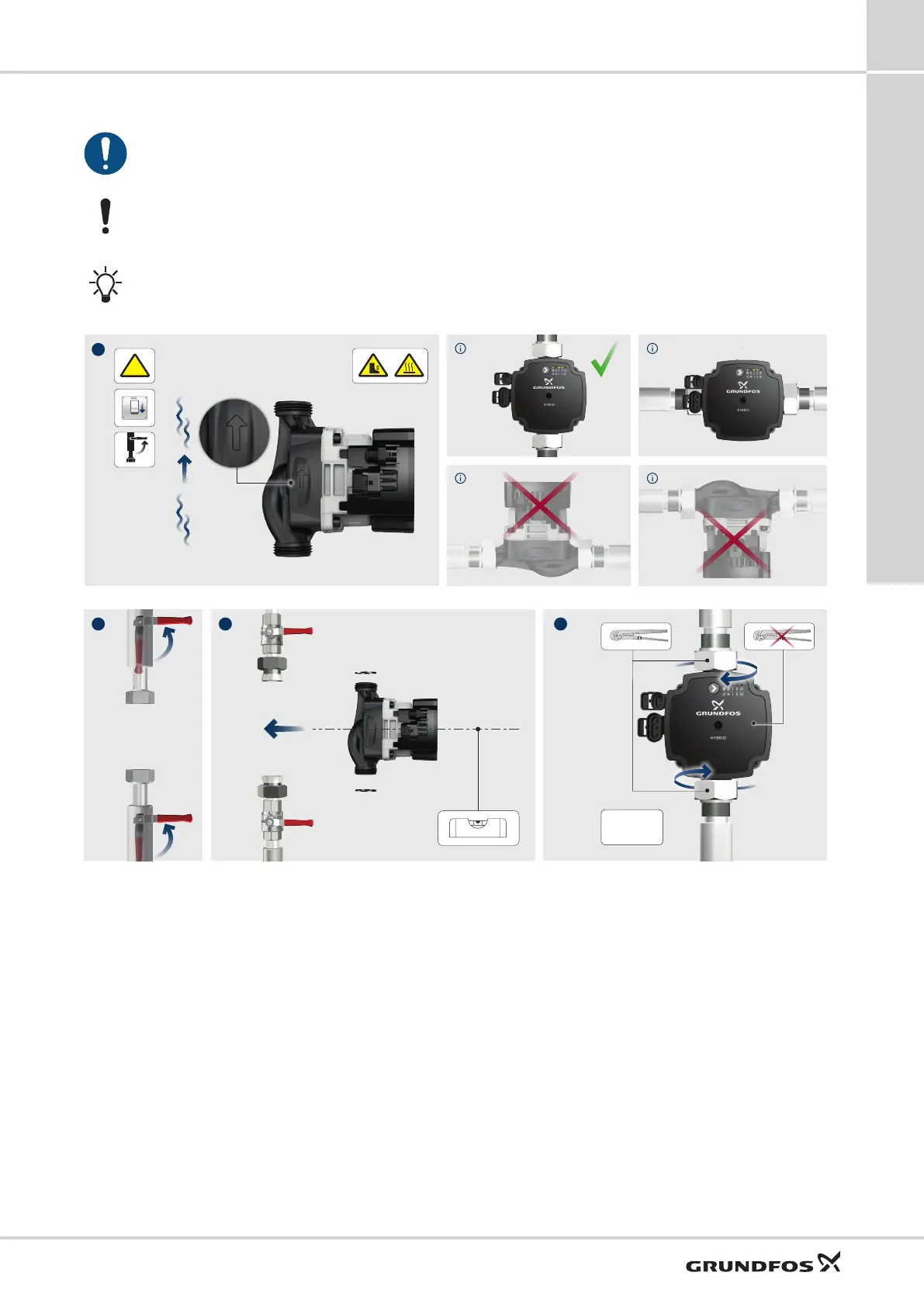

Mechanical installation
Mechanical installation must be carried out by trained
persons in accordance with local regulations.
The pump must always be installed with horizontal
motor shaft within ± 5 °.
Arrows on the pump housing indicate the liquid flow
direction through the pump. The pump is designed to be
installed with horizontal shaft pumping upwards,
downwards or horizontally.
For mounting dimensions, see the data sheets.
• The pump must be installed in the system in such a
way that no major amount of air flowing through or
gathering in the pump housing affects the pump when
it is out of operation.
• If an additional non-return valve is installed in the flow
pipe, there is a high risk of dry-running, because the
air cannot pass the valve.
• It must be possible to vent the system at the highest
part of each system segment.
• Permanent venting is recommended.
0/Off
1/On
2 3 4
PPS =
Max. 30 Nm
TM064412
Mechanical installation
UPM3
10
47
Installation
