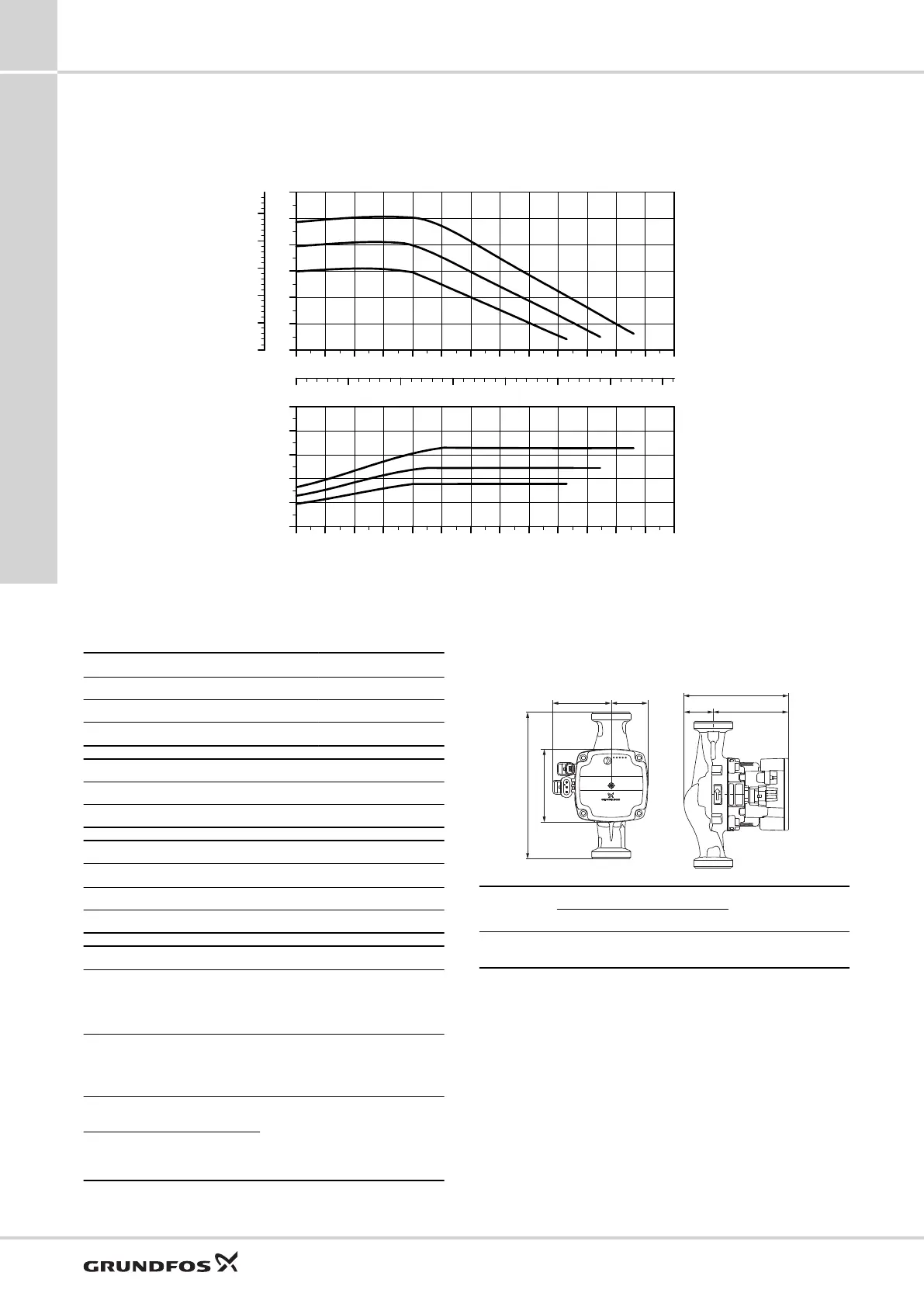

Grundfos UPM3S Series User Manual

UPM3(K) DHW 15-50 CIL3 PPS
(GFNKB)
0.0 0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8 2.0 2.2
Q [m³/h]
0.0 0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8 2.0 2.2
Q [m³/h]
0.0 0.1 0.2 0.3 0.4 0.5 0.6
Q [l/s]
[W]
P1
0
10
20
30
40
50
0
1
2
3
4
5
[m]
H
0
10
20
30
40
50
[kPa]
p
TM064077
EEI ≤ 0.20 Part 3
P
L,avg
≤ 16 W
Setting
Max. head
nom
Max. P
1 nom
Curve 1 3 m 18 W
Curve 2 4 m 25 W
Curve 3 5 m 33 W
Pump settings
PWM A PWM C PP CP CC
3 - - - -
Electrical data, 1 x 230 V, 50 Hz
Speed
P
1
[W] I
1/1
[A]
Min. 2 0.04
Max. 33 0.34
Technical data
System
pressure
Max. 1.0 MPa
(10 bar)
Enclosure
class
IP44 (non-
condensing)
K: IPX4D
(condensing)
Minimum inlet
pressure
0.05 MPa (0.50
bar) at 95 °C
liquid
temperature
Motor
protection
No external
protection needed
Liquid
temperature
2-95 °C (TF95)
Approval
and
marking
VDE, CE, drinking
water approvals
KTW (DE), DVGW
W270 (DE), ACS
(FR), WRAS (GB)
Temporary
hardness
Max. 3 mmol/l
CaCO3 (16.8 °
dH)
Dimensions
B1 B2
H3
H2H1
L1
L3
TM063879
Pump type
Dimensions [mm]
Connections
[inch]
Weight
[kg]
L1 L3 B1 B2 H1 H2 H3
15-50 CIL3
PPS
130 90 72 45 36 92 128 R 1/2 / G 1 1.3
PWM speed curves on request.
UPM3
17
96
Data sheets

Grundfos UPM3S Series Specifications

General

Brand	Grundfos
Model	UPM3S Series
Category	Water Pump
Language	English
