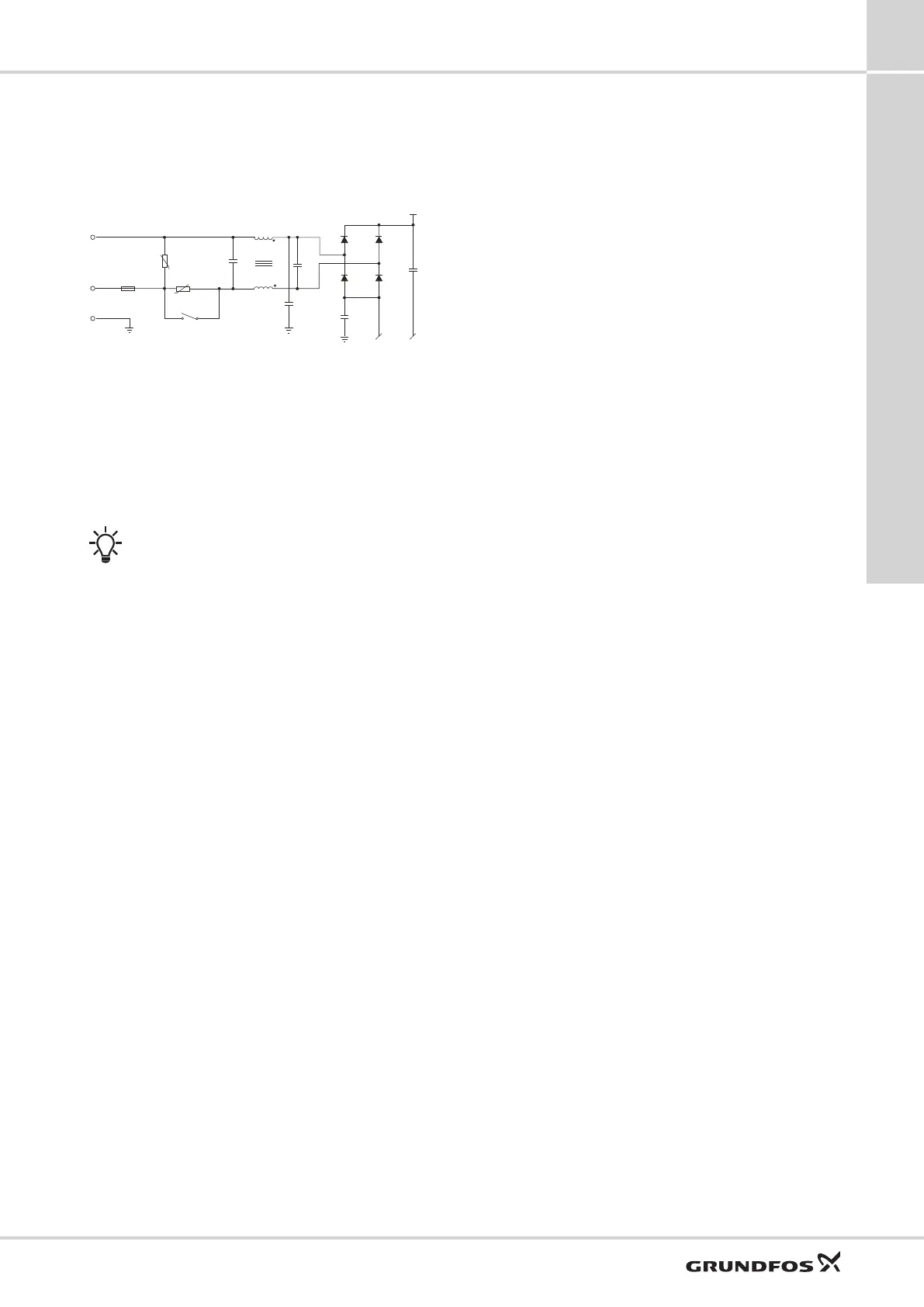

Relay and PTC (active - standard for UPM3
HYBRID variants)
We recommend that you use this option for pumps that
are not in permanent operation and can be interrupted by
a relay of the controller of the appliance.
EARTH EARTH
EARTH
GND
GND
EARTH
VDR3
F1
PTC1
L
N
C43
2 1
3 4
L1
C14
C3
C4
D13 D15
D14D11
+
C6
DC+
2 3
RL1-B
TM060821
Relay
At startup the relay is open. In this mode the PTC resistor
is able to limit the inrush current down to a level of
approximately 4 A.
During operation the relay is closed. In this mode the
resistor is by-passed so that efficient operation is
guaranteed.
The inrush current is measured on a flicker network
according to IEC 61000-3-3:1994 + A1, + A2, Annex B.
Related information
Internal solutions in the pump
NTC resistor (passive option)
UPM3
11
51
Electrical installation
