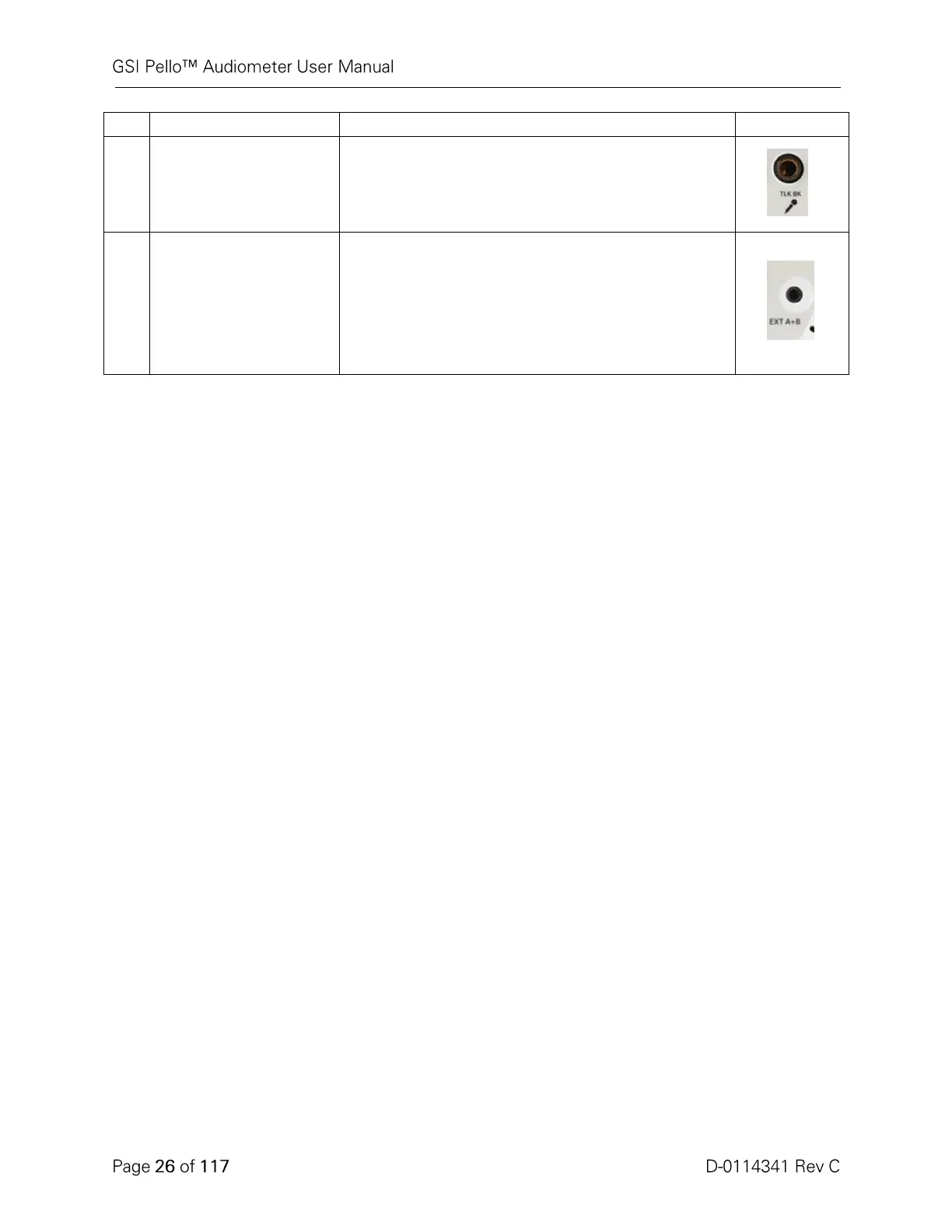

Connection
Description
Graphic
R1
0
Talkback Microphone
Input
6.35 mm
stereo jack
NOTE
: Microphone i
nputs are betwe
en .25 mV and 5
mV for a 0 dB re
ading on a VU indic
ator; the inp
ut
impedance is 3,2
00 ohm.
R11
Ext. A and B
3.5 mm
stereo jack
Input jacks for opt
ional digital m
usic play
er or CD
player input
NOTE:
External A
and B inputs are be
tween 15 m
V
and 500 mV for a
0 dB reading
on a VU indicato
r; the
input impedanc
e is 50,000
ohm.
26
28
Table of Contents
Default Chapter
3
Table of Contents
3
Indication for Use
7
Warranty
7
Audiometric Standards
8
Warnings, Cautions, and Errors
9
Status/Error Messages
10
Customer Responsibility
11
Elimination of Ambient Noise
11
Safety Precautions
14
Cautions - General
15
Warning - Connecting Additional Equipment
15
Warning - Electric Shock Hazards
15
Warning - Electric Grounding
16
Warning - Explosion
16
Warning - Line Voltage Brownout and Interruptions
16
Warning - Connections
16
Warning - Battery Safety
16
Warning - General
16
Shutdown Procedure
16
Recycling / Disposal
16
Regulatory Symbols
18
Audiometric Symbols
20
Chapter 1: Introduction
22
Chapter 2: Installation
23
External Inspection
23
Unpacking
23
Accessories
24
Chapter 3: Connectors, Controls and Indicators
26
Rear Panel
26
Right Side Panel
28
Left Side Panel
28
Bottom Panel Label
29
Chapter 4: Front Panel Controls
30
Power
30
Stimulus Intensity Level(S)
30
Talk Forward
31
Interlock
31
Tracking
31
Status / Audiogram Button
31
Data Transfer
31
Printing
32
Stimulus Channel 1
35
Stimulus Channel 2
35
Transducer Output Selector
36
Routing Output
36
Attenuators (HL Controls)
37
Channel 1 Present Bar / Interrupt
37
Channel 2 Interrupt Button
37
Frequency up / down
37
Data Store
37
Navigation Controls
38
Scorer / Timer
38
Monitoring
38
Test Type Buttons
38
Function Buttons
39
Chapter 5: Test Type Displays
40
Monitor
40
Tone Test Type - Audiogram
42
Tone Test Type - Status
46
Speech Test Type - Status
47
Speech Test Type - Audiogram
52
More Test Type
53
Chapter 6: Operation
54
Preliminary Checks
54
Typical Evaluations
55
Test Type Buttons
55
Routine Test Procedures
57
Threshold Determination (Pure Tone): Modified Hughson-Westlake
57
Spondaic Speech Testing, Speech Reception Threshold (SRT)
58
Word Recognition (PB Words)
58
Stenger Test
59
Chapter 7: Application Software & Integration
60
Config App
60
Instrument
61
Audiometry
61
GSI Instrument Services
62
GSI Suite
63
Otoaccess
63
Noah 4
63
Audbase
63
Chapter 8: Routine Maintenance
64
Biological Calibration Check
64
Periodic Checks
64
Earphone and Bone Vibrator Cords
64
Hum and Noise
64
Distortion and Frequency Shift
64
Speech Level Check
65
Internal Controls Check
65
Bone Vibrator Check
65
Masking Level Check
65
Talk Forward Check
65
Cleaning the System
65
Cleaning and Disinfecting Agents
66
Chapter 9 Optional Features and Functionality
67
High Frequency License
67
Special Test License
69
Ablb
71
Sisi
73
TEN Test
75
Tone Decay
77
Speech Plus License
79
More Test Type
79
Bkb-Sin
80
Quicksin
84
Azbio and Azbio Pediatric
87
Appendix 1: Specifications
88
Appendix 2: Calibration Reference & Maximum Levels
91
Earphones - Pure Tone RETSPL
92
Earphones - ANSI Speech RETSPL
93
Earphones - IEC Speech RETSPL
94
Earphones - Pure Tone Max HL
95
Earphones - NB Noise Effective Masking Level
96
Earphones - NB Noise Max HL
97
Earphones - ANSI Speech Max HL
98
Earphones - IEC Speech Max HL
98
Insert Earphones - Pure Tone RETSPL
99
Insert Earphones - ANSI Speech RETSPL
100
Insert Earphones - IEC Speech RETSPL
100
Insert Earphones - Pure Tone Max HL
101
Insert Earphones - NB Noise Effective Masking Level
102
Insert Earphones - NB Noise Max HL
103
Insert Earphones - ANSI Speech Max HL
104
Insert Earphones - IEC Speech Max HL
104
Bone Vibrators - Pure Tone RETFL
105
Bone Vibrators - ANSI Speech RETSPL
106
Bone Vibrators - IEC Speech RETSPL
106
Bone Vibrators - Pure Tone Max HL
107
Bone Vibrators - NB Noise Effective Masking Level
108
Bone Vibrators - NB Noise Max HL
109
Bone Vibrators - ANSI Speech Max HL
110
Bone Vibrators - IEC Speech Max HL
110
Free Field Speakers - ANSI RETSPL and Max HL
111
Appendix 4: EMC Compatibility
113
Electromagnetic Compatibility
114
Electrical Safety, EMC and Associated Standards
114
Guidance and Manufacturer's Declaration - Electromagnetic Emissions
114
Recommended Separation Distances between Portable and Mobile RF Communications Equipment and the GSI Pello
115
Guidance and Manufacturer's Declaration - Electromagnetic Immunity
115
Guidance and Manufacturer's Declaration - Electromagnetic Immunity
116
Appendix 4: Reference Materials
118
5
Based on 1 rating
Ask a question
Give review
Questions and Answers:
Need help?
Do you have a question about the GSi PELLO and is the answer not in the manual?
Ask a question
GSi PELLO Specifications
General
Brand
GSi
Model
PELLO
Category
Medical Equipment
Language
