Chapter 3: Connectors, Controls and Indicators
Rear Panel

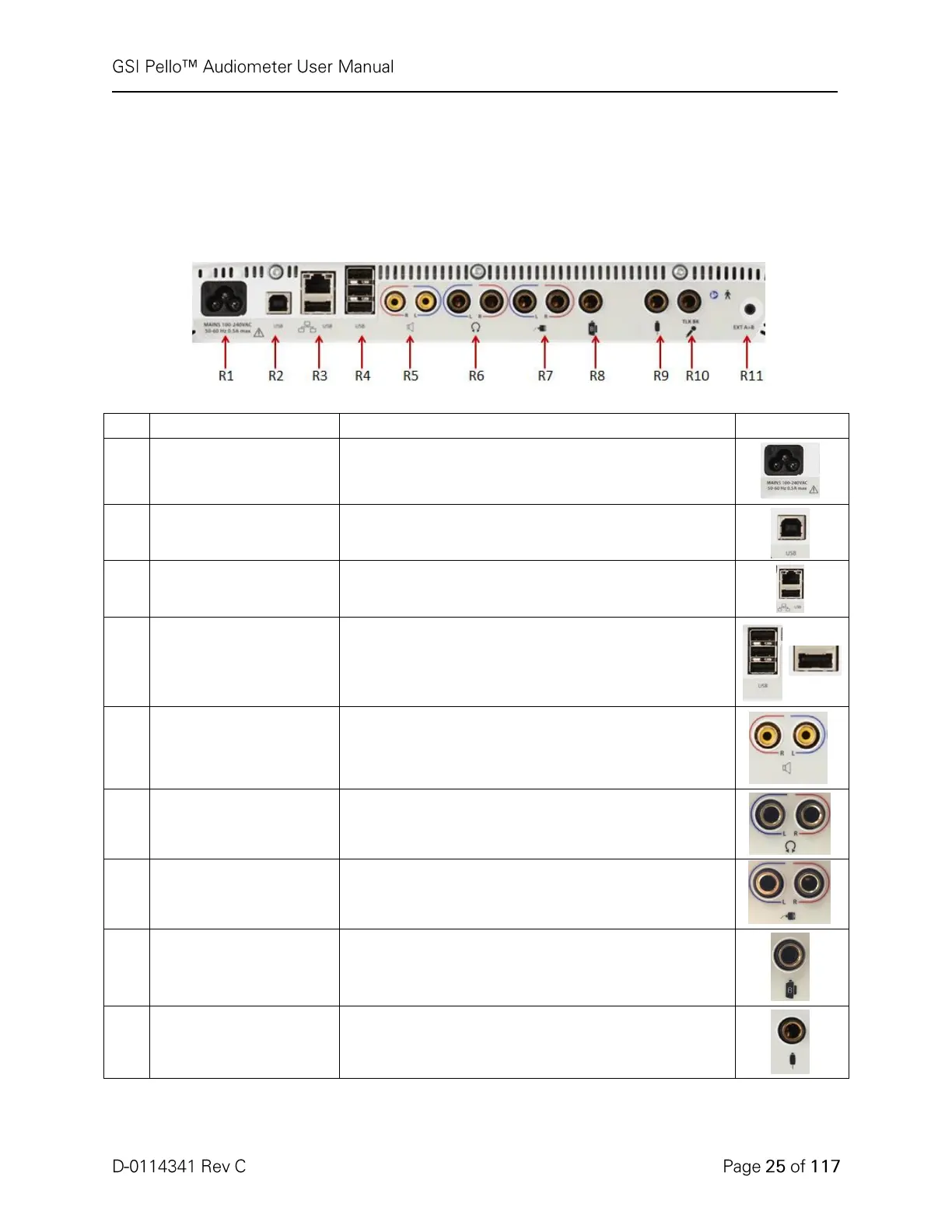

The connectors on the rear panel of the GSI Pello are shown in the following
diagram. The label and jacks are visible by turning the instrument around on a
flat, stable surface.
Connection
Description
Graphic
R1
Mains Power Input
IEC 14
R2
USB Computer
Connection
USB B style connector
R3
LAN Connections
Ethernet Connection RJ45
Currently not supported
R4
USB Connectors
USB
A style plugs
R5
FF Speaker RCA
Connections Output
2 RCA jacks
R6
Left and Right
Headphone Outputs
6.35 mm stereo jack
Left (blue) and Right (red)
R7
Left and Right Insert
Phone Outputs
6.35 mm mono jack
Left (blue) and Right (red)
R8
Bone Vibrator
6.35 mm stereo jack
R9
Patient Response Input
6.35 mm stereo jack
1 hand switch may be used
