PNEG-750-G2 16" Series II Sweep 131' and 135' Diameter 23
5. Assembly
Back Shield Assembly
A. The sweep has been broken down into four (4) different section types: the head, intermediate, tail
and extension sections.
NOTE: Use the Chart below to determine the identification and the order of assembly of the individual
sweep sections.

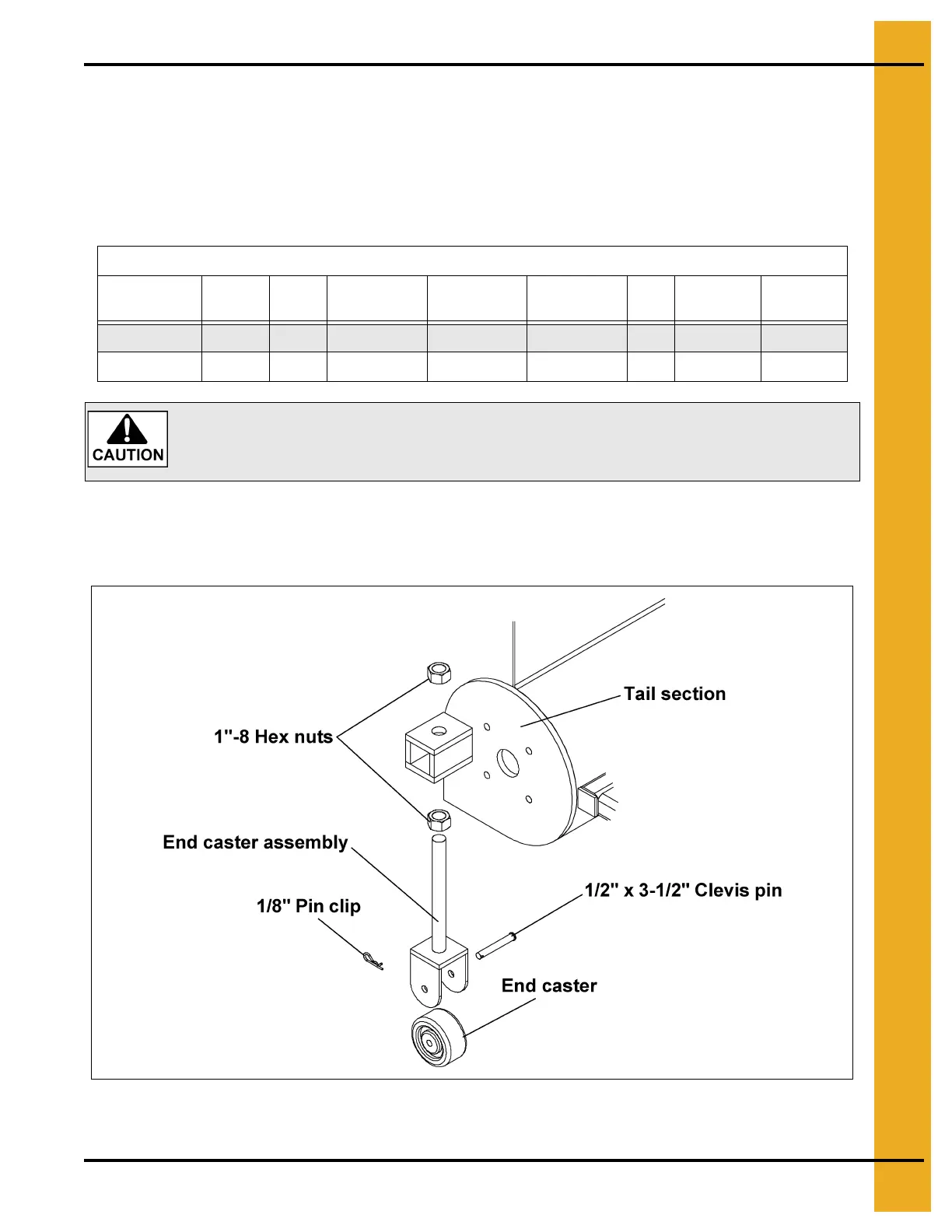

B. (All 16" models with extensions) Assemble the end caster to the end caster assembly using the
1/2" x 3-1/2" clevis pin and 1/8" pin clip as shown in Figure 5A.
C. Attach the end caster assembly to the end of the tail section using two (2) 1"-8 hex nuts.
Figure 5A
16" Series II Sweep Sections
Bin Diameter
# of
Sections
Head Intermediate Intermediate Intermediate Tail Extension Pivot to End
131' 6 136" 144" 144" 60" 144" 138-1/4" 63.90'
135' 6 136" 144" 144" 84" 144" 138-1/4" 65.90'
The section sizes are total length given in inches. The head section has 8"
subtracted from the shield length due to the pivot pipe location.
The 16" tail section has 6-1/4" added to the shield length due to the end shaft length.
To Next Page
