5. Assembly

26 PNEG-750-G2 16" Series II Sweep 131' and 135' Diameter

Hanger Bracket Assembly

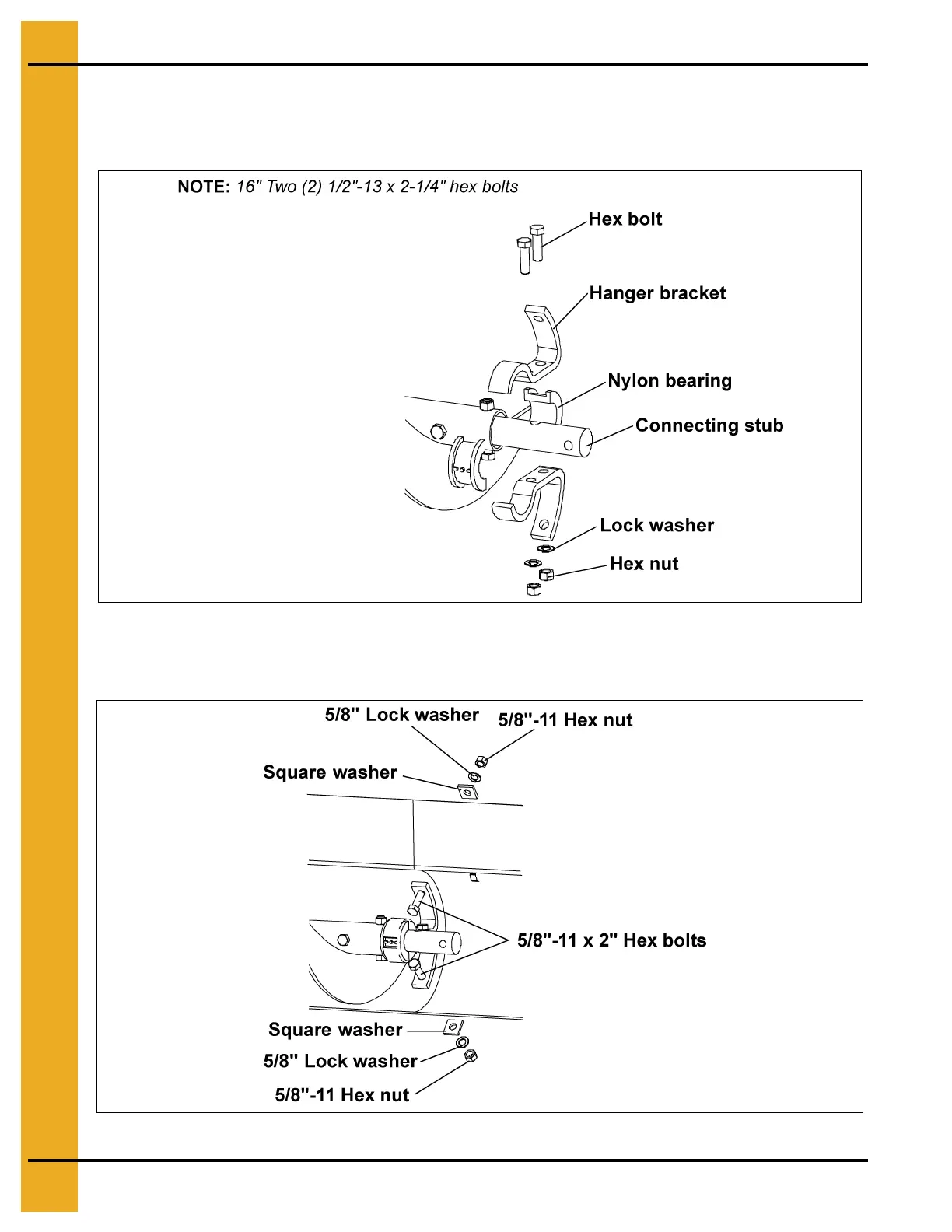

A. Bolt the nylon bearings and hanger brackets to the connecting stubs using hex bolts, lock washers

and hex nuts as shown in Figure 5E.

Figure 5E

B. Bolt the hanger brackets to the back shields using two (2) 5/8"-11 x 2" hex bolts, two (2) square

washers, two (2) lock washers and two (2) hex nuts as shown in Figure 5F.

Figure 5F
