5. Assembly

PNEG-750-G2 16" Series II Sweep 131' and 135' Diameter 31

Key Alignment

A. Place key in keyway on drive shaft.

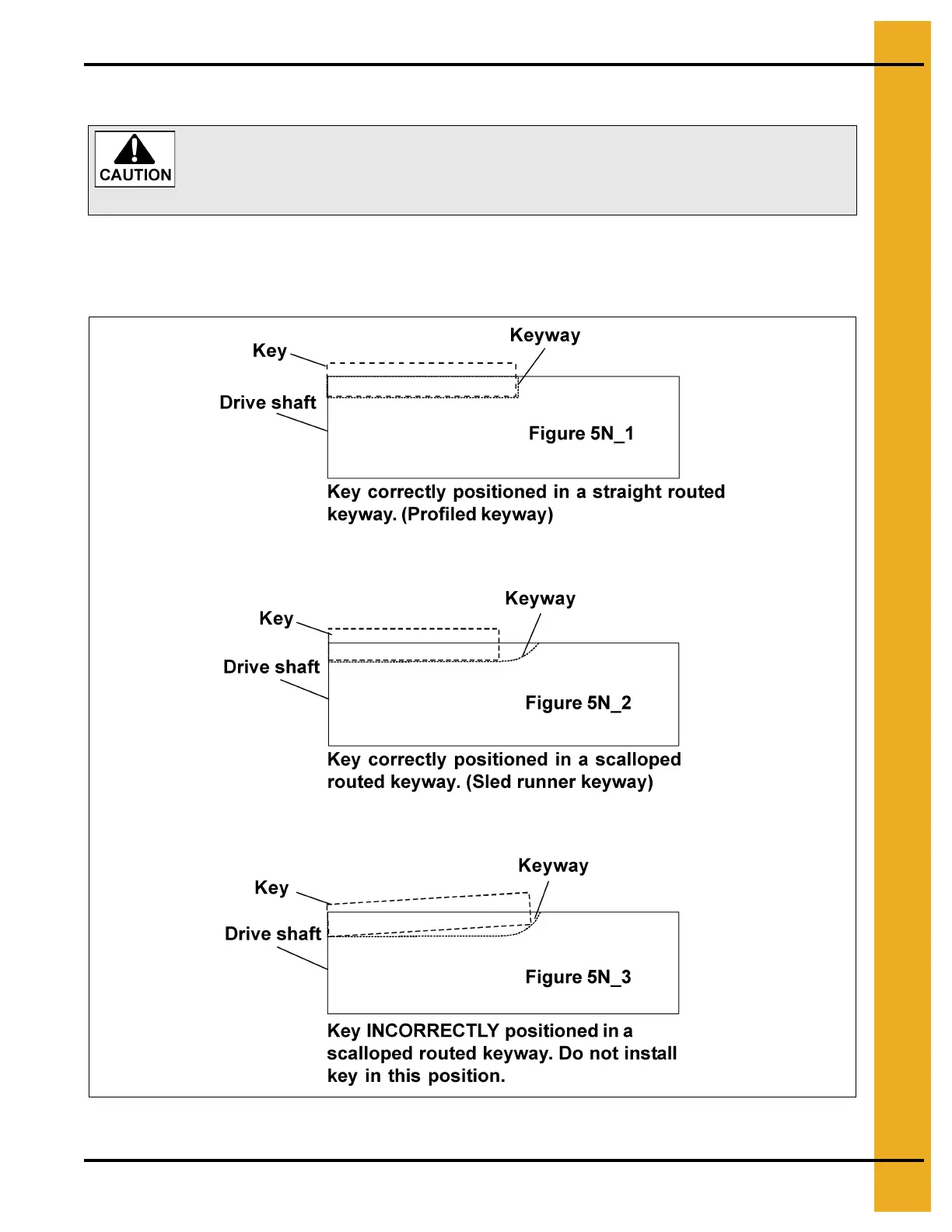

B. Make sure key is flat (parallel to drive shaft) in keyway as in Figure 5N_1 and Figure 5N_2. NOT

like Figure 5N_3.

Figure 5N

All keys should be parallel to the drive shaft. If the key is not straight (parallel) the

gearbox quill sleeve will crack.

THIS TYPE OF DAMAGE IS NOT COVERED BY WARRANTY.
