5. Assembly

28 PNEG-750-G2 16" Series II Sweep 131' and 135' Diameter

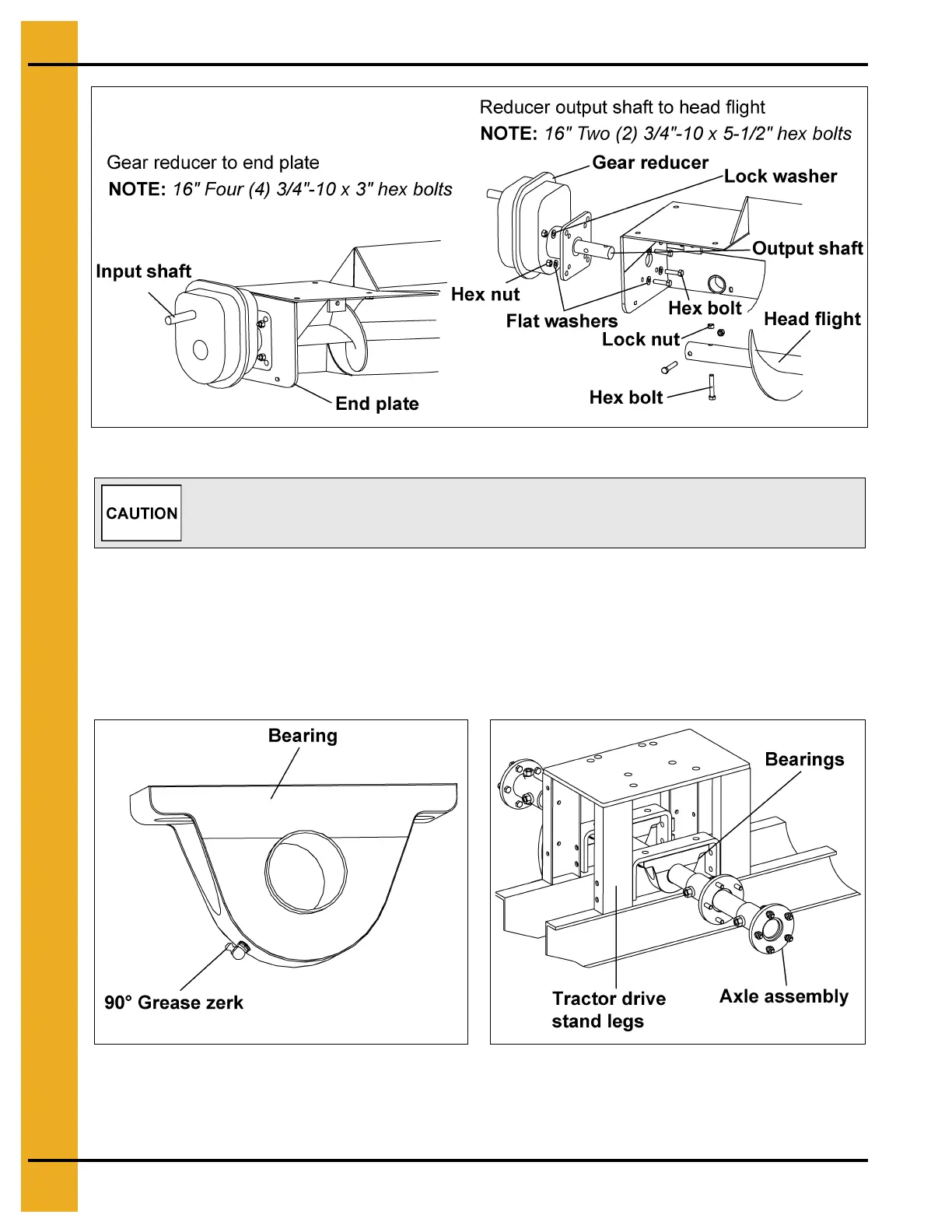

Figure 5H

Drive Axle Assembly and Bearing Support

A. Loosen set screws on bearings.

B. Replace standard grease zerks with 90° grease zerks on both bearings. Make sure the 90° grease

zerk is turned as shown in Figure 5I, so the zerks are accessible from the center of the tractor

drive stand.

Figure 5I

Figure 5J

C. Slide the axle assembly between the legs of the tractor drive stand as shown in Figure 5J.

D. Rotate the pillow block bearings until the bases are facing up. (See Figure 5J.)

The gear reducer is NOT filled with oil from the factory. For gear reducer

specifications and oil fill recommendations, refer to the lubrication section on

Page 65 of this manual.
