5. Assembly

PNEG-750-G2 16" Series II Sweep 131' and 135' Diameter 47

Jack Support Assembly

NOTE: Be sure to use the spanner bushings, supplied with the caster wheels, between the caster and

the caster plate on each side.

All 16" Jack Support (See Figure 5AG below and Figure 5AH on Page 48.)

A. Attach one caster wheel to the jack caster assembly using one 3/4" x 5-1/2" hex bolt, lock washer

and hex nut.

B. Locate the 2" x 2" x 12" tube to the right of each connecting angle and fasten the jack mount

assembly to the sweep frame using one jack mount plate, four (4) 1/2"-13 x 3-3/4" hex bolts, lock

washers and hex nuts.

C. Attach the jack caster assembly to the jack assembly using one pin.

D. Bolt the jack assembly to the jack mount assembly using four (4) 1/2"-13 x 2" hex bolts, lock

washers and hex nuts.

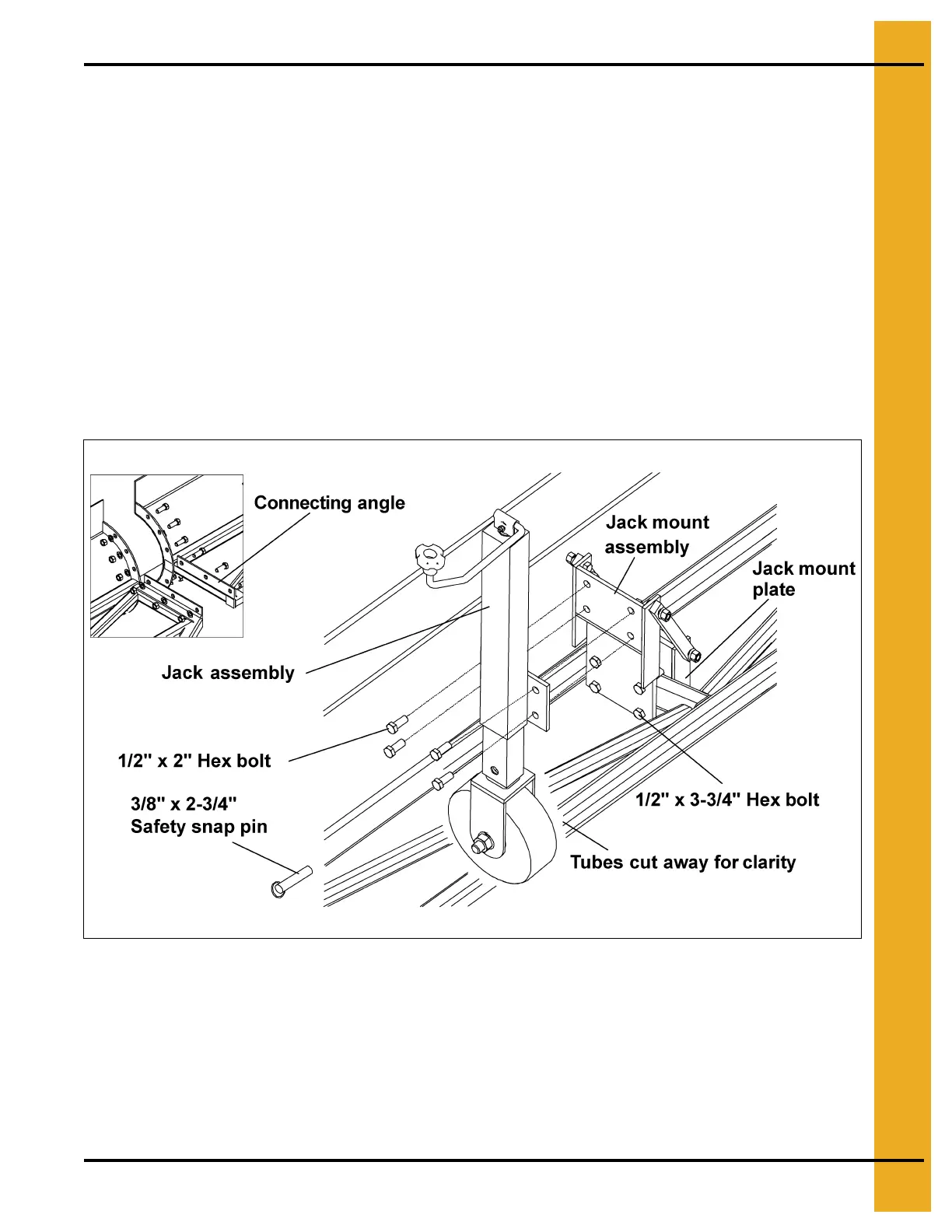

Figure 5AG Current Production Sweep Shown
