5. Assembly

46 PNEG-750-G2 16" Series II Sweep 131' and 135' Diameter

L. Attach the 3/4" rigid conduit assembly to the sweep using the 5/16"-18 x 3/4" studs welded to the

sweep using 1" conduit clamps, lock washers and hex nuts.

M. Run the 14 AWG stranded wires into the drive motor and fasten the 3/4" x 48" liquid-tight flex

conduit to the motor using one 3/4" liquid-tight flex conduit coupling. Some motors may require a

reducer bushing not supplied with the sweep. Connect the leads as required.

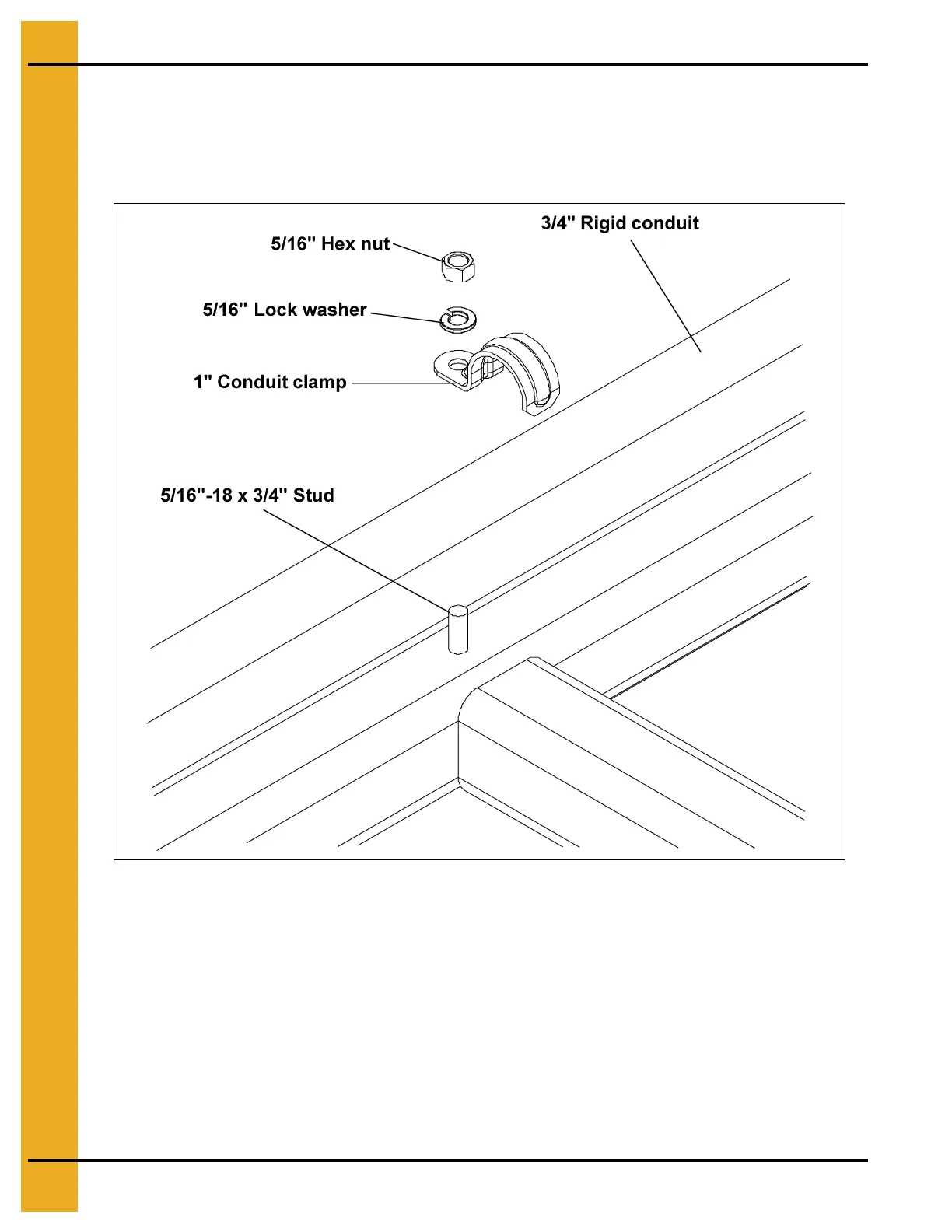

Figure 5AF

N. Run the 10 AWG stranded wires into the auger motor and fasten the 3/4" x 40" liquid-tight flex

conduit to the motor using one 3/4" liquid-tight flex conduit coupling. Some motors may require a

reducer bushing not supplied with the sweep. Connect the leads as required.
