5. Assembly
PNEG-750-G2 16" Series II Sweep 131' and 135' Diameter 43
Electrical Assembly
NOTE: See Chart below for the correct size of conduit with the corresponding sweep size.
A. Place the 3/4" rigid conduits in order starting with the head section and working towards the tail or
extension section.
B. Connect the rigid conduit together using one 3/4" conduit coupling between each piece of conduit.
(See Figure 5AA.)

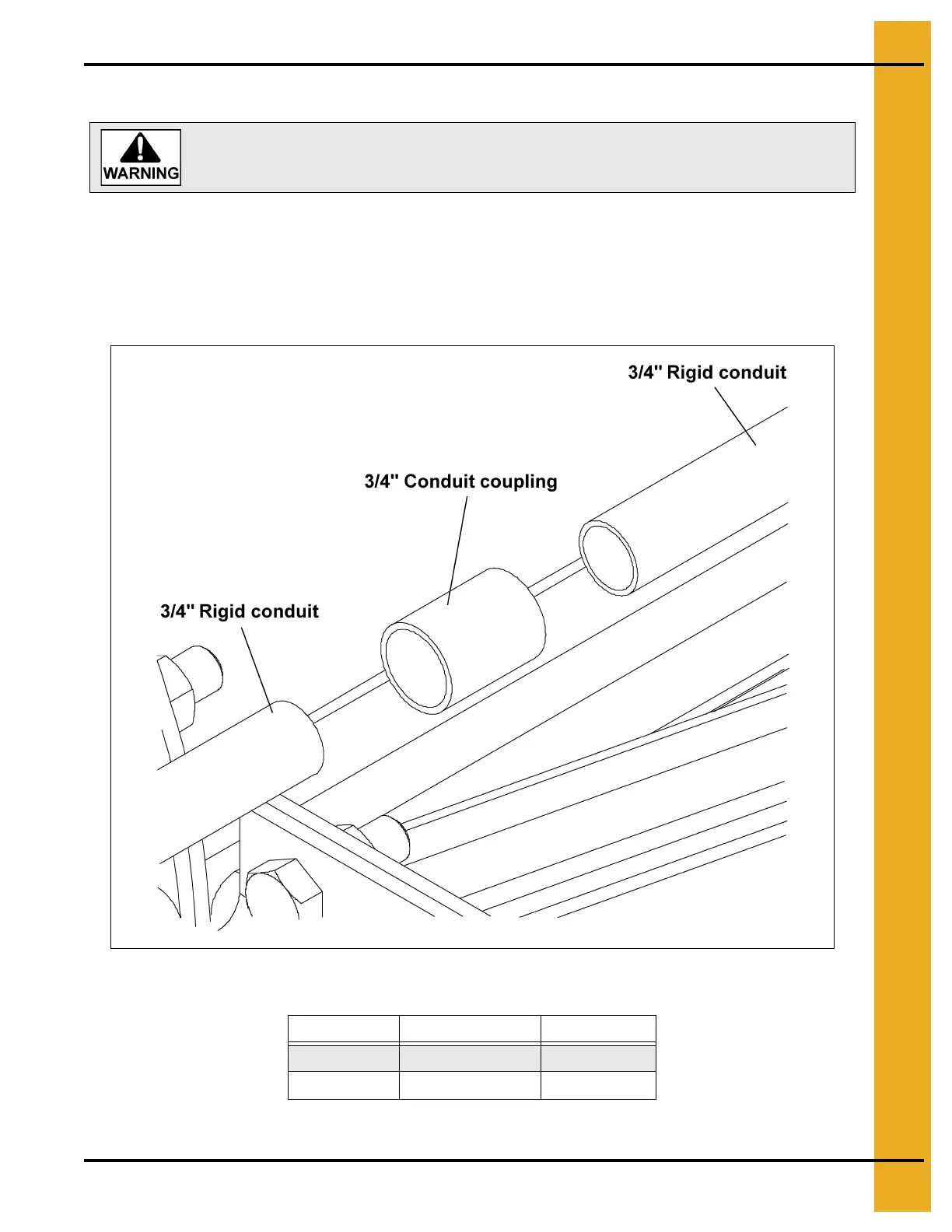

Figure 5AA
Sweep Section Conduit Sizes
Bin Diameter 10' Conduit Pieces Other Pieces
131' 4 1 @ 5'
135' 4 1 @ 7'
All electrical wiring and service work must be performed by a qualified
electrician and must meet all state and local electrical codes.
